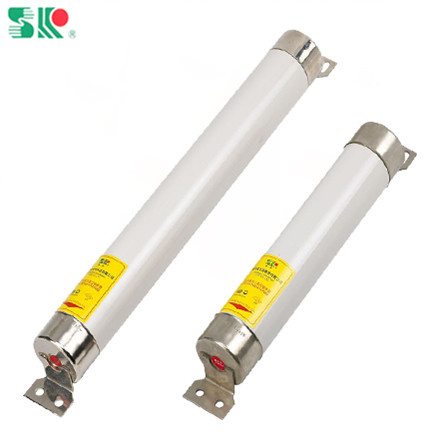

H. V HRC Current-Limiting Fuses Type a/B Transformer Protection

Prod Model:	ADFH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:12kv:	Rated Breaking Current:12ka
Rated Current Of The Fuse Links:6.3,10,1:	Diameter:51mm
Type:	Current Fuse
Breaking Capacity:	High
Usaga:	Electronic
Standard:	IEC282-1, Bs
Shape:	Bus-Bar Installation

Product Description

Applications

H. V current-limiting fuses type A/B is mainly used in AC50Hz, rated voltage 3.6~40.5KV, rated current up to 160A circuit for protection transformers and power equipments from overload and short-circuit. It can also be used with load switch, vacuum contact.
It conforms to IEC282-1, GB15166.2 and BS standard.
Product Feature
A/B type H. V HRC current-limiting fuses is bus-bar installation. The striker parallels to the fuse element made from pure silver. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand. The fuse tube is made from heat resistance, high duty ceramic or expoxy glass.
Product Specification/Models
Foreign model: ADFH
Rated voltage: 12KV
Rated current of the fuse links: 6.3, 10, 16, 20, 25, 31.5A
Rated breaking current: 12KA
Diameter: 51mm
Length: 245mm
Weight: 1.5KG
Other Information
Please offer the followings while ordering:
A, Type and name of products;
B, Rated voltage and rated current;
C, Breaking current and quantity;
D, Please indicate if details of special requests while ordering.
