H01n2-D & H01n2-E Welding Cable, 100volts, VDE 0282-6

Name: H01n2-D & H01n2-E Welding Cable, 100volts, VDE 0282-6
Brand: all-electronics-online.com
SKU: 830252825
Availability: InStock
Rating: 5 (91 reviews)

Price:	US $ 0.1-10/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

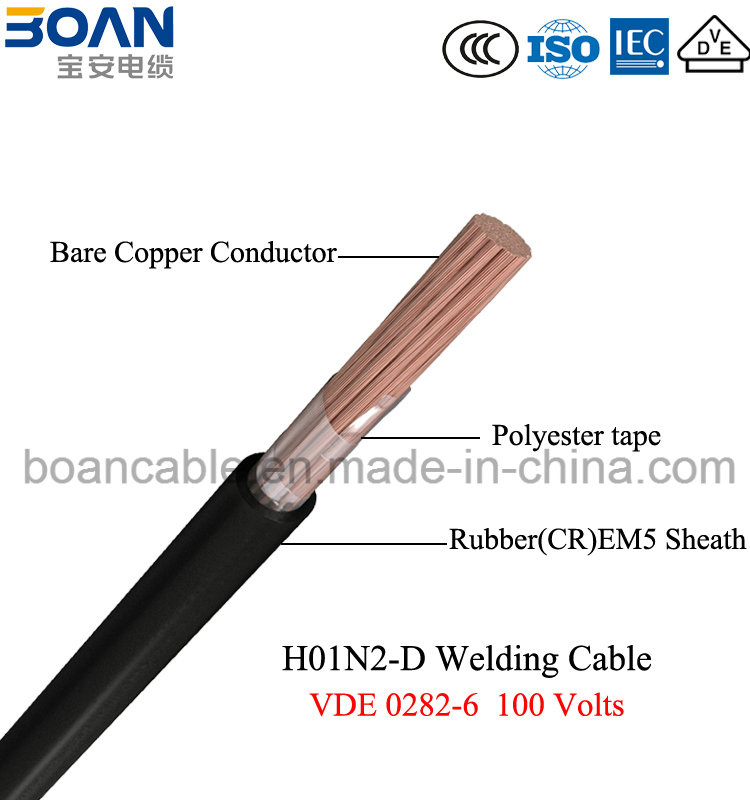

Prod Model:	H01N2-D & H01N2-E
Product Name:	H01n2-D & H01n2-E Welding Cable
Conductor:	Bare Copper
Separator:	Polyester Tape
Sheath:	Rubber
Standard:	VDE 0282-6
Color:	Black
No Of Cores:	1
Size:	10~150mm2
Brand Name:	Dingan or OEM
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Certification:	VDE
Type:	Rubber Sheath
Sheath Material:	Rubber
Insulation Material:	None
Range Of Application:	Connection for Electrical Appliances
Brand:	Boancable

Product Description

Production Description:

These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
Technical Data:

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
1	10	2	9	146	1.91
1	16	2	10	204	1.21
1	25	2	11.5	290	0.78
1	35	2	12.5	384	0.554
1	50	2.2	14.5	535	0.386
1	70	2.4	16.5	716	0.272
1	95	2.6	18.5	943	0.206
1	120	2.8	20.5	1235	0.161
1	150	3	23	1556	0.129

Packings & Shipping:

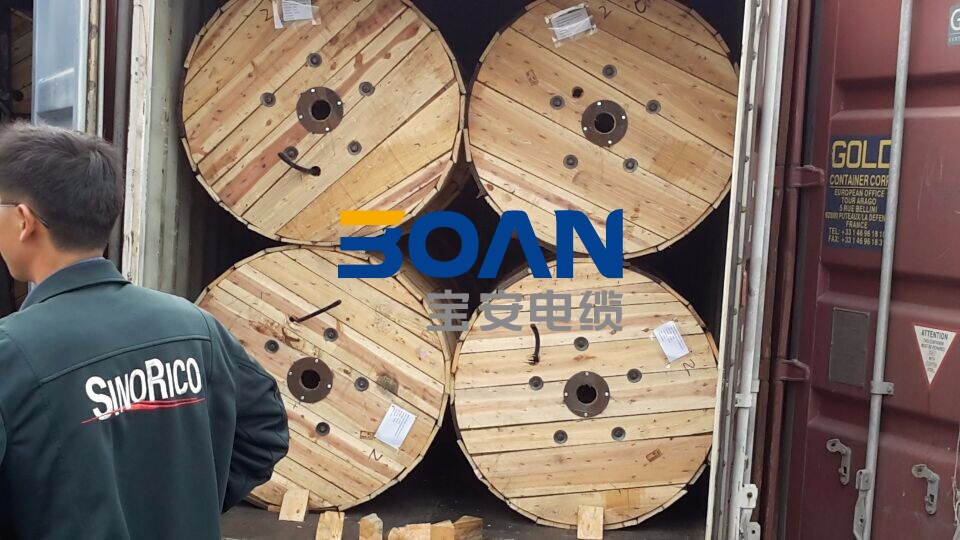

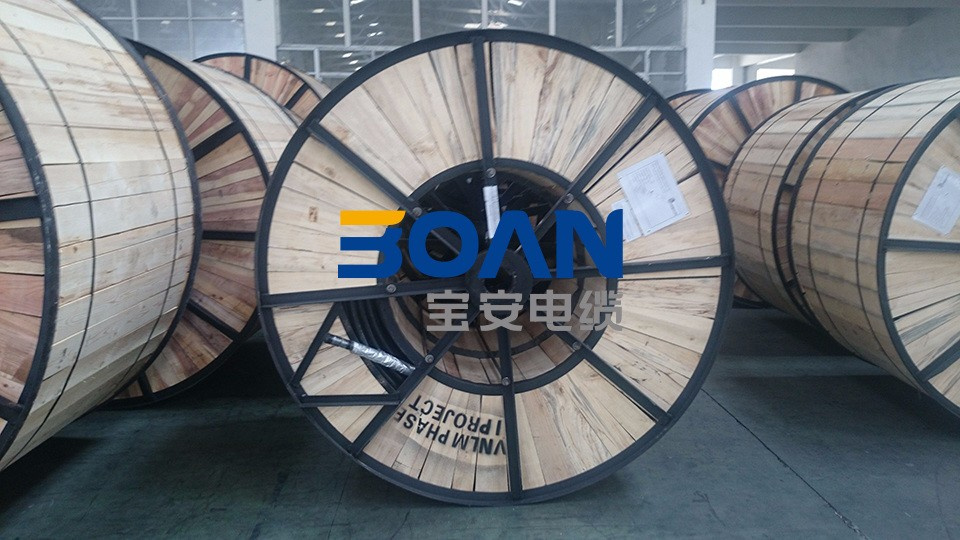

fumigated steel-wooden drum or wooden drum
