| Prod Model: |
h03vv-f |
| Conductor: |
Bare Copper or Tinned Copper |
| Color ID: |
in Accordance with HD402 Standard |
| Application Standard: |
HD21.3 S3,VDE-0281 Part-3,Ce Low Voltage Directive |
| Features: |
Super Fine Conductor,Flexible |
| Conformity Approval: |
RoHS Ce |
| Rated Voltage: |
300/300V |
| Min. Bending Radius(Fixed/Movable): |
Fixed:5*D(Cable Od);Movable:8*D(Cable Od) |
| Norminal Section(mm2): |
2*0.5/2*0.75/3*0.5/3*0.75/4*0.5/4*0.75 |
| Appilcation: |
Electrical Installation and Connections |
| Description: |

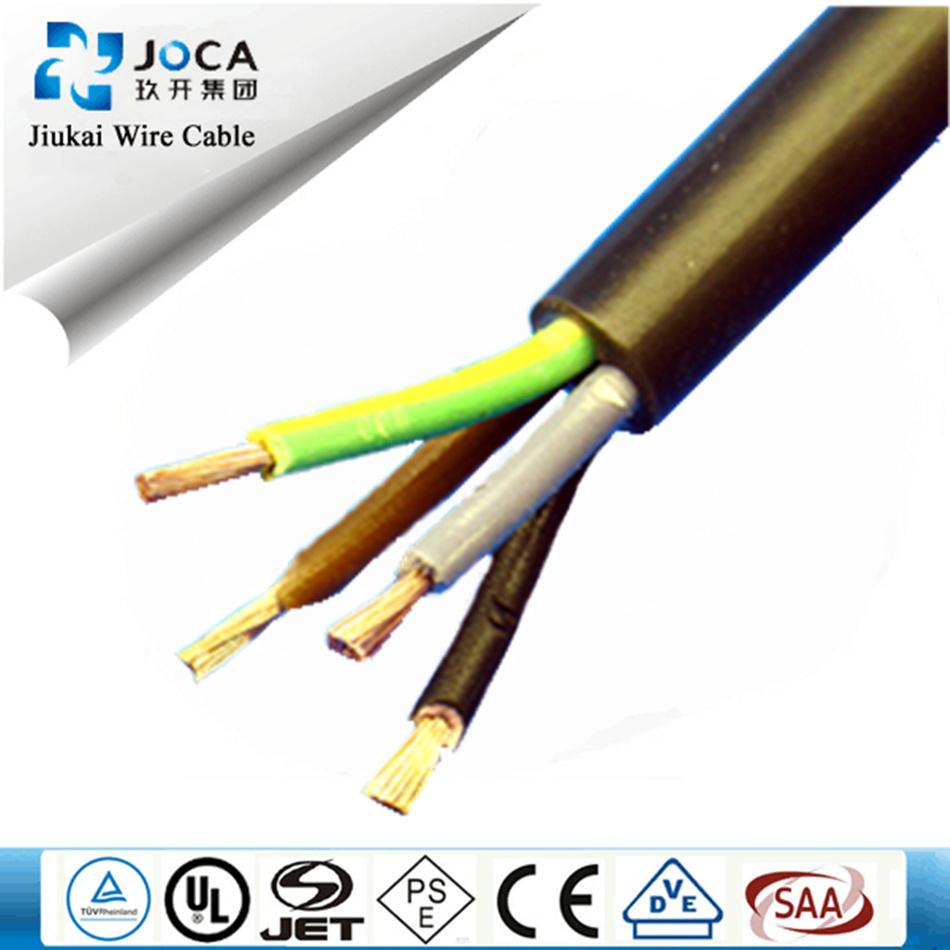

H03VV-F/H03vvh2-F Copper Wire |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Electrical Installation and Connections |
| Range Of Application: |
Wiring in Switchboard of Electrical Appliance, etc |
| Brand: |
Jiukai |
Product Description
Item: h03vv-f/h03vvh2-f copper wire --- Code:8544492100 Product Description & ParametersModel Nominal Section mm2 | Conducor Class | Insulation Thickness mm | Jacket Thickness mm | Max. Ave. OD mm | Cable Weight kg/km | Conductor Max. DC resistane at 20ºC Ω/km | Min. Insu. resistance at 70ºC MΩ.km |
Non electroplating | Electroplating |
H03VV-F 2×0,5
H03VVH2-F 2×0,5 | 5 | 0.5 | 0.6 | 5.9 3.7×5.9 | 40.2 | 39 | 40.1 | 0.011 |
H03VV-F 2×0,75
H03VVH2-F 2×0,75 | 5 | 0.5 | 0.6 | 6.3 3.8×6.3 | 49.6 | 26 | 26.7 | 0.010 |
H03VV-F 3×0,5 | 5 | 0.5 | 0.6 | 6.3 | 47.5 | 39 | 40.1 | 0.011 |
H03VV-F 3×0,75 | 5 | 0.5 | 0.6 | 6.7 | 59.7 | 26 | 26.7 | 0.010 |
H03VV-F 4×0,5 | 5 | 0.5 | 0.6 | 6.9 | 58.0 | 39 | 40.1 | 0.011 |
H03VV-F 4×0,75 | 5 | 0.5 | 0.6 | 7.3 | 72.7 | 26 | 26.7 | 0.010 |
APPLICATION
For external & internal wiring of electrical instrument,power device & automatic device without forcible traction.Without direction,at times for movable wiring.
STRUCTURE
Conductor: Stranded bare or tinned copper according to IEC 227-5, Standards VDE 0281 Part 5
Insulation:PVC/TI1 in accordance with DIN VDE 0281, Part 1. HD21.1
Colour ID: in accordance with HD 402 Standard
STANDARD: HD 21.5 S3, VDE 0281 Part 5, CE Low Voltage Directive, 73/23/EEC and 93/68/EEC
FEATURES & CONFORMITY:Super fine conductor,flexible for small bending angle
Durable for certain external mechanical forces
In accordance with EU coordination standard
Conformity approval: RoHS CE
TECHNICAL PARAMETERS: Rated voltage:300/300V
Test voltage: 2000V
Min. bending radius: Fixed installation: 5D
Movable installation: 8D
Temperature Range: Fixed installation: -20ºC~+70ºC
Movable installation:-5ºC~+70ºC
Packaging & Shipping | Packaging Details: | Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requiremet. |
|---|
| Delivery Detail: | 7-15 days |
|---|
Certification
Related product1: Solar Cable
2: Coaxial Cable
3: Electrical Wire
4: Elevator Cable
5: Submersible Pump Cables
1.Quality control: Our defective products rate is 0.01%
2.Economically priced, exquisitely made
3.Adequate supply capacity, punctual delivery time
4.Best of sales service are providedCompany Information
FAQ Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
2.High temperature resistant,the materials do not metl or flow
3.Good cold flexibility
Q:What is the size of your company?
A:JOCA holding group is an enterprise group, integrated research, manufacture & trade.
The group has he group total registered capital RMB 250 million & occupied area 1800 thousand sqm including building area 1000 thousand sqm.
The group has more than 800 sets nowadays domestic & foreign advanced cable equipment, yearly production capacity RMB 1.6 billion,600 employees and nearly domestic & overseas representative offices or branch companies.
Subsidiary company Shanghai Jiukai Wire & Cable Co., Ltd, Jiukai Communication Technology (Shangshai) Co., Ltd & Wuxi City Qunxing Wire & Cable Co., Ltd are fully invested Wholly owned companies by JOCA group in cable, telecommunication & integrated general wiring industry.
Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.

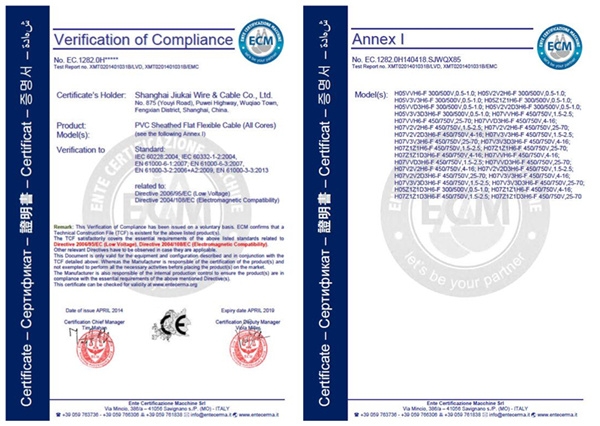

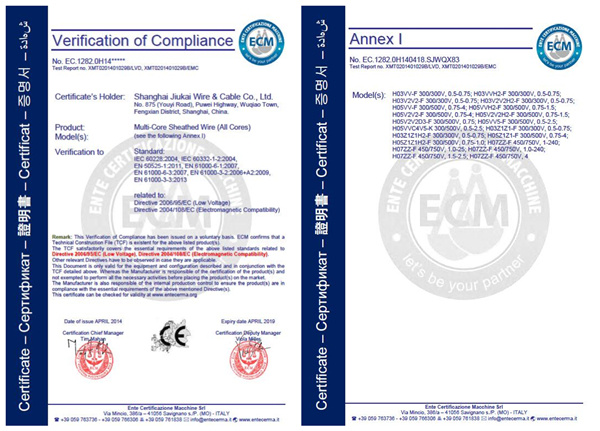

Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE certificate and so on,
And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 " and so on.
Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico
