H03VV-F H03vvh2-F H05VV-F A05VV-F H05vvh2-F H03V2V2-F H03V2V2h2-F H05V2V2-F H05V2V2h-F Wire
| Price: |
US $ 5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
wire |
| Product Name: |
Flexible Electrical Wires Cooper Conductor PVC Ins |
| Voltage: |
300/300V 300/500V 450/750V |
| Insulation Color: |
Red, Black, Yellow, Blue, Green, Grey and So on |
| Standard: |
IEC, UL, BS, VDE, AS/NZS or According to You. |
| Conductor Class: |
Calss 1, Class2, Class 5, Class6 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
House and Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
BV SGS |
| Sheath Material: |
No |
| Brand: |
Rmjt |
Product Description

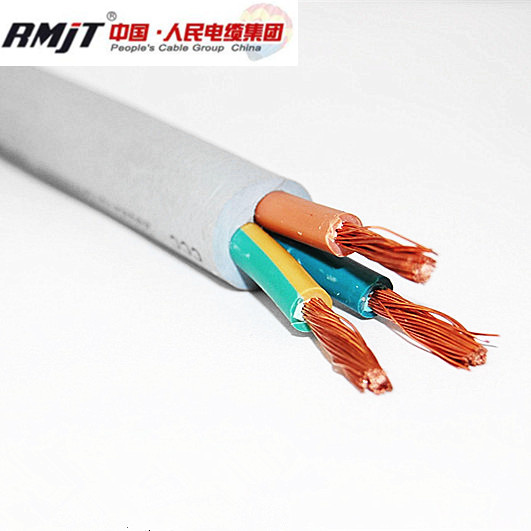

H03VV-F H03VVH2-F H05VV-F A05VV-F H05VVH2-F H03V2V2-F H03V2V2H2-F H05V2V2-F H05V2V2H-F wire
1. Rated voltage: 300/500V, 450/750V
2. Standard: IEC60227-3: 1997, GB/T5023.3-2008
3. Conductor: Stranded tinned copper or bare copper
4. PVC jacket
5. Cross section can produced as per customer request
Electrical Wire
Electrical Wire
Characteristic:
The permissible long-term operating temperature of cable conduct.
Max. Operating temperature: 70° C
Voltage: 450/750V
Electrical Wire
The cable is manufactured according GB/T 5023-2008 JB8734.98 or IEC 227. The cables are suitable to be used in household appliances, electric tools and electric illumination with AC rated voltages(Uo/U) up to and including 450/750V for connecting.
Normal
area
mm2 | Conductor
Structure
mm | Min.insulation
resistance
at 700C
Mohm.km | Thickness of
insulation
mm | Thickness of
sheath
mm | Approx.
overall
diameter
mm |
| 300/300V | 2x0.5 | 28x0.15 | 0.012 | 0.5 | 0.6 | 5.1 |
| 2x0.75 | 24x0.20 | 0.010 | 0.5 | 0.6 | 5.6 |
| 3x0.5 | 28x0.15 | 0.012 | 0.5 | 0.6 | 5.4 |
| 3x0.75 | 24x0.20 | 0.010 | 0.5 | 0.6 | 5.9 |
| 2x0.75 | 24x0.20 | 0.011 | 0.6 | 0.8 | 6.4 |
| 300/500V | 2x1.0 | 32x0.20 | 0.010 | 0.6 | 0.8 | 6.7 |
| 2x1.5 | 48x0.20 | 0.010 | 0.7 | 0.8 | 7.7 |
| 2x2.5 | 77x0.20 | 0.009 | 0.8 | 1.0 | 9.3 |
| 3x0.75 | 24x0.20 | 0.011 | 0.6 | 0.8 | 6.8 |
| 3x1.0 | 32x0.20 | 0.010 | 0.6 | 0.8 | 7.1 |
| 3x1.5 | 48x0.20 | 0.010 | 0.7 | 0.9 | 8.3 |
| 3x2.5 | 77x0.20 | 0.009 | 0.8 | 1.0 | 9.8 |
| 3x4.0 | 56x0.30 | 0.007 | 0.8 | 1.1 | 10.9 |
| 3x6.0 | 84x0.30 | 0.006 | 0.8 | 1.2 | 12.4 |
| 4x1.0 | 32x0.20 | 0.010 | 0.6 | 0.9 | 7.9 |
| 4x1.5 | 48x0.20 | 0.010 | 0.7 | 1.0 | 9.3 |
| 4x2.5 | 77x0.20 | 0.009 | 0.8 | 1.1 | 11.0 |
| 4x4.0 | 56x0.30 | 0.007 | 0.8 | 1.2 | 12.2 |
| 4x6.0 | 84x0.30 | 0.006 | 0.8 | 1.3 | 13.8 |
| 4x10.0 | 84x0.40 | 0.0056 | 1.0 | 1.3 | 18.6 |
| 4x16.0 | 126x0.40 | 0.0046 | 1.0 | 1.4 | 21.4 |
| 5x1.5 | 48x0.20 | 0.010 | 0.7 | 1.1 | 10.3 |
| 5x2.5 | 77x0.20 | 0.009 | 0.8 | 1.2 | 12.2 |
| 5x4.0 | 56x0.30 | 0.007 | 0.8 | 1.2 | 13.4 |
| 5x6.0 | 84x0.30 | 0.006 | 0.8 | 1.3 | 15.2 |
| 5x10.0 | 84x0.40 | 0.0056 | 1.0 | 1.3 | 20.5 |
| 5x16.0 | 126x0.40 | 0.0046 | 1.0 | 1.4 | 23.7 |
Package
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.
About us
We were founded in 2007, located in Gongyi Henan,China. We have 2 factories (Headquarters Factory-produce insulated cables and Zhulin branch-produce bare conductors), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Contact us
Sara Liu
TEL: +86-371-55632825
Mobile +86 13526585094
Watap +86 13526585094
Syp: sara.peoplecable
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
