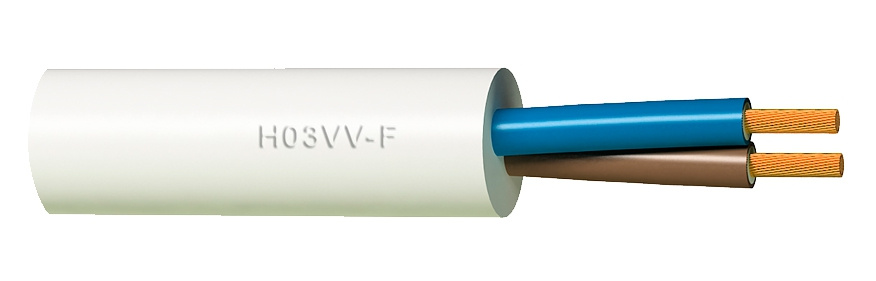

H03VV-F/ H05VV-F Circular Flexible Cable PVC Insulated Wire
| Price: |
US $ 0.55-8.8/Meter |
| Min Order: |
200/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
2*1.5mm2, 4*2.5mm2 |
| Voltage: |
300/300V |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Range Of Application: |
Indoor Small Electrical Instruments |
| Brand: |
Jytop |
Product Description
H03VV-F/ H05vv-f circular flexible PVC Insulated wire1. Standards: GB5023-2008, JB8734-2012, IEC602272. Application: It applies to light household electrical application, electric tools, instrumentation and lighting connection.Suitable for building intercom system, anti-theft alarm system, automation control system, electrical equipment control thread within the transmission wire and cable, electronic equipment, etc 3. Conductor: Copper4. Insulation/sheath: PVC /PVC5. Voltage: 300/300V 450/750V 300/500V6. Type and description | Code Name | No. of core and Nominal conductor area | Number of wires | Nominal diameter of wire | Nominal thickness of insulation | Nominal thickness of outer sheath | Approx. Overall diameter | Max. Conductor DC resistance at 20oC |
| No. x mm2 | No. | mm | mm | mm | mm | Ω/km |
| H03VV-F | 2 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 5 | 39 |
| 2 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 5.5 | 26 |
| 3 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 5.3 | 39 |
| 3 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 5.8 | 26 |
| 4 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 5.8 | 39 |
| 4 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 6.3 | 26 |
| H05VV-F | 2 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 6.3 | 26 |
| 2 x 1.0 | 32 | 0.2 | 0.6 | 0.8 | 6.6 | 19.5 |
| 2 x 1.5 | 30 | 0.25 | 0.7 | 0.8 | 7.5 | 13.3 |
| 2 x 2.5 | 50 | 0.25 | 0.8 | 1 | 9.3 | 7.98 |
| 2 x 4 | 81 | 0.25 | 0.8 | 1.1 | 10.6 | 4.95 |
| 3 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 6.6 | 26 |
| 3 x 1.0 | 32 | 0.2 | 0.6 | 0.8 | 7 | 19.5 |
| 3 x 1.5 | 30 | 0.25 | 0.7 | 0.9 | 8.2 | 13.3 |
| 3 x 2.5 | 50 | 0.25 | 0.8 | 1.1 | 10 | 7.98 |
| 3 x 4 | 81 | 0.25 | 0.8 | 1.2 | 11.4 | 4.95 |
| 4 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 7.2 | 26 |
| 4 x 1.0 | 32 | 0.2 | 0.6 | 0.9 | 7.8 | 19.5 |
| 4 x 1.5 | 30 | 0.25 | 0.7 | 1 | 9.2 | 13.3 |
| 4 x 2.5 | 50 | 0.25 | 0.8 | 1.1 | 11 | 7.98 |
| 4 x 4 | 81 | 0.25 | 0.8 | 1.2 | 12.5 | 4.95 |
| 5 x 0.75 | 24 | 0.2 | 0.6 | 0.9 | 8.1 | 26 |
| 5 x 1.0 | 32 | 0.2 | 0.6 | 0.9 | 8.6 | 19.5 |
| 5 x 1.5 | 30 | 0.25 | 0.7 | 1.1 | 10.2 | 13.3 |
| 5 x 2.5 | 50 | 0.25 | 0.8 | 1.2 | 12.2 | 7.98 |
| 5 x 4 | 81 | 0.25 | 0.8 | 1.4 | 14.1 | 4.95 |
H03vv-f Flexible cable 300V PVC insulation with jacket. f you are interesting in other specification cable, please feel free send inquiry to us, we will give you positive reply in time.| Section | Max. diam. | Insulation | Sheat | Outer | Max. resistance | Cable |
| of conductor | thickness* | thickness* | diameter | at 20°C | weight |
| mm² | mm | mm | mm | mm | ohms/km | kg/k |
| H05VVH2-F |
| 2x0,75 | 0,21 | 0,6 | 0,8 | 3,9X6,2 | 26,0 | 41 |
| 2x1,00 | 0,21 | 0,6 | 0,8 | 4,05X6,5 | 19,5 | 56 |
H05VV-F |
| 2x0,75 | 0,21 | 0,6 | 0,8 | 6,2 | 26,0 | 59 |
| 2x1,00 | 0,21 | 0,6 | 0,8 | 6,5 | 19,5 | 67 |
| 2x1,5 | 0,26 | 0,7 | 0,8 | 7,4 | 13,3 | 91 |
| 2x2,5 | 0,26 | 0,8 | 1,0 | 9,1 | 7,98 | 139 |
| 2x4 | 0,31 | 0,8 | 1,1 | 10,4 | 4,95 | 159 |
| 3x0,75 | 0,21 | 0,6 | 0,8 | 6,55 | 26,0 | 71 |
| 3x1,00 | 0,21 | 0,6 | 0,8 | 6,9 | 19,5 | 83 |
| 3x1,5 | 0,26 | 0,7 | 0,9 | 8,05 | 13,3 | 114 |
| 3x2,5 | 0,26 | 0,8 | 1,1 | 9,85 | 7,98 | 175 |
| 3x4 | 0,31 | 0,8 | 1,2 | 11,25 | 4,95 | 244 |
| 4x0,75 | 0,21 | 0,6 | 0,8 | 7,2 | 26,0 | 88 |
| 4x1,00 | 0,21 | 0,6 | 0,9 | 7,75 | 19,5 | 104 |
| 4x1,5 | 0,26 | 0,7 | 1,0 | 9,0 | 13,3 | 146 |
| 4x2,5 | 0,26 | 0,8 | 1,1 | 10,8 | 7,98 | 217 |
| 4x4 | 0,31 | 0,8 | 1,2 | 12,3 | 4,95 | 305 |
| 5x0,75 | 0,21 | 0,6 | 0,9 | 8,05 | 26,0 | 114 |
| 5x1,00 | 0,21 | 0,6 | 0,9 | 8,45 | 19,5 | 131 |
| 5x1,5 | 0,26 | 0,7 | 1,1 | 10,05 | 13,3 | 188 |
| 5x2,5 | 0,26 | 0,8 | 1,2 | 12,0 | 7,98 | 279 |
| 5x4 | 0,26 | 0,8 | 1,4 | 13,9 | 4,95 | 398 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
