| Prod Model: |
H03VVH2-F |
| Voltage: |
300/500V, 450/750V |
| Color: |
Black, Brown, Grey, Blue, Green/Yellow |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Home Electric Appliance Equipments |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Sansen |
Product Description
Product Description

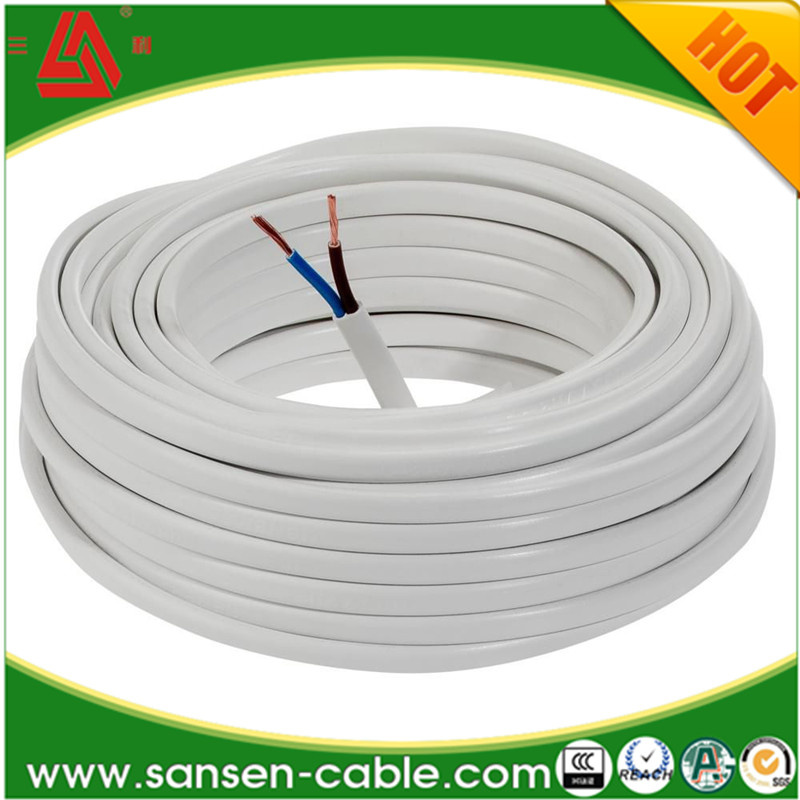

2 cores copper conductor PVC insulated H03VVH2-F electrical wire
Copper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation.The cable can be of flame ratardance,fire resistance and other property.
Technical Information:
1.U0 /U:300/500V,450/750V
2.Standard Applied:IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3.Max.Operating Temperature:70°C,can be 90°C,105°C as per requirent
4.Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5.Insulation:PVC
6.Cores:Single core
7.Range of Nominal cross section:0.75~240sqmm
8.Jacket:Without Jacket
9.Color:Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12.Certification:ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top
| Conductor | Insulation | Maximum
Resistance
At 20ºC
Ω/km | Packing |
Spec
AWG | Conductor
Construction
No./φmm | Diameter
(mm) | Nominal
Thickness
(mm) | Nominal outer
Diameter
(mm) | M/Coils |
| 30 | 7/0.102 | 0.3 | 0.40 | 1.10 | 381 | 610 |
| 28 | 7/0.127 | 0.38 | 0.41 | 1.20 | 239 | 610 |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 150 | 610 |
| 24 | 11/0.16 | 0.61 | 0.40 | 1.40 | 94.2 | 610 |
| 22 | 17/0.16 | 0.76 | 0.42 | 1.60 | 59.4 | 610 |
| 20 | 26/0.16 | 0.94 | 0.43 | 1.80 | 36.7 | 610 |
| 18 | 41/0.16 | 1.18 | 0.46 | 2.10 | 23.2 | 610 |
| 16 | 26/0.254 | 1.49 | 0.46 | 2.40 | 14.6 | 305 |
| 14 | 41/0.254 | 1.88 | 0.41 | 2.7 | 8.96 | 305 |
| 12 | 65/0.254 | 2.36 | 0.42 | 3.2 | 5.64 | 305 |
| 10 | 105/0.254 | 3.00 | 0.45 | 3.9 | 3.546 | 305 |
FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
