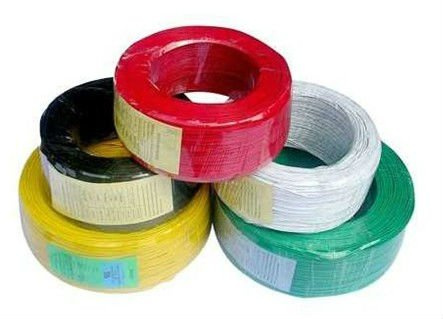

H05V-U Building Wire with DIN VDE Standard
| Price: |
US $ 1/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
H05V-U |
| Voltage Rating: |
0.6/1 Kv |
| Insulation Identification: |
Red, Yellow, Blue, Black, Green |
| Cable Marking: |
as Your Request |
| Applicable Standard: |
ASTM BS CSA IEC DIN |
| Delivery Length: |
Accord with The Request |
| Capacity: |
50000 Coils/Week |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
SABS |
| Application: |
House Use |
| Brand: |
Henan Jiapu |
Product Description
H05V-U Building Wire with DIN VDE Standard
Applications
This product is used as hanging cable, drawing cable and installation for field line, electric appliances and instruments, electronic equipments and automatic devices for electric power, chemical and so on. It is specially soft, easily folded and movable, smooth and ageing resistant, high pulse staring current resistant.
Property
1.A.C rated voltage :0.6/1kV
2.long-term operating temp:-40ºC~105ºC for butyronitrile flat cable
3.the min environmental operating temp:-40ºC fixed installation
4.the laying temp of cable should not be less than 0ºC,it shall be pre-heated if it is less than the min.laying temp.
5.Voltage rating:300/500V,450/750V
6.Flame-retardant Flat Wire and Heat-resistant Flat wire. The product is especially flexible, easily folded and movable, smooth and unbending. Heat, cold, acid and alkali-resistant.
Specification:
300/500V,Copper Conductor PVC Insulated Wire |
| Nominal Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter | Approx. Net Weight |
| mm2 | No. | Diameter | mm | mm | kg/km |
| 1 X 0.5 | 1 | 0.8 | 0.6 | 2.00 | 8.16 |
| 1 X 0.75 | 1 | 0.97 | 0.6 | 2.17 | 10.71 |
| 1 X 1.0 | 1 | 1.13 | 0.6 | 2.33 | 13.48 |
300/500V, Copper Conductor Heat Resistant PVC Insulated Connecting Wire at 90ºC |
| Nominal Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter | Approx. Net Weight |
| mm2 | No. | Diameter | mm | mm | kg/km |
| 1 X 0.5 | 1 | 0.8 | 0.6 | 2.00 | 8.16 |
| 1 X 0.75 | 1 | 0.97 | 0.6 | 2.17 | 10.71 |
| 1 X 1.0 | 1 | 1.13 | 0.6 | 2.33 | 13.48 |
| 1 X 1.5 | 1 | 1.38 | 0.7 | 2.78 | 19.70 |
| 1 X 2.5 | 1 | 1.78 | 0.8 | 3.38 | 31.20 |
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
