H05VV-F PVC Sheath Flexible Cables
| Price: |
US $ 0.1-1/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
H05VV-F |
| Rated Voltage: |
300/500V |
| Standard: |
HD21.5s3 |
| Certificates: |
ISO CCC Ce RoHS |
| Original: |
Shandong China |
| Color: |
Red, Yellow, Blue, Green, Yellow/Green, Black etc |
| MOQ: |
100 Meter |
| Packaging: |

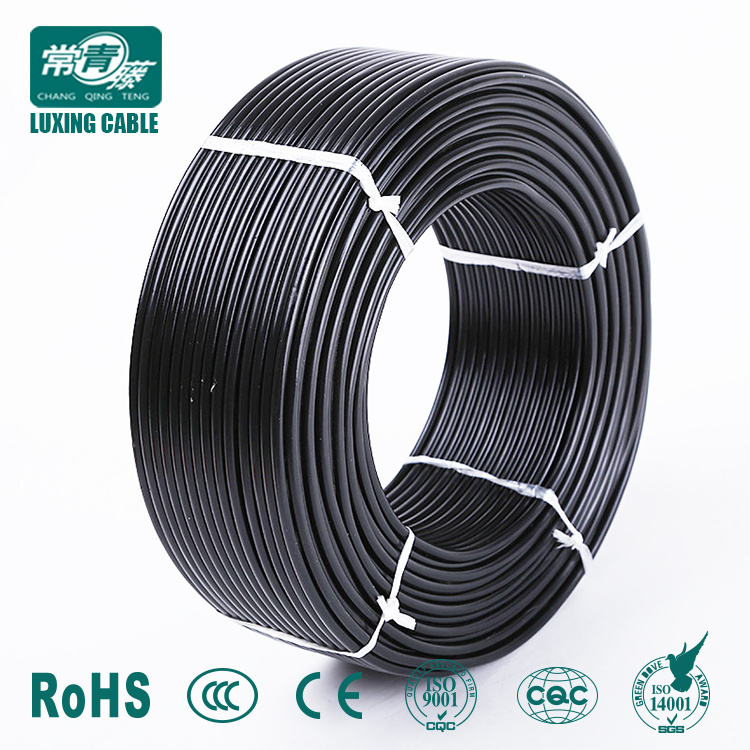

100 Meter Per Roll |
| Shipping: |
by Sea, by Train, by Air |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Conductor Type: |
Flexible Conductor |
| Application: |
Fixed Wire |
| Range Of Application: |
Lsoh / Flame -Retardant |
| Brand: |
Chanong Qing Teng |
Product Description
H05VV-F Flexible CablesApplication: H05VV-F Flexible cable
-These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines,
spin dryers and other appliances, as long as it meets applicable equipment specifications. -These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with
the hot parts of the apparatus or with any other heat source.-Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces

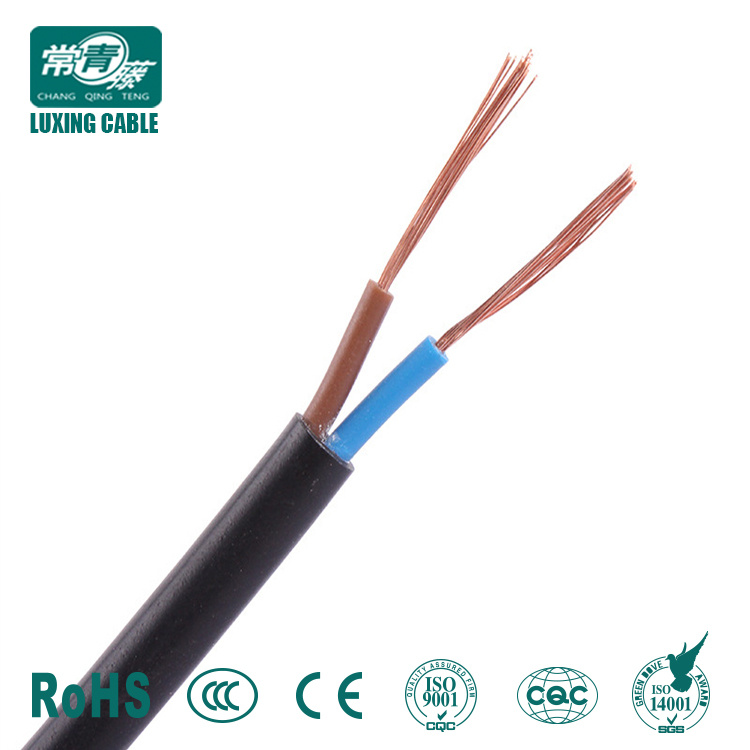

of prefabricated building parts. They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications.Cable structure:-Stranded bare copper conductor according to DIN VDE 0295 and IEC 60228 cl. 5 and HD 383-Special PVC core insulation, cores stranded in layers with optimal lay-lenght-Color coded cores according to DIN VDE 0293, from 7 cores and more black with white numbering Two cores: blue/brown Three cores: Yellow & Green/Blue/Brown Four cores: Yellow & Green/Brown/Black/Grey Five cores: Yellow & Green/Blue/Brown/Black/Gre-Black or white PVC outer jacket according to DIN VDE 0207 part 5-PVC self-extinguishing and flame retardant, according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1Technical characteristics:-PVC control cables according to DIN VDE 0281 part 5 and IEC60227-5, HD 21.5 S3-Temperature range: flexing from -5 °C to +70 °C , fixed from -40 °C to +70 °C-Nominal voltage Uo/U 300/500 V-Test voltage a.c. 2000 V-Max. permissible operating voltage in three-phase and single-phase a.c. system Uo/U 330/550 Vin direct current system Uo/U 495/825 V-Minimum bending radius approx. 7,5 x cable diameterH05VV-F Technical data:| Cores x Cross section area | Insulation thickness | Sheath thickness | External diameter | Conductor resistance at 20 °C | resistance of insulation at 70 °C |
| | nominal | nominal | min-max. | max. | min. |
| mm² | mm | mm | mm | Ω/km | MΩkm |
| 2X0.75 | 0.6 | 0.8 | 5.7-7.2
(3.7X6.0-4.5 X7.2) | 26 | 0.011 |
| 2X1 | 0.6 | 0.8 | 5.9-7.5
(3.9X6.2-4.7 X7.5) | 19.5 | 0.010 |
| 2X1.5 | 0.7 | 0.8 | 6.8-8.6 | 13.3 | 0.010 |
| 2X2.5 | 0.8 | 1.0 | 8.4-10.6 | 1.98 | 0.009 |
| 2X4 | 0.8 | 1.1 | 9.7-12.1 | 4.95 | 0.007 |
| 3X0.75 | 0.6 | 0.8 | 6.0-7.6 | 26 | 0.011 |
| 3X1 | 0.6 | 0.8 | 6.3-8.0 | 19.5 | 0.010 |
| 3X1.5 | 0.7 | 0.9 | 7.4-9.4 | 13.3 | 0.010 |
| 3X2.5 | 0.8 | 1.1 | 9.2-11.4 | 1.98 | 0.009 |
| 3X4 | 0.8 | 1.2 | 10.5-13.1 | 4.95 | 0.007 |
| 4X0.75 | 0.6 | 0.8 | 6.6-8.3 | 26 | 0.011 |
| 4X1 | 0.6 | 0.8 | 7.1-9.0 | 19.5 | 0.010 |
| 4X1.5 | 0.7 | 1.0 | 8.4-10.5 | 13.3 | 0.010 |
| 4X2.5 | 0.8 | 1.1 | 10.1-12.5 | 1.98 | 0.009 |
| 4X4 | 0.8 | 1.2 | 11.5-14.3 | 4.95 | 0.007 |
| 5X0.75 | 0.6 | 0.9 | 7.4-9.3 | 26 | 0.011 |
| 5X1 | 0.6 | 0.9 | 7.8-9.8 | 19.5 | 0.010 |
| 5X1.5 | 0.7 | 1.1 | 9.3-11.6 | 13.3 | 0.010 |
| 5X2.5 | 0.8 | 1.2 | 11.2-13.9 | 1.98 | 0.009 |
| 5X4 | 0.8 | 1.4 | 13.0-16.1 | 4.95 | 0.007 |
| 7X1 | 0.6 | 1.0 | 9.3-12.0 | 19.5 | 0.010 |
| 7X1.5 | 0.7 | 1.2 | 11.0-14.0 | 13.3 | 0.010 |
| 7X2.5 | 0.8 | 1.2 | 13.0-17.0 | 1.98 | 0.009 |
Welcome to Luxing Cable Factory!
Luxing Cable Factory Mainly Produce | 300/500V 450/750V electrical wire | AAC conductor |
| 600/1000V PVC insulated cable | AAAC conductor |
| 600/1000V XLPE insulated cable | ACSR conductor |
| 1.8/3KV to 26/35KV power cable | OPGW |
| Armored underground cable | ABC cable |
| Control cable and instrumentation cables | Rubber cable |

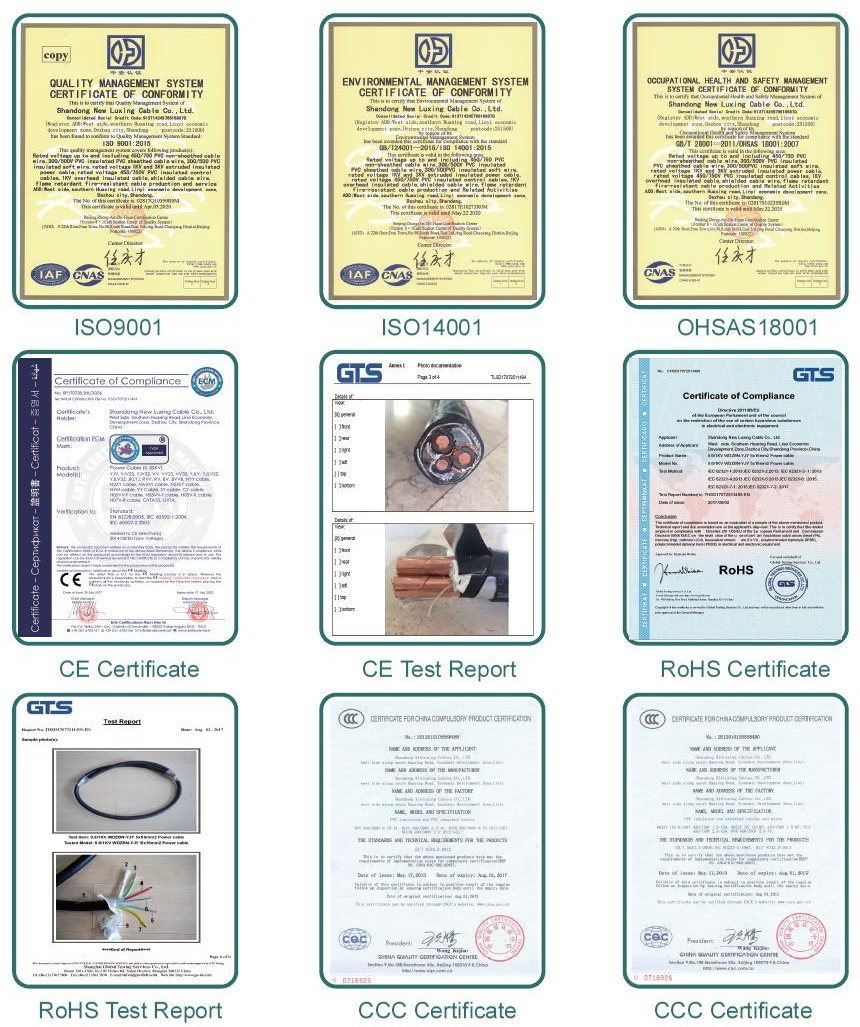

Certificates :ISO CE ROHS
1) About Luxing Cable Factory:
-Shandong New Luxing Cable Co., Ltd established in the year of 1999.
-The headquarter is located in Jinan City, the capital of Shandong province, China.
-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

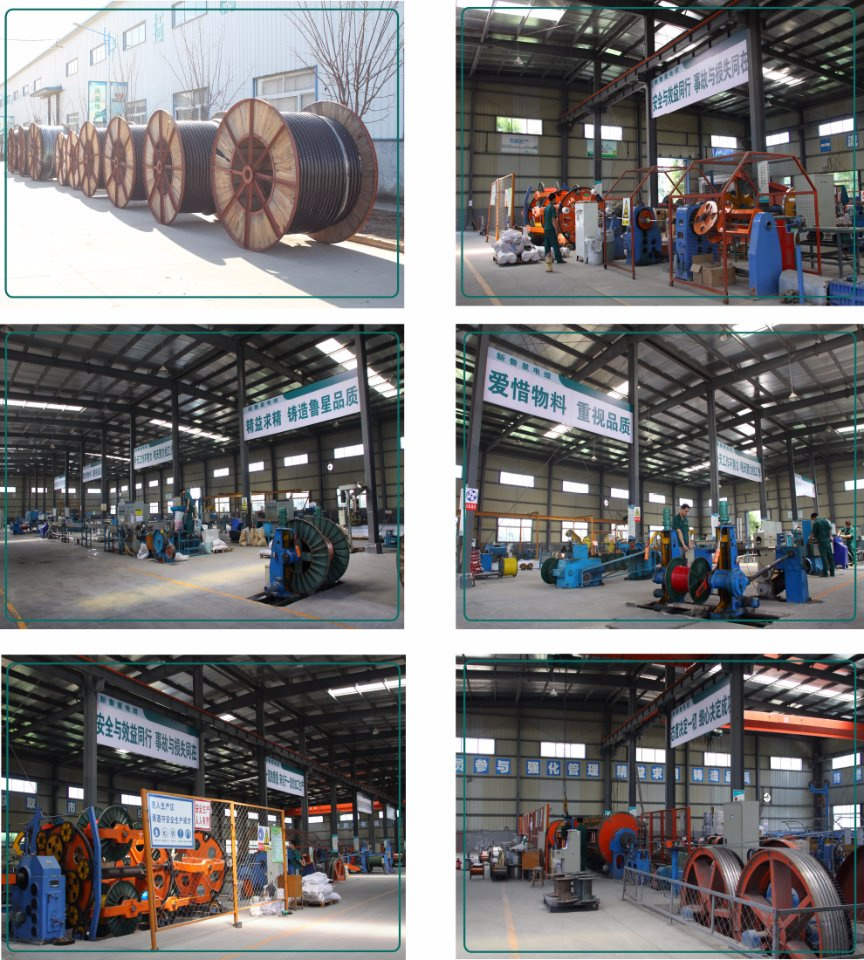

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.
-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.
2)Why Choose Luxing Cable Factory?
-Luxing cable, the designated supplier of China's national grid construction.
-We provid high-quality cables for our clients for more than 18 years.
-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.
-Serve you any time.
3)The Product of Luxing Cable Factory
-300/500V 450/750V electrical wire
-600/1000V PVC insulated cable
-600/1000V XLPE insulated cable
-1.8/3KV to 26/35KV power cable
-Armored underground cable
-Control cable and instrumentation cables
-ABC cable
-AAC conductor
-AAAC conductor
-ACSR conductor
-OPGW
-Rubber cable
4)Product application
-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.
-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.
5)Production Market
-Supply power cables & electrical wire to
South America(Brazil...),
East Asia(Korea...),
Africa(Uganda, South Africa, Zimbabwe...),
Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),
Europe(Czech Republic...) to global market.
-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.
6)Our service
-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.
-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
