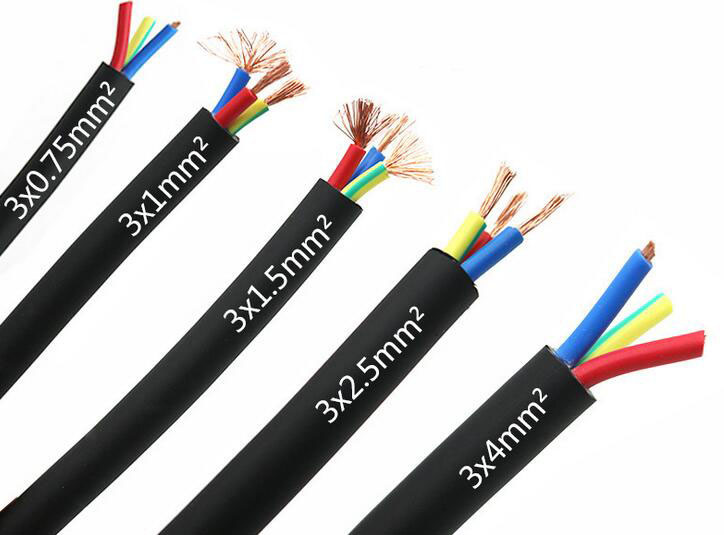

H05VVF Power Cord or Internal Electrical Wiring
| Price: |
US $ 0.5-5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
H05VVF |
| Referred Standard: |
BS6004 IEC60227 |
| No. Of Conductor: |
2-24 |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Flexible Cord |
| Application: |
Electrical Equipments,Luminaires |
| Range Of Application: |
Electrical Equipments,Luminaires |
| Brand: |
Jl |
Product Description
Power cord or internal electrical wiring STANDARD:BS6004 IEC60227
Power cord or internal electrical wiring APPLICATION: Power cord or internal wiring with low mechanical stress for electrical equipments,
machineries, luminaires and other portable appliances use in dry indoor premises
and outdoor application.
Power cord or internal electrical wiring Character:Permanent exposed wiring in humid environment, installation in tray or under plaster.
Maximum temperature range during operation : 70°C
Maximum short circuit temperature (5 Seconds): 160°C
Operating temperature:
-5-70°CMinimum bending radius:
Flexing bending radius: 7.5 x Overall Diameter
Static bending radius:: 4 x Overall Diameter
Power cord or internal electrical wiring Structure:Flexible conductor PVC Insulated PVC sheathed Wire.
Power cord or internal electrical wiring Voltage:300/500V
Power cord or internal electrical wiring Technical Data:Cable Size
(No. of core
x Conductor
Area) | Conductor
Make-up
(No.of wire
x Diameter) | DC Resistance at 20 C
Conductor | DC Resistance at 70 C
Insulation | Current
Carrying
Capacity in
air 30 C | Short
Circuit
Current
1 Sec | Insulation | Sheath
Thickness | Overall
Diamete | Cable
Weight | Standard
Packing
Length |
| mm2 | mm | max.
(ohm/km) | min.
(Mohm.km) | max.
(A) | max.
(A) | nom.
(mm) | nom.
(mm) | approx.
(mm) | approx.
(kg/km) | (meter/
packing) |
| 2 x 0.75 | 24 x 0.20 | 26 | 0.011 | 6 | 86 | 0.6 | 0.8 | 6.2 | 57 | 100/c |
| 2 x 1 | 32 x 0.20 | 19.5 | 0.01 | 10 | 115 | 0.6 | 0.8 | 6.8 | 70 | 100/c |
| 2 x 1.5 | 30 x 0.25 | 13.3 | 0.01 | 15 | 173 | 0.7 | 0.8 | 7.9 | 94 | 100/c |
| 2 x 2.5 | 50 x 0.25 | 7.98 | 0.009 | 20 | 288 | 0.8 | 1 | 9.8 | 146 | 100/c |
| 3 x 0.75 | 24 x 0.20 | 26 | 0.011 | 6 | 86 | 0.6 | 0.8 | 6.5 | 69 | 100/c |
| 3 x 1 | 32 x 0.20 | 19.5 | 0.01 | 10 | 115 | 0.6 | 0.8 | 7.2 | 84 | 100/c |
| 3 x 1.5 | 30 x 0.25 | 13.3 | 0.01 | 15 | 173 | 0.7 | 0.9 | 8.6 | 118 | 100/c |
| 3 x 2.5 | 50 x 0.25 | 7.98 | 0.009 | 20 | 288 | 0.8 | 1.1 | 10.6 | 182 | 100/c |
| 4 x 0.75 | 24 x 0.20 | 26 | 0.011 | 6 | 86 | 0.6 | 0.8 | 7.1 | 84 | 100/c |
| 4 x 1 | 32 x 0.20 | 19.5 | 0.01 | 10 | 115 | 0.6 | 0.9 | 8.1 | 107 | 100/c |
| 4 x 1.5 | 30 x 0.25 | 13.3 | 0.01 | 15 | 173 | 0.7 | 1 | 9.6 | 149 | 100/c |
| 4 x 2.5 | 50 x 0.25 | 7.98 | 0.009 | 20 | 288 | 0.8 | 1.1 | 11.6 | 225 | 100/c |
| 5 x 0.75 | 24 x 0.20 | 26 | 0.011 | 6 | 86 | 0.6 | 0.9 | 8 | 105 | 100/c |
| 5 x 1 | 32 x 0.20 | 19.5 | 0.01 | 10 | 115 | 0.6 | 0.9 | 8.9 | 129 | 100/c |
| 5 x 1.5 | 30 x 0.25 | 13.3 | 0.01 | 15 | 173 | 0.7 | 1.1 | 10.7 | 185 | 100/c |
| 5 x 2.5 | 50 x 0.25 | 7.98 | 0.009 | 20 | 288 | 0.8 | 1.2 | 12.9 | 279 | 100/c |
Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.
The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.
Excellent quality, perfect management and first-class service is our permanent puisuit.
