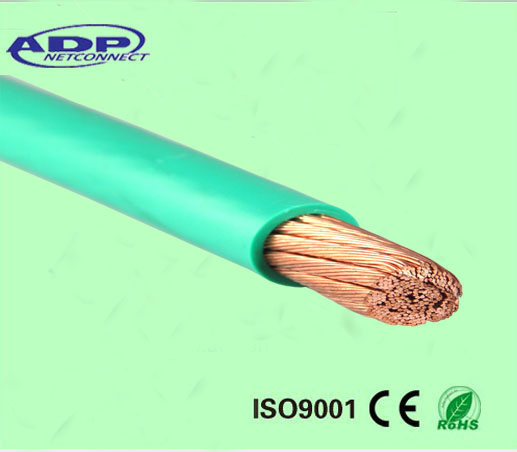

H07V-K 2.5mm Copper Electrical Cable PVC Cable

Prod Model:	H07V-K 0.5mm,0.75mm,1.0mm,1.5mm,4mm,6mm,10mm.
Color:	Black/Blue/Brown/White....
Voltage:	300/450/ 600V/750V
Temperature:	105 Degree
Type:	Insulated
Conductor Type:	Stranded
Application:	Building Cabling Wire
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Customized or Szadp

Product Description

H07V-K 2.5mm Copper Electrical Cable PVC Cable

Intruduction of the Electric Wire PVC Insulated Single Core H07V-U wire:
1, The national certification of qualified manufacturers
2, Standard: GB 5023.1, IEC 60227/228,
3, CE, RoHS, ISO Certificate
4, Meet European standards and can be customized according to customer requirements
5, OEM, ODM cooperation

* Application
H07V-R are harmonized PVC European single-conductor hook-up wires with a solid bare copper core. Ideal for the internal wiring of appliances, apparatus, switchboards and distributor boards or where a solid core is required. Suitable in dry rooms for fixed and flexible laying. May be used for exposed and embedded conduits. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country for MRO replacement of European made equipment wire.
The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances, Like lighting, electronic equipment, instrument and communication equipment with rated voltage 300/500V, 450/750V, The Operating temperature: Allowing the wire of work for long time should not exceed +70 centigrade.

Feature
1.pvc electric cable
2.Hihg Quality Electric Wire Cable
3.CCC CE,ROHS,ISO  Certification

Parameter
1.Voltage Uo/U 450/750V
2.Max. Permissible Continuous Operation Temperature of The Conductor: 70°C
3.The Ambient Temperature Under Installation Should Not Below 0°C
4.Impedance (ohms): 100±2ohm

Specification
Type: BV BVR BVV RV RVV
Voltage:  300/500V 450/750V
Specification: 1.5mm2-16mm2 1-5 cores etc
Length: 100M 200M 300M 500M

Application
PVC cables wire are suitable for household electrical appliances, small electric power tools,instruments and apparatuses and lighting devices,  AC rated voltage up to and including 300/500V, which is used for connecting power line.

Products list and parameter:

No.	Size	Specification	Length per roll
PVC insulated non-sheathed copper wires BV (450-750 Voltage)
1	1.5 mm2	1×1.38 mm2	100 m
2	2.5 mm2	1×1.78 mm2	100 m
3	4 mm2	1×2.25 mm2	100 m
4	6 mm2	1×2.76 mm2	100 m
5	10 mm2	7×1.35 mm2	100 m
6	16 mm2	7×1.70 mm2	100 m
7	25 mm2	7×2.14 mm2	100 m
PVC insulated PVC/XLPE sheathed Twin cables with/without earth BVVB (300-500 Voltage)
8	2×1 +1 mm2	2×1.13 +1.13 mm2	100 m
9	2×1.5 +1 mm2	2×1.38 +1.13 mm2	100 m
10	2×2.5 +1.5 mm2	2×1.78 +1.38 mm2	100 m
11	2×4 +2.5 mm2	2×2.25 +1.78 mm2	100 m
12	2×6 +4 mm2	2×2.76 +2.25 mm2	100 m
13	2×10+4 mm2	2×7×1.35 +2.25 mm2	100 m
14	2×16+6 mm2	2×7×1.70 +2.76 mm2	100 m
PVC insulated non-sheathed Multi flexible wires BVR (450-750 Voltage)
15	1.5 mm2	7×0.52 mm2	100 m
16	2.5 mm2	19×0.41 mm2	100 m
17	4 mm2	19×0.52 mm2	100 m
18	6 mm2	19×0.63 mm2	100 m
19	10 mm2	49×0.52 mm2	100 m
20	16 mm2	49×0.63 mm2	100 m



PVC insulated PVC/XLPE sheathed copper cables (Lower than 1000 Voltage)
No.	Size	Specification
21	3×2.5 mm2	3×1.78 mm2
22	3×4 mm2	3×2.25 mm2
23	3×4+1×2.5 mm2	3×2.25+1×1.78 mm2
24	3×4+2×2.5 mm2	3×2.25+2×1.78 mm2
25	3×6 mm2	3×2.76 mm2
26	3×6+1×4 mm2	3×2.76+1×2.25 mm2
27	3×6+2×4 mm2	3×2.76+2×2.25 mm2
28	3×10 mm2	3×7×1.35 mm2
29	3×10+1×6 mm2	3×7×1.35+1×2.76 mm2
30	3×10+2×6 mm2	3×7×1.35+2×2.76 mm2
31	3×16 mm2	3×7×1.70 mm2
32	3×16+1×10 mm2	3×7×1.70+1×7×1.35 mm2
33	3×16+2×10 mm2	3×7×1.70+2×7×1.35 mm2
34	3×25+1×16 mm2	3×7×2.14+1×7×1.70 mm2
35	3×25+2×16 mm2	3×7×2.14+2×7×1.70 mm2
36	3×35+1×16 mm2	3×7×2.52+1×7×1.70 mm2
37	3×35+2×16 mm2	3×7×2.52+2×7×1.70 mm2
38	3×50+1×25 mm2	3×10×2.52+1×7×2.14 mm2
39	3×50+2×25 mm2	3×10×2.52+2×7×2.14 mm2
40	3×70+1×35 mm2	3×14×2.52+1×7×2.52 mm

41	3×70+2×35 mm2	3×14×2.52+2×7×2.52 mm2
42	3×95+1×50 mm2	3×19×2.52+1×10×2.52 mm2
43	3×95+2×50 mm2	3×19×2.52+2×10×2.52 mm2
