H07V2-K Flexible PVC Insulted Cable and Wire

Name: H07V2-K Flexible PVC Insulted Cable and Wire
Brand: all-electronics-online.com
SKU: 832250685
Availability: InStock
Rating: 5 (30 reviews)

Price:	US $ 0.2-5/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	H05V2-K
Referred Standard:	BS6004 IEC60227
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Conductor Type:	Flexible
Application:	Inside Apparatus,Switch and Distributors Boards
Sheath Material:	N/a
Range Of Application:	Inside Apparatus,Switch and Distributors Boards
Brand:	Jl

Product Description

Flexible PVC insulted cable and wire STANDARD:
BS6004 IEC60227
Flexible PVC insulted cable and wire APPLICATION:

These special heat-resistant flexible single-conductor hook-up wires are ideal for use in power current
installation, switch cabinets, motors and transformers which are subject to direct contact with high
temperature and electrical equipments such as lighting and heating apparatus.

Flexible PVC insulted cable and wire Character:
Working Voltage:450/750V
Test voltage: 2000 V
Maximum temperature range during operation : 90°C
Maximum short circuit temperature (5 Seconds): 160°C
Operating temperature: 5-90°C
Bending radius: 10-15x Overall Diameter
Insulation resistance:20MΩ x km

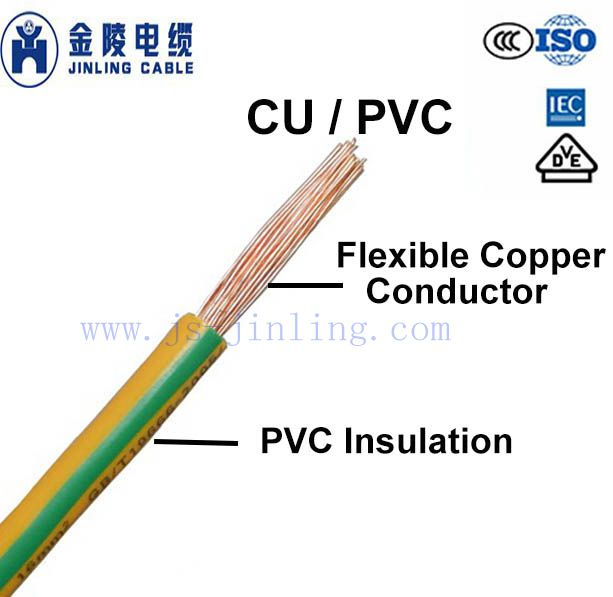

Flexible PVC insulted cable and wire Structure:
Flexible Copper conductor PVC Insulated Wire.
Flexible PVC insulted cable and wire Technical Data:

No. of core x Conductor Area	Class of conductor	Insulation Thickness	Overall Diamete	Cable Weight	DC Resistance at 20 C Conductor		DC Resistance at 90 C Insulation	Standard Packing Length
No. of core x Conductor Area	Class of conductor	Insulation Thickness	Overall Diamete	Cable Weight	Plain copper	Tinned copper	DC Resistance at 90 C Insulation	Standard Packing Length
mm2		nom. (mm)	approx. (mm)	approx. (kg/km)	max. (ohm/km)	max. (ohm/km)	min. (Mohm.km)	(meter/ packing)
1 x 1.5	5	0,7	3.4	20	13.3	13.7	0.01	100/c
1 x 2.5	5	0,8	4.1	33.3	7.98	8.21	0.009	100/c
1 x 4	5	0,8	4.8	48.3	4.95	5.09	0.007	100/c
1 x 6	5	0,8	5.3	68.5	3.3	3.39	0.006	100/c
1 x 10	5	1,0	6.8	115	1.91	1.95	0.0056	100/c
1 x 16	5	1,0	8.1	170	1.21	1.24	0.0046	100/c
1 x 25	5	1,2	10.2	270	0.78	0.795	0.0044	100/c
1 x 35	5	1,2	11.7	367	0.554	0.565	0.0038	100/c
1 x 50	5	1,4	13.9	520	0.386	0.393	0.0037	100/c
1 x 70	5	1,4	16	729	0.272	0.277	0.0032	100/c
1 x 95	5	1,6	18.2	962	0.206	0.21	0.0032	100/c
1 x 120	5	1,6	20.2	1235	0.161	0.164	0.0029	100/c
1 x 150	5	1,8	22.5	1523	0.129	0.132	0.0029	100/c
1 x 185	5	2,0	24.9	1850	0.106	0.108	0.0029	100/c
1 x 240	5	2,2	28.4	2430	0.0801	0.0817	0.0028	100/c

Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.

The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.

Excellent quality, perfect management and first-class service is our permanent puisuit.
