H155 PE, 50ohm Coaxial Cable with Stranded Sc Conductor

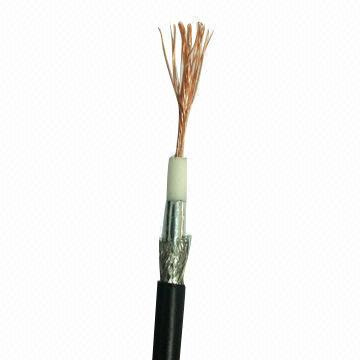

Name: H155 PE, 50ohm Coaxial Cable with Stranded Sc Conductor
Brand: all-electronics-online.com
SKU: 724377595
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Soft Annealed Copper
Foil:	Al-Pet-Al
Braid:	Tinned Copper
Jacket:	PE
Application:	Coaxial Cable
Cover Material:	PE
Certification:	UL
Conductor Material:	Soft Annealed Copper

Product Description

1 Inner conductor Soft annealed copper
2 Dielectric Gas injected PE
3.1 Foil AL-PET-AL
3.2 Braid Tinned copper
4 Sheath PE (black)

1.Inner conductor diameter:19 X 0.28 mm
2.Dielectric diameter:3.9 mm
3.Outer conductor diameter screen:4.5 mm
4.Sheath diameter:5.4 mm

Electrical characteristics

Mean characteristic impedance:50 Ω
DC loop resistance:≤32 ohm/km
DC resistance inner conductor:≤15 ohm/km
DC resistance outer conductor:≤17 ohm/km
Capacitance:82 pF/m
Velocity ratio:0.81
Screening efficiency 30-1000 MHz:≥75 dB
Return loss at 5-470 MHz:≥22 dB* 470-862 MHz:≥16 dB*
Attenuation:
10 MHz:3.0 dB/100m
50 MHz:6.5 dB/100m
100 MHz:9.3 dB/100m
230 MHz:14.2 dB/100m
300 MHz:16.3 dB/100m
400 MHz:19.0 dB/100m
470 MHz:20.7 dB/100m
860 MHz:28.5 dB/100m
1000 MHz:30.9 dB/100m
1350 MHz:36.4 dB/100m
1750 MHz:41.9 dB/100m
2050 MHz:45.8 dB/100m
