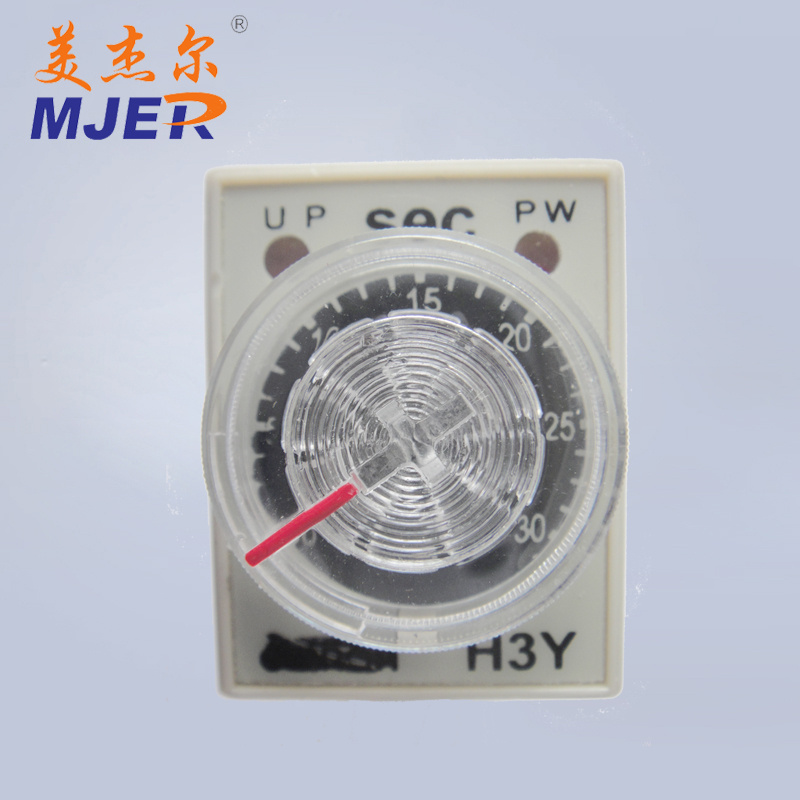

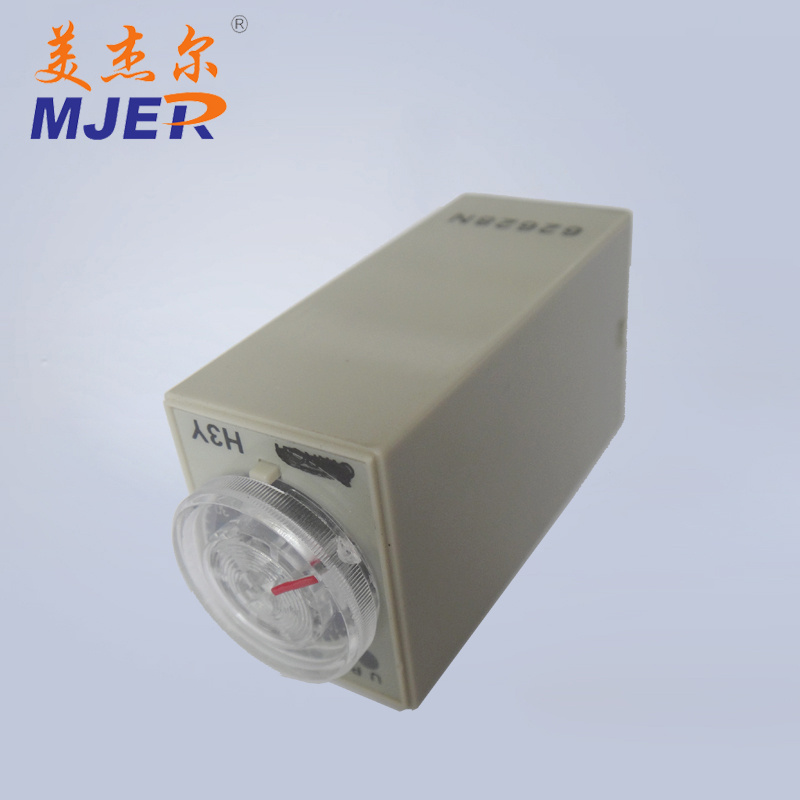

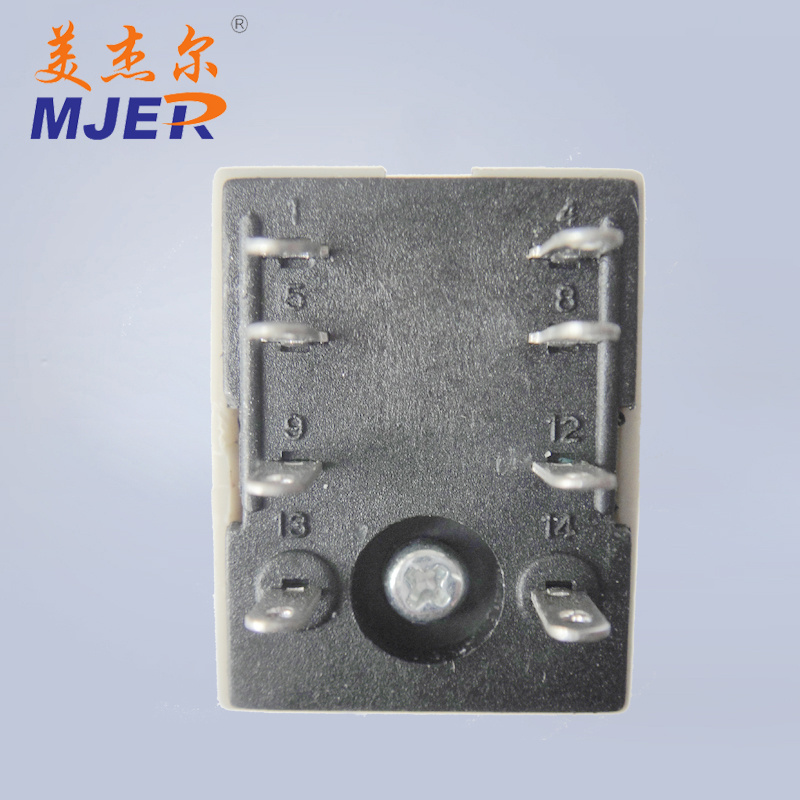

H3y-2 Mejr AC 220/250VAC Resistive Delay Time Delay Relay/Timer Relay

Name: H3y-2 Mejr AC 220/250VAC Resistive Delay Time Delay Relay/Timer Relay
Brand: all-electronics-online.com
SKU: 814030155
Availability: InStock
Rating: 4.8 (25 reviews)

Price:	US $ 4-5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H3Y-2
OEM:	Yes
Supply Voltage:	12/24VDC,24/110/220/380V
MOQ:	5PCS
Lead Time:	15days
Guarantee:	Over 2 Years

Product Description

omron timer relay h3y-2 Time Delay Relays timer relay 12 volt omron relay

Specification:

Model	H3Y-2(5A) / H3Y-4(3A)
Voltage	DC(V): 12, 24 AC(V): 12, 24, 110, 220, 240, 50/60Hz
Mechanical Life	5000000 times
Electrical Life	100000 times
Reset Time	0.2 sec max
Ambient Temperature	-10~55
Ambient Huminity	48%~85%RH
Consumed Power	3VA

Time range:

Unit	Time range
Sec	1,3,5,10,30,60,120
Min	3,5,10,30,60
HR	3

AH2-Y time relay time delay relay 12 volt relay 12v 12 volt dc timer switch

Dimensions(mm)88Hx58Wx68D
Socket type:PF083A
DC12V-48V AC12V-380V 50HZ
Different timing range on requiremt
Flush type mounting Time Delay Relay AH2-Y

Specification Model			AH2-N		AH2-Y
Dimension			61H × 49W × 70D		88H × 58W × 68D
Mounting & Socket		Surface(-N)	PF083A PS-08		PF083A
		Flush(-Y)	P2CF-08		US-08 P3G-08
Full Timing Range			SEC: 1,3,6,12,30,60
			MIN: 3,6,12,30,60
			HR: 3,6,12,24
Rated Voltage (V)			AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating			ON-UP Two Indicator Lamp
O/P Contact	Model		AH2-N1/ AH2-Y1	AH2-N2/ AH2-Y2		AH2-N/ AH2-Y
	Time Limit 1C		5A			5A
	Time Limit 2C			5A
	Instantaneous 1C					5A
Life	Mechanical		5 × 106 Times
	Electrical		105 Times
Accuracy	Repeat Error		±1% max
	Setting Error		±10% max
	Voltage Error		±1% max
	Temp Error		±2% max
Reset Time			0.1 sec max
Consumed Power			3VA
Ambient temperature			-10oC~+55oC
Ambient Huminity			48~85% RH
Weight			220g

Specification

Classification			Digital Timer	Digital Timer	Timer
Specification Model			ASY-2D	ASY-3D	H3Y-(ST6P)
Dimension			88H × 58W × 68D	88H × 58W × 68D	28H × 21W × 52.6D
Mounting & Socket		Surface(-N)	PF083A	PF083A	PYF08A(E)	PYF14A(E)
		Flush(-Y)	US-08 P3G-08	US-08 P3G-08	With Y-20 adapter
Full Timing Range			SEC: 9.9,99 MIN: 9.9,99 HR: 9.9,99	SEC: 9.99,99.9,999 MIN: 99.9,999 HR: 99.9,999	SEC: 1,3,5,10,30,60,120 MIN: 3,5,10,30,60 HR: 3
Rated Voltage (V)			AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating			After contact transfer	After contact transfer	Power, up Operating
O/P Contact	Model		ASY-2D	ASY-3D
	Time Limit 1C
	Time Limit 2C		5A	5A
	Instantaneous 1C
Life	Mechanical		5 × 106 Times	5 × 106 Times	5 × 106 Times
	Electrical		105 Times	105 Times	105 Times
Accuracy	Repeat Error		±0.05% max	±0.05% max	±3% max
	Setting Error		0	0	-
	Voltage Error		±0.05 Sec	±0.05 Sec	±2% max
	Temp Error		±0.05 Sec	±0.05 Sec	±5% max
Reset Time			0.3 sec max	0.3 sec max	0.2 sec max
Consumed Power			5VA	5VA	3VA
Ambient temperature			-10oC~+55oC	-10oC~+55oC	-10oC~+55oC
Ambient Huminity			48~85% RH	48~85% RH	48~85% RH
Weight			230g	230g	45g

1. AH3-3 time relay Application

AH3-3 series time relay is used ASIC and professional manufacturing technology to produce
innovative time relay, with small size, light weight, delay a wide range of anti-interference ability,
long life characteristics to be suitable for a variety of demanding precision, high reliability,
automation and control sites used for delay control .

2. AH3-3 time relay Specifications and parameters

Classification			Multi Range Timer			Multi Range Timer			Multi Range Timer
Specification Model			AH3-3			AH3-B			AH3-NB
Dimension			50H × 40W × 57.5D			50H × 40W × 57.5D			50H × 40W × 57.5D
Mounting & Socket		Surface(-N)	PF083A (E)			PF083A (E)			PF083A (E)
		Flush(-Y)	US-08 P3G-08			US-08 P3G-08			US-08 P3G-08
Full Timing Range			SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H
Rated Voltage (V)			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24
Indicator Operating			ON-UP operating			ON-UP operating			Time operating flicker
O/P Contact	Model		AH3-1	AH3-2	AH3-3	AH3-1	AH3-2	AH3-3	Model A/B
	Time Limit 1C		5A		5A			5A		5A
	Time Limit 2C			5A		5A			5A
	Instantaneous 1C				5A		5A	5A		5A
Life	Mechanical		5×106 Times			5×106 Times			5×106 Times
	Electrical		105 Times			105 Times			105 Times
Accuracy	Repeat Error		±1% max			±1% max			±1% max
	Setting Error		±10% max			±10% max			±10% max
	Voltage Error		±1% max			±1% max			±1% max
	Temp Error		±2% max			±2% max			±2% max
Reset Time			0.1 sec max			0.1 sec max			0.1 sec max
Consumed Power			3VAC			3VAC			3VAC
Ambient temperature			-10oC~+55oC			-10oC~+55oC			-10oC~+55oC
Ambient Huminity			48~85% RH			48~85% RH			48~85% RH
Weight			160g			160g			160g

3. AH3-3 time relay Normal operating conditions and installation conditions:

3.1 The use of the environment: the sea disturbance height of not more than 2000 meters,
ambient temperature is not higher than +40 and no less than -5 ; supply voltage range of 85%
-110% rated voltage; in the absence of a serious shock and explosion hazard medium,
and medium, non-corrosive metal and undermine the insulation is
sufficient gas and dust; in less rain and snow hit areas.
3.2 vertical or horizontal installation.
Technical features
1, supply voltage: AC (50Hz) 24V, 36V, 110V, 127V, 220V, 380V; DC: 24V (other voltages can
be customized);
2, electrical life: ≥ 10 × 104 times;
3, Mechanical life: ≥ 100 × 104 times;
4, contact capacity: AC220V 3A; DC220V 0.5A COSφ = 1;
5, use the Class: AC-15 DC-13;
6, repeated the error: "1%;
7, reset time: ≤ 1 sec;
8, power consumption: ≤ 1.5W (DH11S ≤ 3W).

DH48S Digital display time relay is used in the scale of the advanced application specific integrated circuit, LED digital tube display, beautiful appearance, easy installation, digital key switch preset, stable and reliable, high precision, delay range, low power consumption advantages, is widely used in automatic control circuits for delay device.

1. Timing Range:
H:1min-99h99min
M:1s-99min99s
S:0.01s-99.99s
Normal operating conditions and installation conditions
1.1 The use of the environment: the sea disturbance height of not more than 2000 meters, ambient temperature is not higher than +40 and no less than -5 ; supply voltage range of 85% -110% rated voltage; in the absence of a serious shock and explosion hazard medium, and medium, non-corrosive metal and undermine the insulation is sufficient gas and dust; in less rain and snow hit areas.
1.2 Vertical or horizontal installation.

2.1 Technical Features:
1, supply voltage: AC (50Hz) 24V, 36V, 110V, 127V, 220V, 380V; DC: 24V (other voltages can be customized);
2, electrical life: ≥ 10 × 104 times;
3, Mechanical life: ≥ 100 × 104 times;
4, contact capacity: AC220V 3A; DC220V 0.5A COSφ = 1;
5, use the Class: AC-15 DC-13;
6, repeated the error: "1%;
7, reset time: ≤ 1 sec;
8, power consumption: ≤ 1.5W (DH11S ≤ 3W).

Products Specification:

Part number		DH48S-A	DH48S-AE	DH48S-2Z	DH48S-1Z	DH48S-E	DH48S-S/2Z	DH48S-S/1Z
Indicators		8 mm LED numeric display
Supply voltage		AC24V,110V,220V,380V 50/60Hz DC12V,24V
Operating voltage		85 to 110% of rated supply voltage(90% to 110% at 12 VDC)
Power consumption		≤5W
Control output	Time limit	SPDT(2C)	SPDT(2C)	SPDT(2C)	SPDT(1C)	SPDT(1C)	SPDT(2C)	SPDT(1C)
	Instantaneous		SPDT(1C)			SPDT(1C)
	Output Max.Load	5A,250VAC(p.f=1)
	Output Min.Load	10 mA,5 VDC
Input method	Reset input	no-voltage unput Impedance at short-circuit:max.1kΩ Impedance at open:min.100kΩ residual voltage at short-circuit:max.0.5V
	Gate input
Repeat accuracy		±0.3%,±0.05sec(includes variation due to voltage and temperature changes)
Setting error		±0.5%,±0.05sec
Resetting system		Power-OFF
Resetting time		0.1 sec max.
Connections		11-pin round socket		8-pin round socket
Mounting		track,surface
Operating ambient temperature		-10 to 55
Ambient humidity Operating		35 to 85%RH
Insulation resistance		Insulation resistance 100MΩ min.at500VDC
Dielectric strength		2000V 50/60Hz min between current-carring and non-current-carring parts and between contact and control circuit
		1500V 50/60Hz min between control output terminals and operating circuit
		1000V 50/60Hz min Between contacts
Static immunity		Malfunction:8 KV Destruction:15KV
Impulse withstand voltage		3 kV (between power terminals)1 kV for 24 DC 4.5KV(between current-carrying terminal and exposed non-current-carrying metal parts);1.5 kV for 24VDC
Vibration	Mechanical durability	10 to 55 Hz with 0.75-mm double amplitude each in 3 directions
	Malfunction durability	10 to 55 Hz with 0.5-mm double amplitude each in 3 directions
Shock	Mechanical durability	30G
	Malfunction durability	10G
Service life	Mechanical	10 million operations minimum(under no load, at 1,800 operations/hour)
	Electrical	100,000 operations minmum at maximum ratings
Degree of protection		TECIP30(panel surface)
Weight		Approx:150g
