H8250fz Hart 4-20mA Signal Output Metal Tube Flow Meter

Product Description

H8250FZ  HART Variable Area Flowmeter


Application

   Used for Variable Area Flowmeter

   Power supply:  12-32VDC

   Output:  4~20mA with HART (2-wire)

   Stability: higher than 0.1% F.S.

   Accuracy:1.0% F.S.

   Local Display:5 Digit Flowrate

                          8 Digit Totalizer

   Keyboard: 3 keys

   Operating temperature:

                  -20°C ~ +70°C(with LCD)

                  -40°C ~ +85°C(without LCD)

   Intrinsically Safe:EXiaIICT6

Features

1,  Strong capability for anti-disturbance:  Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.

2,  Multiple local operation functions: Range Values, PV Unit, Damp, Medium Density, Total Flow Reset, Zero Trim, Data restore and etc.

3,  Data backup and restore.

4,  Exceptional long-term stability.

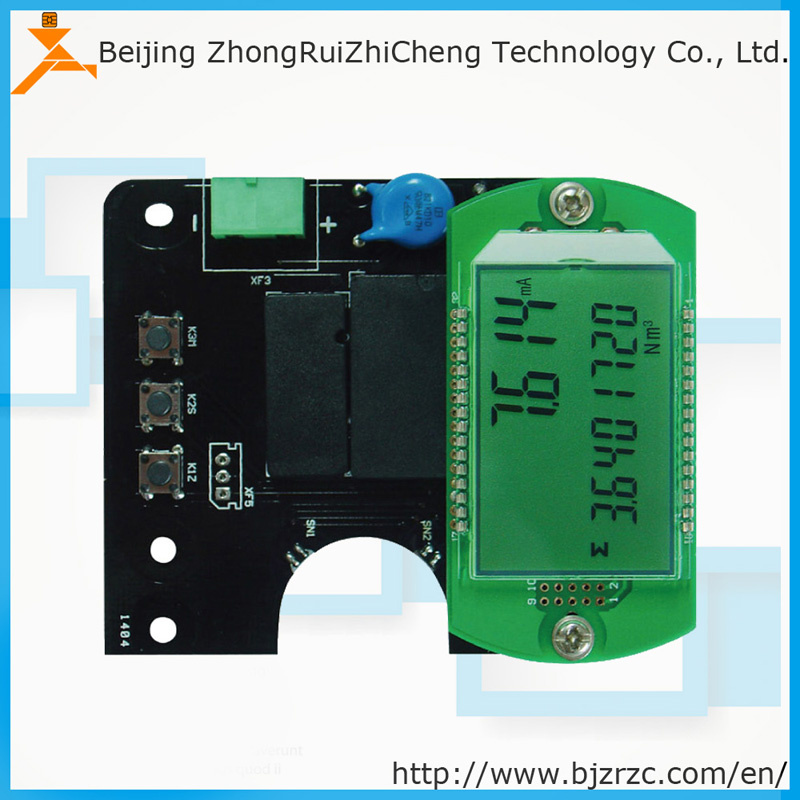

5,  H8250FZ display: Two-line LCD display. Instant flow rate and totalized flow value can be displayed simultaneously with high-brightness backlight.

Product model series

•   H8250-DC battery-powered products: last more than 1 year with ER14505 lithium batteries, and last for 10 years or more with ER34615 lithium batteries
•   P8250 product replaces the HART protocol products of H8250FZ with PROFIBUS-PA protocol.
