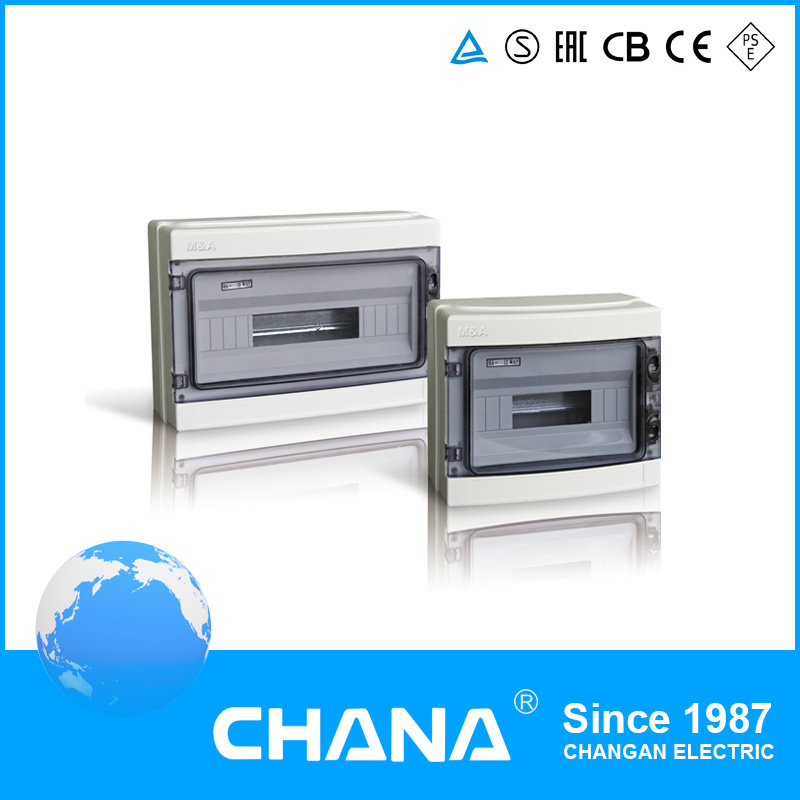

Ha Series IP65 Water-Proof Distribution Box 4/8/12/18/24ways

Prod Model:	HA-12P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Customization:	Yes
Type:	Power
Structure:	Fixed Board
Certification:	CE IP65 RoHS
Shell Protection Grade:	IP65
Brand:	Chana

Product Description

HA Series Water-Proof Distribution Box

General
HA Series lighting box is according to international standard. That is attractive and durable, safe and reliable, which is widely used in various places such as factory, mansion, residence, shopping center and so on.

Features
Panel is the ABS material for the engineering, high strength, never change color, the transparent material is PC. Cover push-type opening and closing
Face covering of the distribution box adopts the push-type opening and closing mode, the face mask can be opened by pressing lightly, the self-locking positioning hinge structure is provided when opening.
Wiring design of the power distribution box
The guide rail support plate can be lifted to the highest movable point, it is no longer limited by the narrow space when installing the wire. To install easily, the switch of the distribution box is set up with the wire groove and wire pipe exit-holes, which are easy to use for a variety of wire grooves and wire pipes.

Description
Protection degree: IP65
Din rail connection according to EN50022
Rated voltage/rated frequency: 690V/50Hz
Material: Shell-PC, Body-ABS
Tested and approved: IP65
Color: RAL7035
Supplied with removable earth bar

Specification

Model	Way No.	Dimension (mm)
		L	W	D
HT-4	4	140	210	100
HT-8	8	215	210	100
HT-12	12	295	260	140
HT-18	18	410	285	140
HT-24	24	295	420	140
