Hag II-2p Disstribution Box for Customer

Name: Hag II-2p Disstribution Box for Customer
Brand: all-electronics-online.com
SKU: 728555515
Availability: InStock
Rating: 4.6 (111 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HAG II-2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo or Shanghai
Product Type:	Public
Color:	White
MOQ:	One Container
MOV:	Less USD $3000
Payment:	30% Deposit,Balance See The Copy of B/L by Email
Delivery Time:	Within 25 Days After Receipt Deposit
Type:	Power
Structure:	Fixed Board

Product Description

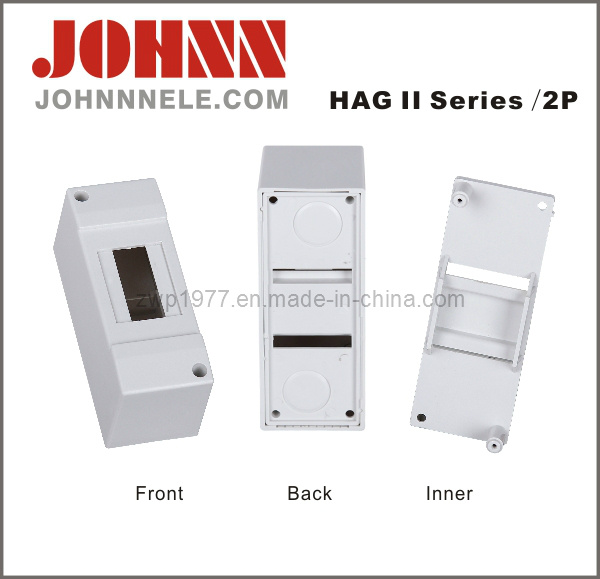

Details Information of HAG II Series Water Proof Distribution Box

HAG II series of surface box kind of good-looking outline small volume easy to install economically modular distribution box. It mainly use for building electric distribution system's installation, matched and house rebuild fitment etc application. The Max rated current is 63A.

Parameter:

*Technique parameter
Distribution box rated current:
1 way to 4 way: 50A
6 way to 18 way: 63A

*Material
Insulation: Fire-proof type refractory material
Color: White color
Standard: Accord with IEC 060439-3

*Protective Degree
IEC60529: IP 30
Fire-resistant andanomaly heat ability
IEC60529-1 standard, 650C/30 sec

*Composition, structure
Removable matte blocks to increase the poles.
The removable various size holes are available on the box of up and down, bottom in case of connecting wires in and out.

WHY CHOOSE OUR Distribution Box?

*Our electrical distribution box is equipped with a solid case that is capable of protecting the interior components from various adverse conditions, such as excessive exposure to heat or cold.

*The wiring and other parts that are contained within the distribution box are usually mounted within the interior, helping to lessen the potential for the components to be damaged during any type of shifting that would otherwise create some type of abrasive action on wire coverings and other elements.

*Typically, the distribution box is equipped with an airtight and watertight cover that allows for easy access to the interior components, making it easy to inspect and replace those components when and as necessary.

*Overall, if you want to buy distribution box, you have come to the right place.

Model	L(mm)	W(mm)	H(mm)
HAG II-1P	34	130	60
HAG II-2P	52	130	60
HAG II-4P	87	130	60
HAG II-6P	125	160	60
HAG II-8P	160	160	60
HAG II-12P	260	160	60
HAG II-18P	365	160	60
HAG II-24P	360	250	105

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
