Hall Effect Current Transmitter (A-C3X) Hall Effect Current Sensor

Name: Hall Effect Current Transmitter (A-C3X) Hall Effect Current Sensor
Brand: all-electronics-online.com
SKU: 755616545
Availability: InStock
Rating: 5 (77 reviews)

Price:	US $ 18-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	A-C3X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thermometer:	Thermocouple
Rated Output:	@IP=+-Ipn AC 5+-1%
Supply Voltage:	+-12,+-15
Power Consumption:	25V
Offset Voltage:	@IP=0 +-30
Response Time:	<=200
Galvanic Isolation:	@ 50Hz,AC,1min 5
Usage:	Thermal Sensor, Thermal Sensor~@
Theory:	Temperature Sensor

Product Description

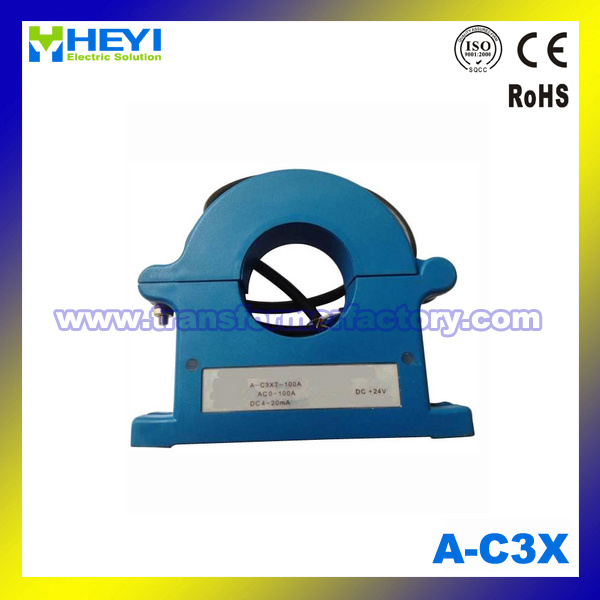

A-C3X series dismountable hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	A-C3X- 200A	A-C3X- 500A	A-C3X- 800A	A-C3X- 1000A	A-C3X- 1500A	A-C3X- 2000A	Unit
Rated current(Ipn AC)	200	500	800	1000	1500	2000	A
Measure range(Ip AC)	0-400	0-1000	0-1600	0-2000	0-3000	0-3000	A
Rated output(Vo DC)	@Ip=±Ipn AC 5±1%						V
Supply voltage	±12,±15						V
Power Consumption	25						mA
Offset voltage	@Ip=0 ±30						mV
Offset drift	@ -40~+85ºC ≤±1						mV /ºC
Output drift	@ -40~+85ºC ≤±1						mA /ºC
Linearity	@Ip=0-±Ipn ≤1						%FS
Response time	≤200						ms
Galvanic isolation	@ 50HZ,AC,1min 5						KV
Bandwidth	40~20000						HZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2: -15V 3:V0UT 4:0V

Directions for use

1. When the current will be measured goes through a transmitter, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the transmitter)
2. Customs can adjust output amplitude of the transmitter by needs.
3. Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	540	g
