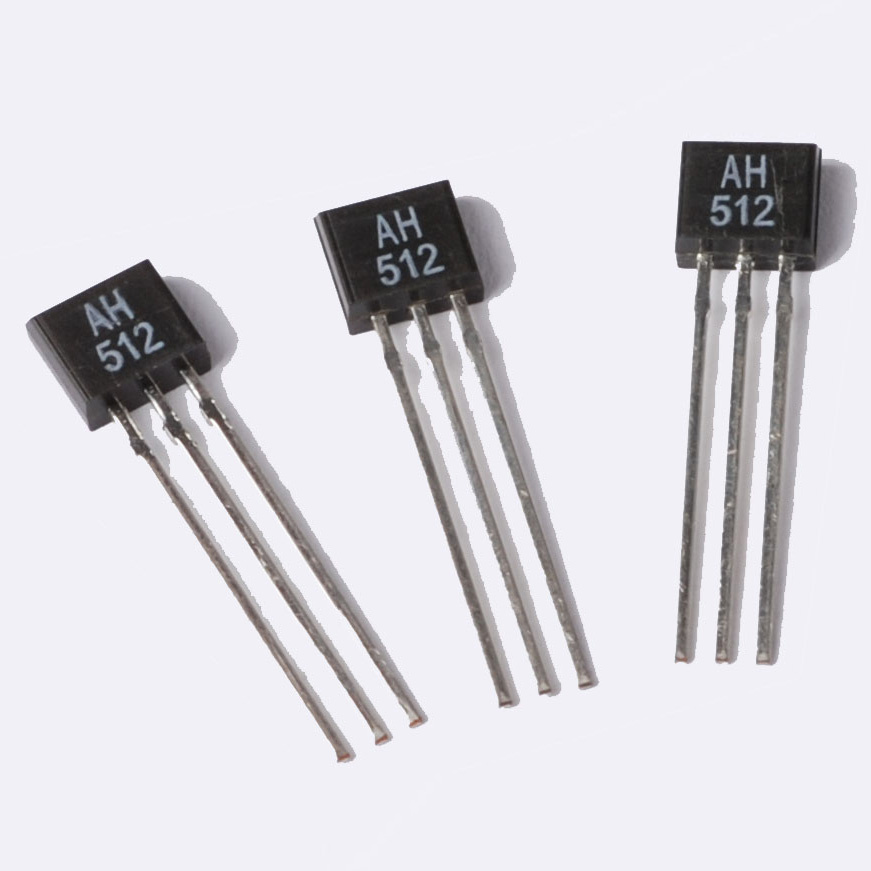

Hall Effect Sensor (AH512) , Hall Sensor, Magnetic Sensor, Speed Sensor, Encoder Sensor,

Name: Hall Effect Sensor (AH512) , Hall Sensor, Magnetic Sensor, Speed Sensor, Encoder Sensor,
Brand: all-electronics-online.com
SKU: 616991354
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 0.22/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AH512,
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Digital Sensor
Usage:	Position Sensor, Liquid Level Sensor, Speed Sensor
Theory:	Magnetic Sensor
Material:	Mixture

Product Description

These Hall-effect switch integrated circuits are monolithic integrated circuit consisting of a voltage regulator, hallvoltage generator, differential amplifier.

Features
. Wide supply voltage range
. Fast response time
. Wide frequency and temperature range
. Long operating life
. Small size, convenient installing
. Output compatible with all digital logic families

Typical Applications
. Contactless switch
. Position control
. Speed measurement
. Revolution detection
. Isolation measurement
. Brushless d. C motor
. Automotive ignitor.

Absolute maximum rating
Parameter	Symbol	Value	Unit
Supply voltage	VCC	24	V
Magnetic flux density	B	Unlimited	mT
Output OFF voltage	Vce	50	V
Continuous output current	IOL	50	mA
Operating temperature range	TA	-40~125	º C
Storage temperature range	TS	-55~150	º C

Electrical Characteristics TA=25º C
Parameter	Symbol	Test conditions	Type and Value			Unit
Parameter	Symbol	Test conditions	min	typ	max
Supply voltage	VCC	4.5	-	24	V
Output saturation voltage	VOL	Iout=20mA B> BOP	-	200	400	mV
Output leakage current	IOH	Vout=24V B	-	0.1	10	μ A
Supply current	ICC	VCC=Output open	-	-	10	mA
Output rise time	tr	RL=820Ω CL=20PF	-	0.12	-	μ S
Output fall time	tf	RL=820Ω CL=20PF	-	0.18	-	μ S

Specialized in researching, developing, designing, manufacturing and selling the magnetic sensors, hall IC, hall effect sensor, hall switch, current sensor, hall effect elements, unipolar hall switch IC, bipolar hall IC, linear sensors, latch hall switch IC, linear position sensors, zero power magnetic sensor products. "nanjing ah electronic science & Technology Co., Ltd" was establish in may 2003, by several Chinese senior experts of magnetic sensors. The culture is"science, development, service", our company applies itself in researching and manufacturing the sensors which owns China' S independent intellectual property rights.

Nanjing ah electronic science & Technology Co., Ltd relies on its advanced technology strength, rich industrial experiences and veracious market visibility, it established abroad strategic cooperation relations with top professional manufacturers of IC designing, manufacturing, package and testing in the United States and Taiwan and home, and the company all along exerts the most advanced designing and manufacture technology to ensure the product and technology in the highest flight, and furthest ensure the coherence and reliability and stability of the products.

The products of "nanjing ah electronic science & Technology Co., Ltd " Includes ah series unipolar hall switch IC, ah series bipolar hall IC, ah serieslatch hall switch IC, ah series linear hall IC, wg series zero power consumption magnetic sensor etc.

"Nanjing AH Electronic Science & Technology Co., Ltd. " is the high and new technology enterprise in jiangsu province. The company owns more than a Dozen of China patents, 2 International patents. The company has passed ISO9001 certification and product environmental protection tests, and assumes several national technological projects.

We are looking for distributors in your area. If you are interested in setting up a Business please Contact us.
