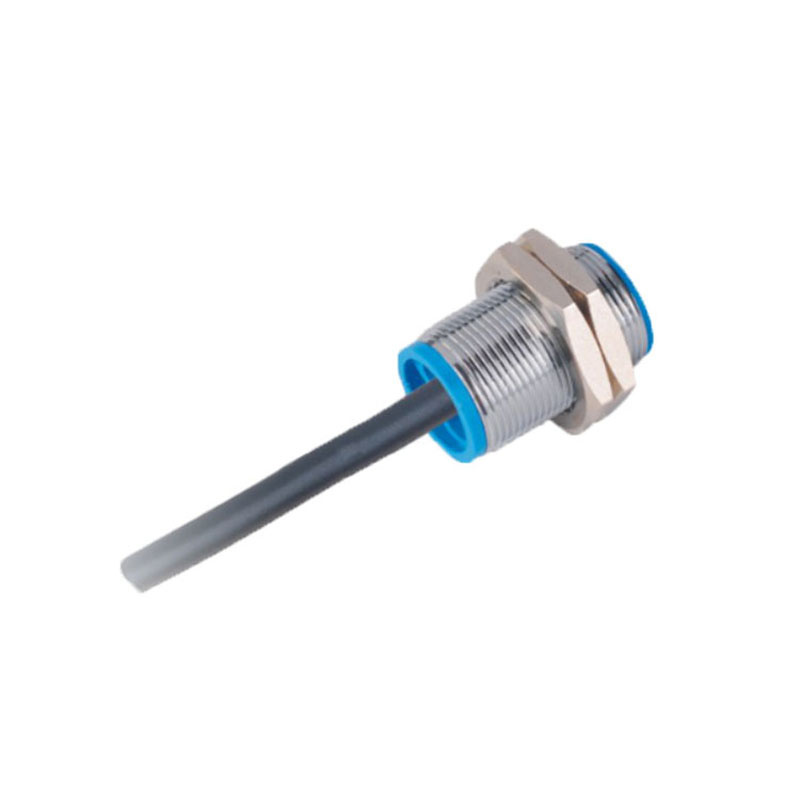

Hall Proximity Switch Sm18

Name: Hall Proximity Switch Sm18
Brand: all-electronics-online.com
SKU: 834427465
Availability: InStock
Rating: 4.4 (113 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM18
Detection Distance:	10mm
Working Voltage:	DC6-36V/AC90-250V
Output Form:	NPN / PNP / Two Wire / SCR
State:	No / Nc
Flush:	Flush / Non-Flush
Type:	Proximty Switch
Production Process:	Flush or Non-Flush

Product Description

Proximity Sensors are available in models of capacitive sensor and inductive sensor using high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects. Sensors are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water

Features :

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

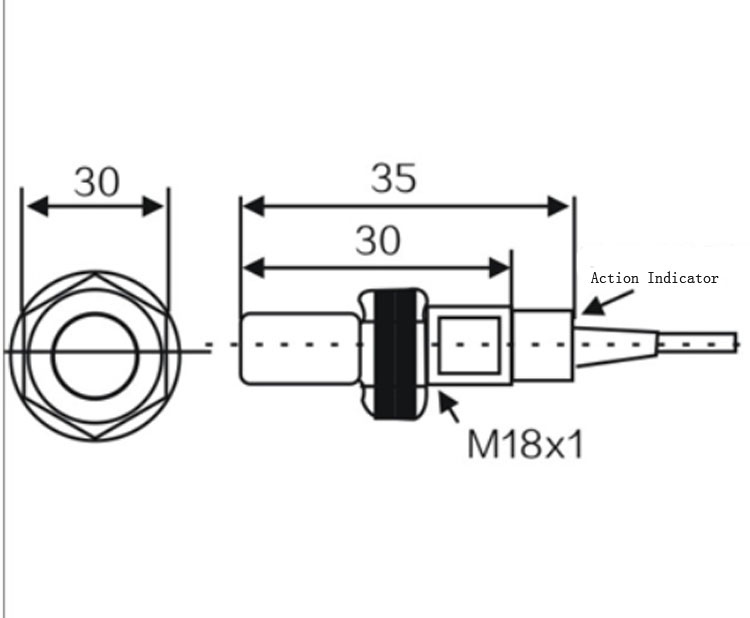

Code No.:	SM18
Detection distance:	10mm
Power voltage:	5~24VDC
Detectable object:	Permanent magnet
Output low level voltage:	200mV
Output high level voltage:	0.1uA
Power current:	8mA
ON-OFF frequency:	320KHz
Working point magnetic density:	22mT
Shell material:	Metal
Ambient temperature:	-25°C~70°C
Protection grade:	IP67
NPN NO	SM18-31010NA
PNP NO	SM18-31010PA
NPN NC	SM18-31010NB
PNP NC	SM18-31010PB

Inductance type

LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18

Capacitance type

CM12 CM18 CM30 CMF37 E2K

Hall type

SM8 SM12 SM18

Mimic linear type

XM12 XM18 XM30 XMF37 XMF38

Ultrasonic type

UB400 UB500 UB1000 UB1500 UB2000

Safety explosion-proof type

AM8 AM12 AM18 AM30

Reed type

TCS1-E TCS1-F

Photoelectric type

G12 G15 G16 G18 G30 G50 G63 G139

Color mark and Area secure type

BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40
