| Prod Model: |
N2XCH |
| Nominal Voltage Uo/U: |
600 / 1000 Volt |
| Test Voltage: |
4000 [V]AC |
| Temperature Range: |
-5°c Till +90°c |
| Operating Temperature: |
250c |
| Bending Radius: |
15-12 Diameter |
| Application: |
Improved Fire Behaviour |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Certification: |
SGS |
| Insulation Material: |
Halogen-Free, Cross-Linked Polyethylene |
| Sheath Material: |
Halogen-Free, Cross-Linkedpolymer Compound |
| Model: |
N2xh |
| Brand: |
Hongda |
Product Description

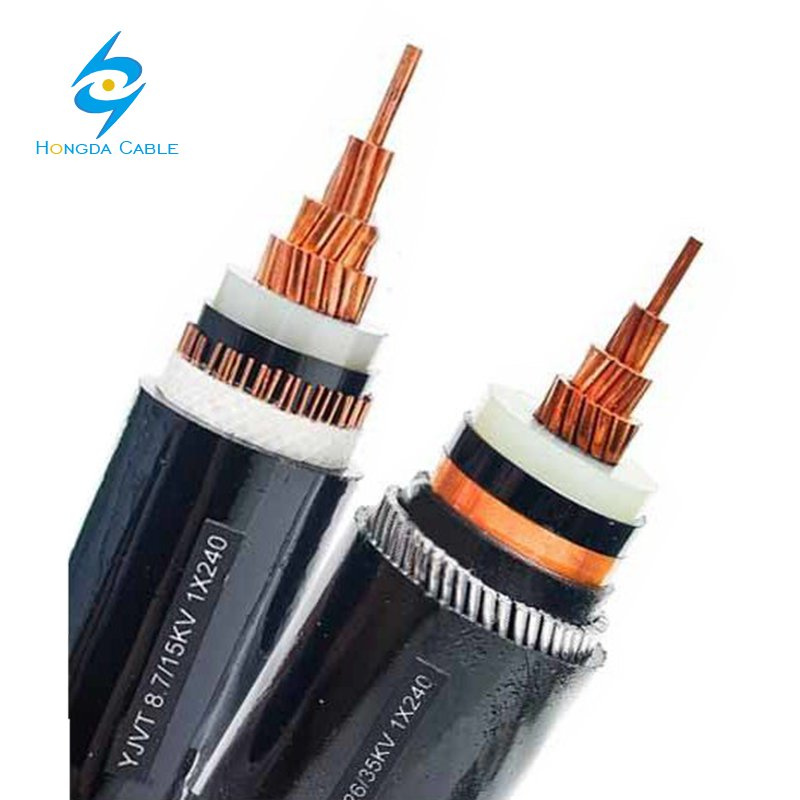

N2XCH
Halogen-Free Cable with Concentric Conductor with Improved Fire Behaviour
Application:Safety cables are used in all locations where a high degree of protection against fire and fire-damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors and outdoors. They may not be installed directly into the ground and into the water. This cable conforms to Safety Class II standards.
N2XH and N2XCH cables are widely used European power cables used for electricity supply for fixed installations with a voltage rating of 600/1000V in public buildings. Their flame-retardant non-corrosive (FRNC) outersheath makes them suitable for use where smoke and corrosive gases would pose a risk to human life and sensitive equipment in the event of a fire.
These cables are suitable for use in dry and damp environments, on or under plaster, on cable trays, in walls, masonry and in concrete. The N2XH and N2XCH are not suitable for direct burial without external protection against mechanical stress or water.

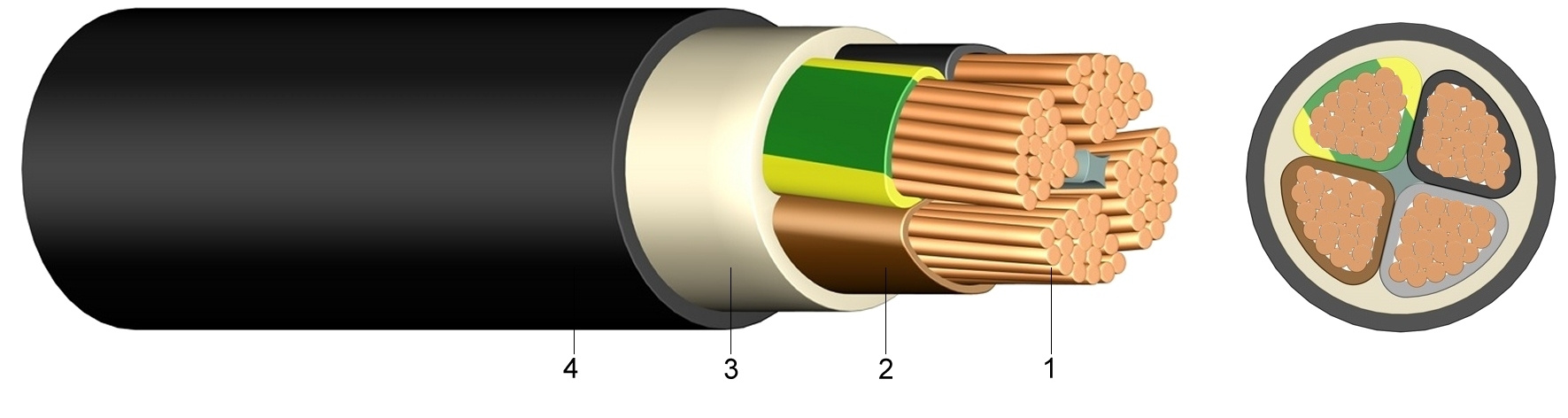

N2XH CABLE CONSTRUCTION:| | N2XH |
|---|
| Conductor | Up to 25mm2: Solid copper (Class 1)
Above 25mm2: Stranded copper (Class 2) |
| Insulation | Cross-linked Polyethylene (XLPE) Type 2XI1 |
| Outersheath | Low Smoke Zero Halogen (LSZH) Type HM4 - flame retardant non-corrosive compound (FRNC) |

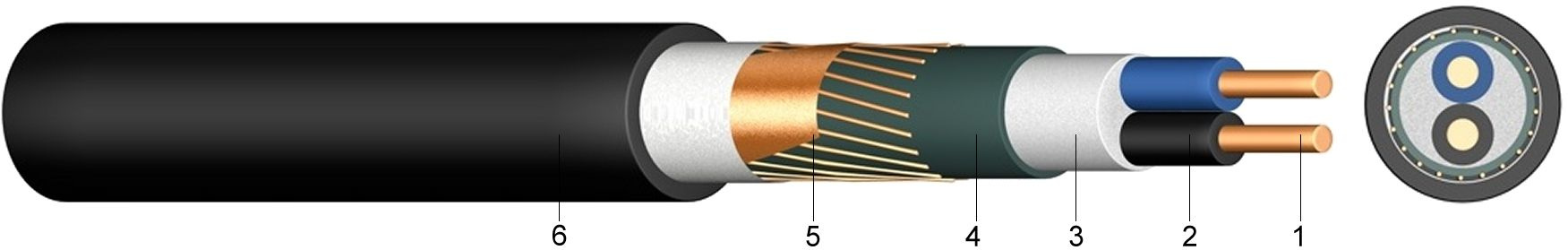

N2XCH CABLE CONSTRUCTION:| | N2XCH |
|---|
| Conductor | Up to 25mm2: Solid copper (Class 1)
Above 25mm2: Stranded copper (Class 2) |
| Insulation | Cross-linked Polyethylene (XLPE) Type 2XI1 |
| Concentric conductor | Copper wires with counter helix of copper tape |
| Outersheath | Low Smoke Zero Halogen (LSZH) Type HM4 - flame retardant non-corrosive compound (FRNC) |
Technical data:| Nominal voltage Uo/U | | [V] | 600 / 1000 volt |
| Test voltage | | [V]AC | 4000 |
| Temperature range | in motion | | -5°C till +90°C |
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | single-core style | x diameter | 15 |
| multi-core style | x diameter | 12 |
| Flammability | standard | | EN 50266-2-4
EN 60332-1 |
We supply the following variants of N2XH and N2XCH:Protective conductor
| N2XH-J / N2XCH-J | With protective conductor |
| N2XH-O / N2XCH-O | Without protective conductor |
Conductor shapes
| RE | Class 1 solid - round |
| SE | Class 1 solid - sectorial |
| RM | Class 2 stranded - round |
| SM | Class 2 stranded - sectorial |
N2XCH CABLE DIMENSION: |
|
|
|
|
| 2 x 1,5 RE/ 1,5 | 54,0 | 1 x 1,38 | 11,5 | 0,61 | 177,0 |
|
| 2 x 2,5 RE/ 2,5 | 83,0 | 1 x 1,78 | 12,7 | 0,69 | 226,0 |
| 3 x 1,5 RE/ 1,5 | 73,0 | 1 x 1,38 | 11,3 | 0,68 | 196,0 |
| 3 x 2,5 RE/ 2,5 | 113,0 | 1 x 1,78 | 13,2 | 0,77 | 253,0 |
| 3 x 4 RE/ 4 | 168,0 | 1 x 2,25 | 16,0 | 0,90 | 336,0 |
| 3 x 6 RE/ 6 | 250,0 | 1 x 2,76 | 16,0 | 1,03 | 441,0 |
| 3 x 10 RE/ 10 | 425,0 | 1 x 3,56 | 18,5 | 1,35 | 659,0 |
| 3 x 16 RE/ 16 | 670,0 | 1 x 4,51 | 21,3 | 1,74 | 979,0 |
| 4 x 1,5 RE/ 1,5 | 88,0 | 1 x 1,38 | 12,6 | 0,77 | 221,0 |
| 4 x 2,5 RE/ 2,5 | 138,0 | 1 x 1,78 | 14,0 | 0,88 | 291,0 |
| 4 x 4 RE/ 4 | 208,0 | 1 x 2,25 | 15,2 | 1,04 | 393,0 |
| 4 x 6 RE/ 6 | 309,0 | 1 x 2,76 | 17,4 | 1,27 | 527,0 |
| 4 x 10 RE/ 10 | 525,0 | 1 x 3,56 | 19,9 | 1,62 | 783,0 |
| 4 x 16 RM/ 16 | 829,0 | 7 x 1,70 | 23,4 | 2,19 | 1.188,0 |
| 4 x 25 RM/ 16 | 1.190,0 | 7 x 2,13 | 28,1 | 3,16 | 1.716,0 |
| 4 x 35 RM/ 16 | 1.590,0 | 7 x 2,52 | 31,1 | 3,74 | 2.193,0 |
| 4 x 50 SM/ 25 | 2.295,0 | 19 x 1,89 | 33,7 | 4,57 | 2.784,0 |
| 4 x 70 SM/ 35 | 3.210,0 | 19 x 2,17 | 37,2 | 5,46 | 3.675,0 |
| 4 x 95 SM/ 50 | 4.383,0 | 19 x 2,52 | 43,0 | 6,97 | 5.063,0 |
| 4 x 120 SM/ 70 | 5.613,0 | 37 x 2,03 | 47,2 | 7,84 | 6.307,0 |
| 4 x 150 SM/ 70 | 6.813,0 | 37 x 2,27 | 52,0 | 9,66 | 7.617,0 |
| 4 x 185 SM/ 95 | 8.499,0 | 37 x 2,52 | 57,3 | 11,60 | 9.462,0 |
| 4 x 240 SM/120 | 10.985,0 | 61 x 2,24 | 64,3 | 14,06 | 12.264,0 |
| 7 x 1,5 RE/ 2,5 | 139,0 | 1 x 1,38 | 14,4 | 0,99 | 314,0 |
| 12 x 1,5 RE/ 2,5 | 214,0 | 1 x 1,38 | 19,0 | 1,66 | 503,0 |
| 7 x 2,5 RE/ 2,5 | 203,0 | 1 x 1,78 | 16,0 | 1,21 | 413,0 |
| 12 x 2,5 RE/ 4 | 348,0 | 1 x 1,78 | 20,9 | 1,90 | 667,0 |
N2XH & N2XCH CABLE SELECTION:In addition to our portfolio of European power cables we also supply British standard low voltage power cables including armoured cable BS6724 cable with its LSZH outer sheathing. Our technical has a wealth of experience in providing support in the selection of the right cable for your application. Please call to discuss your specific application.
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
