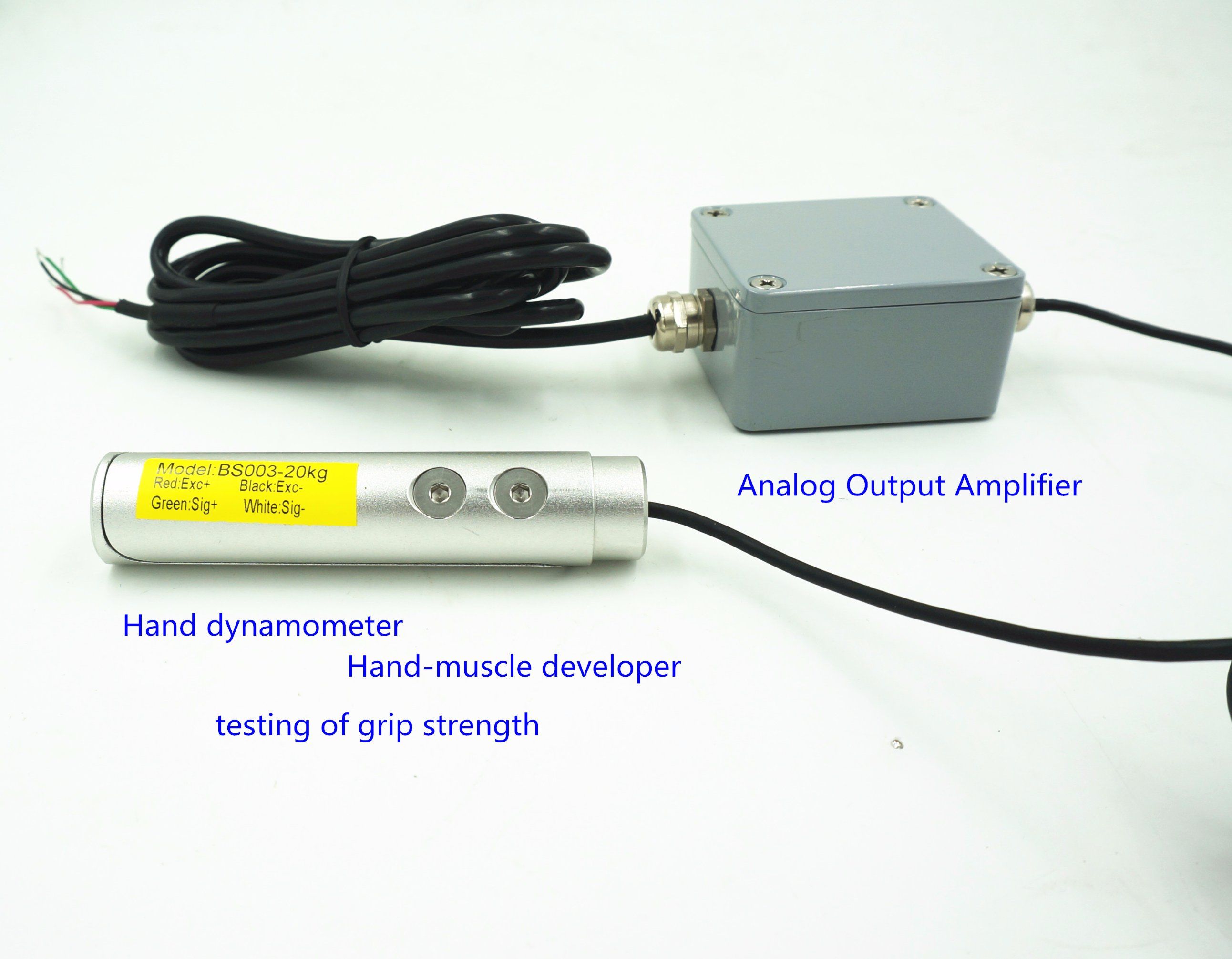

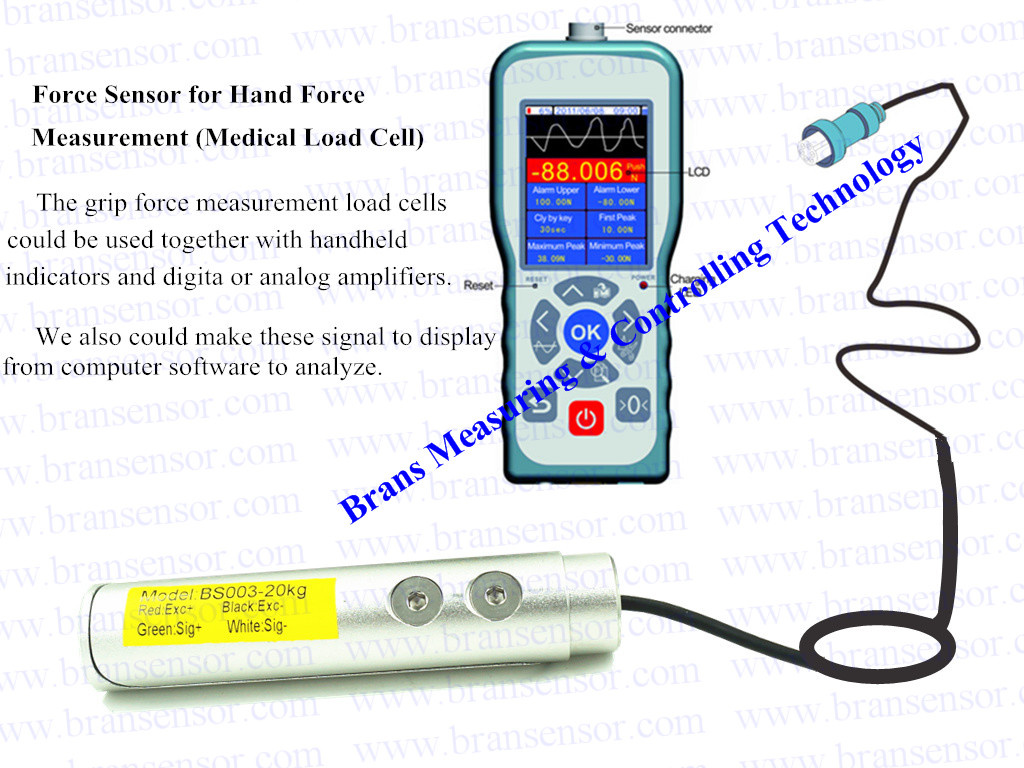

Hand Force Load Cell Enables Grip Measurement (Medical Load Cell) BS003
| Price: |
Negotiable/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
BS003 |
| Measurement Force: |
Compression Force Measurement |
| Size: |
50mm*25mm(Diameter*Height) |
| Product Type: |
Miniature Force Sensor |
| Function: |
Hand Grip Force Measurement |
| Pattern: |
Load Button |
| Feature: |
High Accuracy |
| Production Process: |
Put on Strain Gauge |
Product Description
1. Name: 2KN Miniature load cells to measure hand grip force
2. Type: BS003 force sensor
3. Specification
The BS003 force transducer can be used to measure static compressive force. Nominal forces ranging as 2kN are available as well as variable cable lengths and, on request, Transducer Electronic Data Sheet.
The compressive force transducer is mechanically and electrically compatible with its predecessor model and can easily be installed in existing systems. Its extremely compact design further facilitates the integration.
Providing 0.2 accuracy, this offers higher precision than its predecessor. The force sensor is based on high strain gauge technology. Force is applied via a special load application point.
Brans force transducer offers IP67(IP68) protection. Precise measurement results are guaranteed even in adverse environments thanks to the hermetically sealed housing from stainless steel and rugged cable. Compact, precise, rugged - these characteristics make our load button highly versatile. Possible fields of application include:
Cost-effective test benches for a wide range of applications control and monitoring of production processes measurement tasks in development, when other sensors are too big, e. g. for measuring braking forces directly in the brake caliper. Furthermore, the compressive force transducer adapts to the application - cable lengths and connectors are variable. The sensor's identification number will be automatically detected and the amplifier automatically configured.
4. Key Features
Compact design
Direction of force: Compression
Accuracy class 0.2
Nominal rated forces: 2KN
Configurable with different cable lengths, plug assembly
5. Datasheet| 1 | Specifications | Technique |
| 2 | Capacity | 0.1, 0.2, 0.5, 1, 2kN |
| 3 | Rated output | 1.5±10%mV/V |
| 4 | Zero balance | ±0.03 mV/V |
| 5 | Non-linearity | 0.2%F. S. |
| 6 | Hysteresis | 0.1%F. S. |
| 7 | Repeatability | 0.1%F. S. |
| 8 | Creep(30min) | 0.05%F. S. |
| 9 | Temp. effect on output | 0.05%F. S. /10ºC |
| 10 | Temp. effect on zero | 0.05%F. S. /10ºC |
| 11 | Input impedance | 780±20Ω |
| 12 | Output impedance | 700±10Ω |
| 13 | Insulation | ≥5000MΩ/100VDC |
| 14 | Recommended excitation | 10V |
| 15 | Maximum excitation | 15V |
| 16 | Compensated temp range | -10~60ºC |
| 17 | Operation temp range | -20~80ºC |
| 18 | Safe overload | 150%F. S. |
| 19 | Ultimate overload | 300%F. S. |
| 20 | Cable size | φ3.6×4000mm |
| 21 | Material | Stainless Steel |
| 22 | IP Class | IP67 |
All of these load button load cells could be customized. The accuracy could be 0.1% for force measuring and controlling progress.
We offer robust, reliable and extremely durable force sensors (force transducers or load cells) for the measurement of static, quasi-static and dynamic tension and compression forces, which are suitable for applications in the most varied embodiments and dimensions. There are three main types: tensile force, compression force or tensile and compression force sensors. On top of that we provide force sensors with two or three measuring ranges as so-called multi-component sensors, or in a double bridge version (plausibility circuit). An optional version in 6-wire technology or advanced IP protection class is also available for the majority of our sensors. Furthermore, we manufacture special sensors, such as load pins, load bearings, stress sensors, or customized sensors, according to your requirements. Additionally, our product range includes a wide choice of accessories, such as force transmissions, thrust pieces, rod ends, fixing flanges, measuring cables, measuring amplifiers, ...www.bransensor.com
What you could get from Brans?
Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.
Why choose Brans?
Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.
We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.
Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.
Who Brans cooperate with?
Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
