Handheld GPS GPS Tracker SIM Card Vehicle Tracking System Coban Tk102

Prod Model:	TK102
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	Ce FCC
GPS Tracker Model:	Portable Tracking Device for Person
Warranty:	12 Months
Battery:	1000mAh Li-ion Battery
Car Charger:	12V~24V Input, 5V Output
Dual GPRS Communication Protocol:	TCP /UDP
Tracking Solution:	SMS/Web Platform /APP Software
Tracking Map:	Google Map
Mini Size:	64*46*17(mm)
Portable Weight:	50g
Type:	GPS Tracker
Use:	Hand Held
Operating Principle:	Interferometric Type
Port Number:	Multichannel
Model:	Set-real Type
Chip:	SiRF
Certification:	ISO/TS16949
Screen Size:	No Screen
Carrier Frequency:	850/900/1800/1900MHz
Brand:	Coban

Product Description

Handheld gps gps tracker sim card vehicle tracking system coban tk102

GPS tracker TK102
   GPS Tracking Device can satisfy the requirements that keeping track of family members, employees or anyone you need to monitor with a personal GPS tracking device, tracking devices for people are usually small in size which you can carry it in a bag or purse easily, which you can check in the location any time you want to update. The personal GPS tracking devices we provide have an SOS call button built in to them. The personal gps locator can be activated at any time by the user and you will receive an instant message if they are in need of help.


Key Specifications/Special Features:
Working based on existing GSM/GPRS(850/900/1800/1900MHz) network and GPS satellites, this product can locate and monitor any remote targets by SMS or Computer or PDA
GPS / GSM / GPRS wireless network
Suitable for cargo, container and personal tracking
1000mAh large capacity internal battery for long working time
Voice Monitor function
Phone call available - 2 family numbers supported
SOS emergency alarm
Geo-fence alarming function
Low battery alarm
GPS blind Spot alert
SOS
Geo-fence
Multi-area management
Movement alert
Overspeed alert
Built in Acceleration Sensor Alarm
Web-based online tracking platform


Advantages of products:
TK102
Waterproof bag
with Memory Slot
Inbuilt Shake Sensor
Stylish Design, with magnets inside
4 Bands, can be used all over the world
OEM Available (change functon, color, logo, gift box)
* Powerful magnet+water proof, in the hidden place of car
* Multiple tracking ways, provide free monitor software with the global map, real-time track by your computer or PDA cell phone or Google earth
* Standby 80 hours
* Integration design (antenna and battery inside), easy to hide and take along with you
* Support orientation without orientated server: It can find out Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually, you can find out the real-time information of position





Can support platform:
1. When using platform, it can track targets in real time on electronic map, or inquire the target's position by mobile phone
2. If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation
3. Tracking function by timing and frequency
3. Authorized number added and deleted function
4. Support hidden alarm and monitor function
5. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district
6. Movement alert: You can set up barriers when the tracker is stopped. Once moved, it can give an alarm to the authorized number
7. Over speed alarm: You can make the inspected target run according to fixed speed. It alarms when speed is exceeded
8. Low battery alarm function
Tracking platform: www.gpstrackerxy.com
test account: demo
password:8888

Five tracking solutions:
-Manual tracking
By calling the device, it will return a message back with Latitude and longitude data, you can enter this data on Google map or on our web tracking platform.
-PDA cell phone map tracking
The information that the message contains after you called the device has a map link, use a PDA smart phone you can open this link directly and see the location on your phone.
-Physical address tracking
By sending command "address+password", you will get a SMS return with the real street name like "zhiheng industries park, nantou guankou 2nd Rd, nanshan, shenzhen, guangdong, china."
-Web server online tracking www.gpstrackerxy.com
You can add the imei number of the device to the platform and after all the configuration, you can start real time online tracking on the platform.
we also supply multi-language(English,Spain,German,Italian.Portuguese,etc) web tracking platform for our customer to realize real-time tracking.
-Local based service(LBS) tracking
If the tracker cannot establish a solid GPS Fix, it will calculate its location using Cell-ID GSM locating, Location reports will include the GPS coordinates of the last known positions as well as a LAC code, Entering the  LAC code to the "Manual Track" menu of web tracking platform www.gpstrackerxy.com will enable you to see the tracker's current location. You can also send command "address+password" to the tracker to request exact address, track will automatically switch to tracking by LBS in GPRS mode. Accuracy of LBS depends on the distance to the nearest GSM Network Cell Tower or Base Station.
Note: This feature can be used normally in most areas according to the signal of GSMnetwork. It may not be available in some areas.

Technical specifications

Content	Specifications

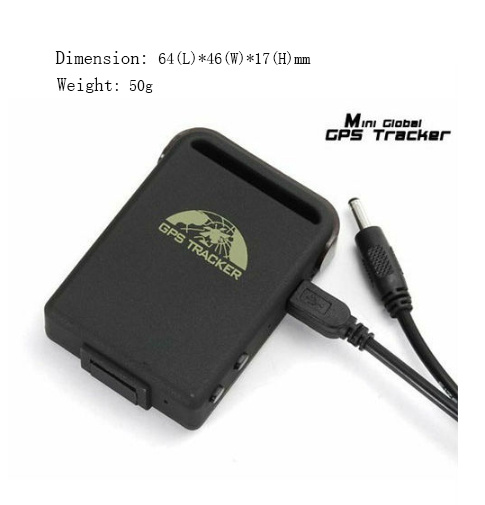

Dim.	64mm x 46mm x 17mm(1.8" *2.5" *0.65" )
Weight	50g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS sensitivity	-159dBm
GPS accuracy	5m
Time To First Fix	Cold status  45s Warm status  35s  Hot status  1s
Car charger	12-24V  input       5V   output
Wall charger	110-220V  input        5V   output
Battery	Chargeable changeable 3.7V 1000mAh Li-ion battery
Standby	80hours
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +55°C
Humidity	5%--95% non-condensing

Applying directions:
1.Vehicle rental/out-door machines and equipments ect. guard tracking
2.Protect child / the old / the disabled / pet etc
3.Provide peace-of-mind for businessmen
4.Manage personnel
5.Track criminals secretly
Technology parameter:
GPS chip SIRF3 chip
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix Cold status 45s,Warm status 35s,Hot status 1s
Car charger 1224V input,5V output
Battery Chargeable changeable 3.7V 800mAh Li-ion battery

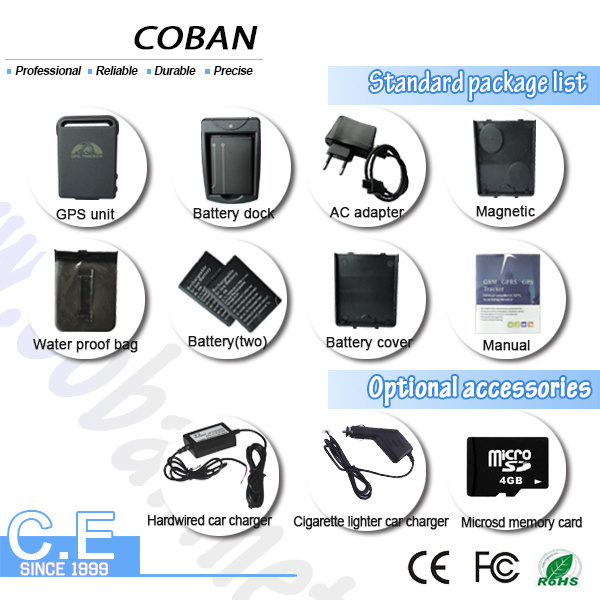

GPS102 standard package content:

1 x GPS unit                              2 x batteries
1 x AC adapter                         1 x battery dock
1 x magnetic battery cover    1 x waterproof bag
1 x user manual                       1 x CD
1 x USB cable

Packaging & Delivery
Packaging Detail:
Box: 13cm*19cm*5.7cm
Packing weight: 0.47kg(car charger plus: 30g; Battery charger plus: 50g)
Carton: 53.4cm*39.9cm*30.4cm
Qty Of One carton: 40PCS/CTN
Net weight: 18.8kg/CTN Gross weight: 21kg/CTN
Delivery Detail: Within 1-3 working days after your payment confirmed

Warranty:
All products have been strictly quality checked in house before packing
All products have been well packed before shipping
One year warranty is provided
We will bear maintenance cost during warranty
