Handle Type Armored Thermocouple (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-1800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex

Product Description

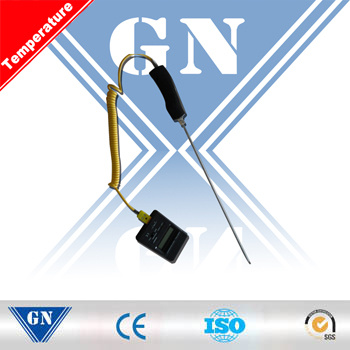

Handle type armored thermocouple



Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from 0 to 1300°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box

Selection table:

Description	Type	Graduation	Outer Diameter	Length	Measuring End
NiCrSi-NiSi	WRMK-181	N	Φ3-8	300-3000	Insulation type
NiCr-NiSi	WRNK-181	K
NiCr-CuNi	WREK-181	E
Cu-CuNi	WRCK-181	T
Fe-CuNi	WRFK-181	J
NiCrSi-NiSi	WRMK-182	N			shell-connecting type
NiCr-NiSi	WRNK-182	K
NiCr-CuNi	WREK-182	E
Cu-CuNi	WRCK-182	T
Fe-CuNi	WRFK-182	J

Diagram:
It can be suctomized according to your requirements.


After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
