Handset Infrared Rays Used Handset Infrared Rays

Prod Model:	Handset Infrared Rays
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Useage:	Industrial

Product Description

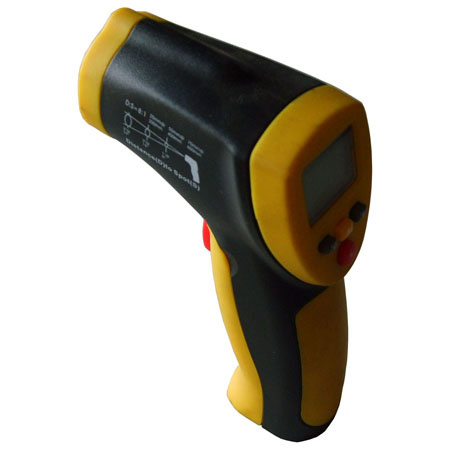

The handset infrared ray
Used thermometer not to touch with testing object
With facility-using
Stability-design



1. Summarize
This product is a type of professional handset infrared rays used Thermometer, not need to touch with testing object, with facility-using, stability-design, exactitude-measurement, wide-measuring range. It has laser ranging, apheliotropic display, automatic numerical reading lock-in and automatic tail off.
This product can be applied to those could't be measured by tradition method of measurement which needing touch object surface (such as moving object, electrified surface and hard-touched object. )
This product can be used in the food detection, security detection, fire detection, injection molding, vessel, spray-paint, ink and maintenance of diesel engine.



2. Characteristic
1) Exactitude-measurement with untouched
2) laser ranging implement
3) automatically choose measurement range, the resolution0.1or 1.
4) C/Fconversion button
5) automatic numerical value maintenance and automatic tailoff
6) compare of infrared measure temperature space and object aim: (D: S=8: 1)
7) Owns apheliotropic LCD display screen
8) compare of measure space and object aim:
Model: 88A/88B/88C compare of optics measure space and object aim(D: S=8: 1). For example, the visual field of the instrument is 8: 1, viz., if the testing object is away from the instrument 400mm, the diameter of the testing object is not less than 50mm.



3. Technique Index
1. Safe Guard Requirement:
1)Please use the product carefully when laser light beam is open;
2)Don't pierce laser light beam to the eyes of man or animal;
3)Don't reflex laser light beam to man's eyes from the object surface;
4)Don't pierce laser light beam to any explosive gas
