| Prod Model: |
TSD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage Range(V): |
160-250 |
| Output Voltage: |
220V±3% |
| Ambient Temperature: |
-5~+40 |
| Response Time: |
<1s |
| Efficency: |
>90% |
| Temperature-Rise: |
≤60k |
| Waterproof Class: |
IP54 |
| Withstand Voltage: |
1500V/1min |
| Waveform Distortion: |
No Addition Distortion |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
SVC |
| Frequency: |
Industrial Frequency |
Product Description

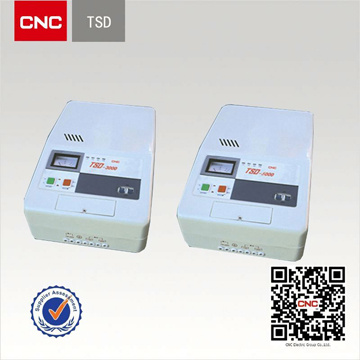

Hanging-style High Accuracy AC Voltage Stabilizer(TSD)
About CNC
1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries
Specifications
This series products is developed on the base of TND series high accuracy full-automatic AC voltage stabilizer; It forms the control system with linear integrated circuit, and drive the contact voltage regulator to start regulating by controlling the servo motor. It is provided with delay, over-voltage, under-voltage, over-current and so on protection function to ensure the safety of the power supply. It has the advantage of high efficiency, no waveform distortion, stable output voltage, less electric consumption and can work continuously.
1)Excellent quality of output voltage, no transient electricity lost phenomenon when the electricity supply is not interrupted, which ensure the domestic computer and the electric appliance with memory function can work safely.
2)Wide input voltage range, strong load adaptability, the 200v and 110v can be regulated output at same time, which is convenient for these families with 110v imported electric appliance.
3)With the over-current protection when input, and the under voltage, over-voltage protection when output, it can work normally no matter it is at ended or not.
General
TSD wall hanging voltage stabilizer
1. Reliable safty
2. Output: 2000pcs/day
3. OEM
4. CE. CB. ISO, IEC
WHY US?
1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
Item
|
TSD-500VA
|
TSD-3000VA
|
TSD-5000VA
|
TSD-7000VA
|
TSD-10000VA
|
Max. rated output current
|
20A
|
12A
|
20A
|
28A
|
40A
|
Input voltage range
|
160V-250V
|
Output voltage
|
220V±3%
|
Output over-voltage protection value
|
246±4V
|
Input over-voltage protection value
|
184±4V
|
Output voltage delay time
|
5±2 min
|
Frequency
|
50Hz/60Hz
|
Response time
|
<1s(when input voltage varies 10%)
|
Temperature-rise
|
<60K(under full-load condition)
|
Ambient temp & relative humidity
|
0--5°C--40°C less than 90%
|
Efficiency
|
>90%
|
Wave form distortion
|
No additional distortion
|
Withstand voltage
|
1500V/1 min
|
CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.
Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.
We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
