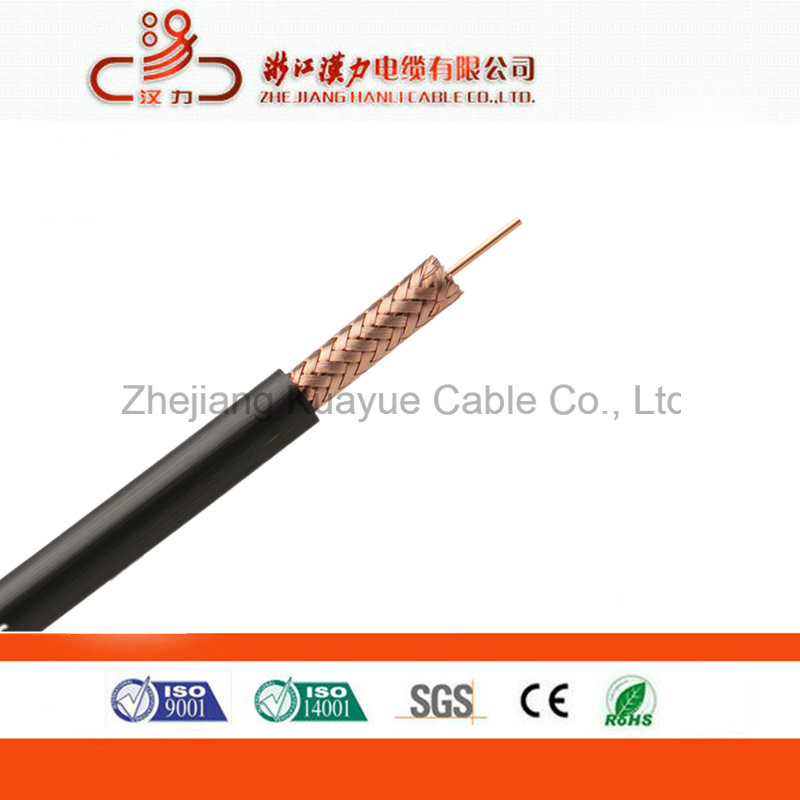

Name: Hanli Cable Rg59 CCTV Coaxial Cable Siamese Cable
Brand: all-electronics-online.com
SKU: 837533045
Availability: InStock
Rating: 4.3 (86 reviews)

Price:	US $ 18-50/Roll
Min Order:	50/Roll
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59
Color:	Black
Shield:	Al Foil+Braiding
Length:	305m
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PE
Certification:	CCC
Type:	Coaxial Cable
Model:	Rg59
Brand:	Hanli

Product Description

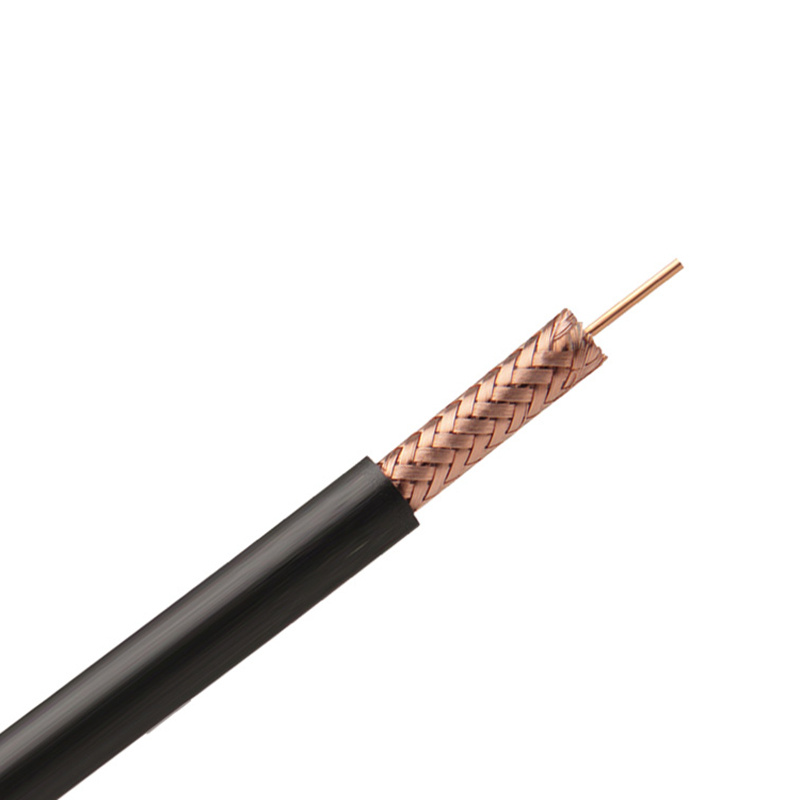

RG59 Coaxial cable
ConstructionHigh quality & competitive priceDual CTF100 with CE
1. Inner conductor: 20AWG Cu /CCS/CCA
2. Inner insulation: . FPE, SPE
3. Foil Shield: Un-bonded, Bonded, Double bonded, double un-bonded Aluminum Foil,
Copper foil, Copper Plastic Foil Available
4. Braid layer: Braiding Shield: Al, BC, TC, CCA, CCS Available
Coverage: 30%, 40%, 50%, 60%, 80% Available
5. PVC Jacket: : UV, Flame, Water retardant, LSZH, LSLH Available

Dual CTF100 Coaxial Cable 75ohm sample:
1. (0.8mmCu+3.60FPE+CU Foil+64/0.12CCA(30.8)+6.1 PVC) LSF Black RoHS
2. OEM/, Any specification can be designed according to your requirement.

Impedance	75±5Ohm
Nominal capacitance	54PF/m
Velocity of propagation	82%
Insulation resistance	>5000Mohm. Km
Inner conductor resistance	23.1Ohm/Km
Outer conductor resistance	31Ohm/Km
Operating temperature range	-30°C-+70°C
Cable weight(approx. )	43Kg/Km

Frequency(MHz)	Attenuation(dB/100m)	Attenuation(dB/100FT)
50	5	1.5
100	6.4	1.96
200	9.2	2.8
500	14.5	4.4
600	15.9	4.9
800	17.7	5.4
1000	21.9	6.7
1350	24.9	7.6
1750	29	8.8
2050	33.1	10.1
2400	36.4	11.1

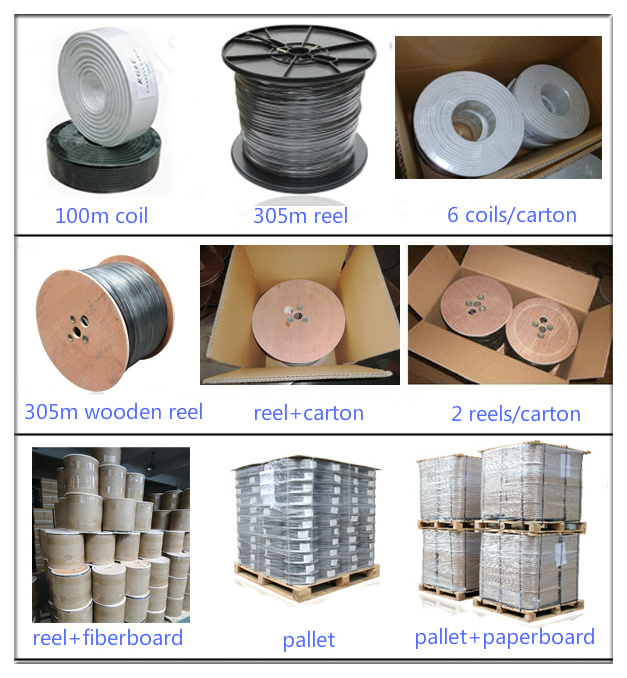

Packing

Company Information

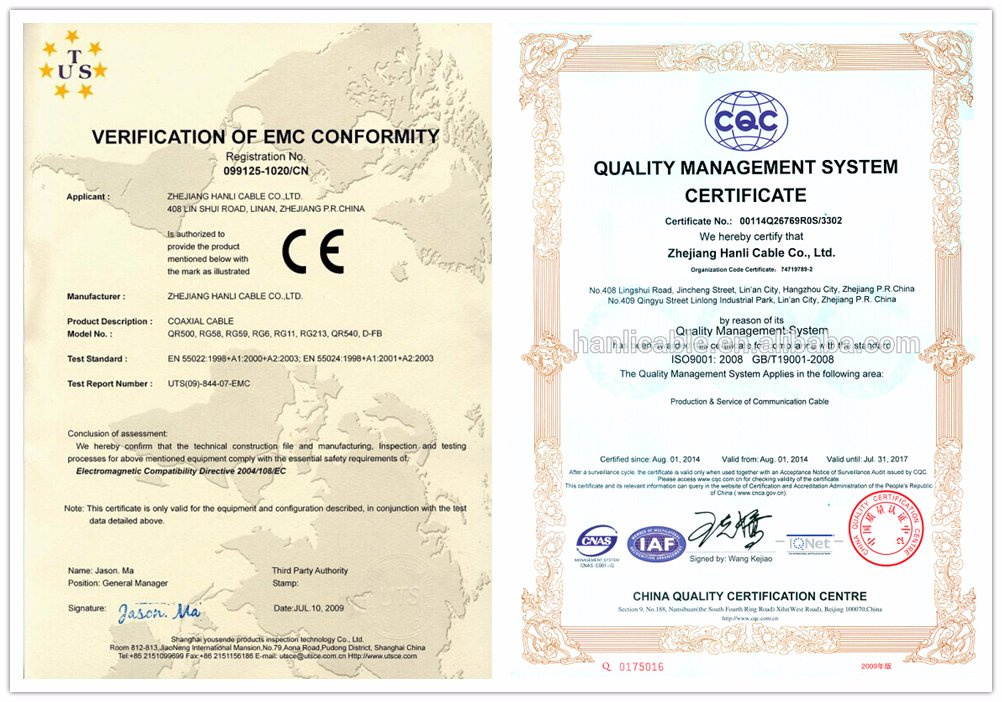

Certification

Contact Us

Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.

"Zhejiang Kuayue Cable Co., Ltd" is the subsidiary of Hanli Group. We have served many of biggest company allover world such as telecom. We have our own 3 factory with more than 300 workers and more than 20000 designs of cable,

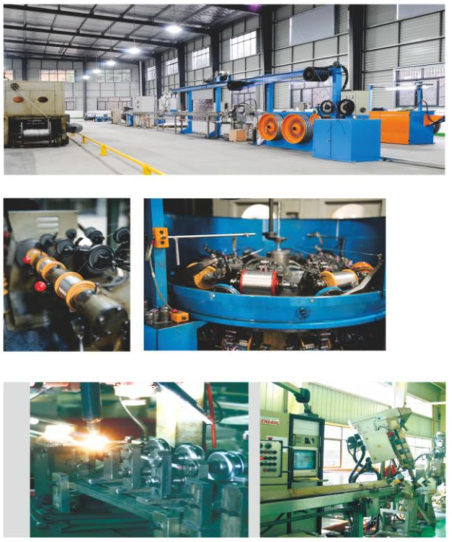

We have advanced production equipment to meet your high or special requirements. Our products have passed ISO9001, CE and RoHS certification. Our own brands "Hanli"have been widely recognized both by domestic and foreign country. We adhere to not only meet international standards but also take price in meeting customers requirement.

We can provide OEM or ODM services, and also efficient aftersales services. Please trust us can supply you with good quality products and competitive price. For more information,

Our principle: Service from Honesty, Impression from High quality!

Welcome visit our website and contact with us for any question or inquiries!
