Hans GS Tube Cutter Machine & Plate Fiber Laser Cutting Machine
| Price: |
US $ 3000-150000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GS-LFDS3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Certification: |
Ce, ISO 9001:2000 |
| Automation: |
Semi-Automatic |
| Condition: |
New |
| Type: |
Laser Cutting Machine |
| Type For Fold-Bending Machine: |
Laser Cutting Machine |
| Type For Pipe And Tube Bending Machine: |
Laser Cutting Machine |
| Power Source: |
Fiber Laser |
Product Description
HANS GS tube cutter machine & plate fiber laser cutting machine
Precision and Wear Resistance Screw Drive System
1 Smooth rolling, small friction coefficient, no empty rollingeven in micro feeding, realize nanometer located accuracy.
2 The frictional resistance of rolling is small, and the structure is simple, low abrasion of friction contact surface, thus realize the long time walking accuracy.
3 Optimal design of geometric mechanics structure, steel balls of 45° array, could not only bear the power of warp, anti-warp and cross directions at the same time, but also assure the walking accuracy.
4 Adopts special metals, wear resistant and high rigidity, integrated the advantages of other brand guide, more exquisite design, more flexible interchangeability.
Laser Cutting Machine Parameters | Model | GS-LFTP6015 |
| Output power of laser source | 500W/1000W |
| Cutting area (L*W) | 6000mm × 1500mm |
| Max tube diameter | 300mm |
| Max tube processing length | 6m |
| Max tube cutting thickness | 5mm |
| X axle stroke | 6048 mm |
| Y axle stroke | 2300 mm |
| Z axle stroke | 100 mm |
| Cooling | water cooling |
| Max accelerated speed of X, Y axles | 1G |
| Kerf Width | 0.1~0.3 mm |
| Positioning accuracy of X, Y and Z axles | ±0.05 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Processing precision of work piece | ±0.1 mm |
| Kerf harshness | Ra 3.2-12.5 μm |
| Voltage | 380V,50/60Hz |
| Continuous working time | 24 Hours |
| Max bearing weight of working platform | 600Kgs |
| Total installed capacity | 20-25 KVA |
| Total protection level of power supply | IP54 |
Machine Bed
Gantry design with double rack and guide, double drive with servo motor; Integral cast aluminum crossbeam of high performance.
Welding type machine frame with manual aging treatment; the machine bed is precision processed by gantry type milling machine to ensure the resistance to shock, rigidity and stability.
The crossbeam made of high intensity aluminum has the feature of light weight, high rigidity and good accelerating ability; precise process by gantry type milling machine after aging treatment to ensure the movement precision.
The aging treatment during the welding to remove welding stress in order to prevent the structure deformation.
HIWIN square linear guide from Taiwan with high position precision, less wear; high precision for long service time, easy installation and replacement.
Our laser cutting machines are used in Indian customer plants

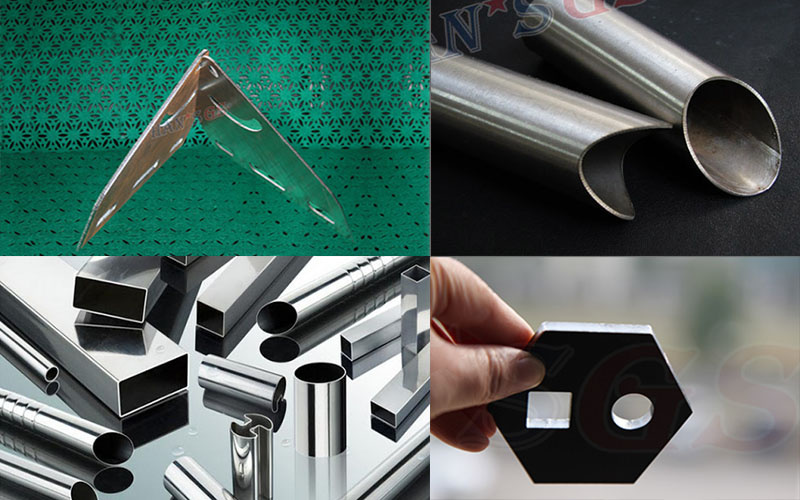

Tube Cutter Machine & Plate Fiber Laser Cutting Machine Sample
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
