Harmonized European Light Duty Flexible Cord VDE Approval PVC H05vvh2-F Flexible Flat Power Cable

Name: Harmonized European Light Duty Flexible Cord VDE Approval PVC H05vvh2-F Flexible Flat Power Cable
Brand: all-electronics-online.com
SKU: 801024335
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 0.15-2/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H05VVH2-F
Voltage:	300/500V, 450/750V
Color:	Black,Brown,Grey,Blue,Green/Yellow
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Sansen

Product Description

2 cores copper conductor PVC insulated H03VVH2-F electrical wire

Copper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation.The cable can be of flame ratardance,fire resistance and other property.

Technical Information:
1.U0 /U:300/500V,450/750V
2.Standard Applied:IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3.Max.Operating Temperature:70°C,can be 90°C,105°C as per requirent
4.Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5.Insulation:PVC
6.Cores:Single core
7.Range of Nominal cross section:0.75~240sqmm
8.Jacket:Without Jacket
9.Color:Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12.Certification:ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top

Conductor			Insulation		Maximum Resistance At 20ºC Ω/km	Packing
Spec AWG	Conductor Construction No./φmm	Diameter (mm)	Nominal Thickness (mm)	Nominal outer Diameter (mm)	Maximum Resistance At 20ºC Ω/km	M/Coils
30	7/0.102	0.3	0.40	1.10	381	610
28	7/0.127	0.38	0.41	1.20	239	610
26	7/0.16	0.48	0.41	1.30	150	610
24	11/0.16	0.61	0.40	1.40	94.2	610
22	17/0.16	0.76	0.42	1.60	59.4	610
20	26/0.16	0.94	0.43	1.80	36.7	610
18	41/0.16	1.18	0.46	2.10	23.2	610
16	26/0.254	1.49	0.46	2.40	14.6	305
14	41/0.254	1.88	0.41	2.7	8.96	305
12	65/0.254	2.36	0.42	3.2	5.64	305
10	105/0.254	3.00	0.45	3.9	3.546	305

FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

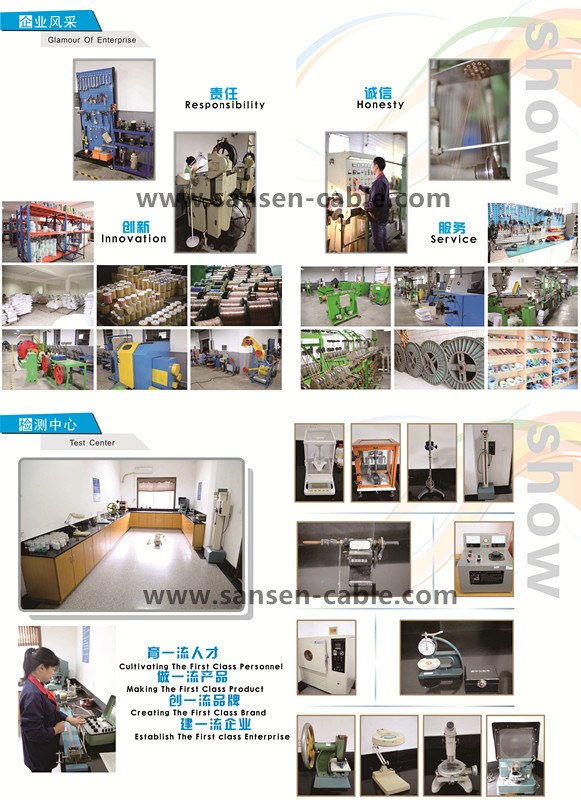

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.

At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.

We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
