| Prod Model: |
JT3051DH |
| Power Supply: |
DC12-32V |
| Mounting Hole Pitch: |
55.14mm |
| Dimension: |
Diameter=61mm |
| Measuring Pressure: |
Gp, Dp, Micro Dp |
| Operating Temperature: |
-30°c ~ +70°c |
| Transmitters Matching: |
Diffused Silicon, Strain Gauge, Level Pressure Tra |
| Sampling Rate: |
>20 Times/Second |
| Warranty: |
1 Year |
| Measuring Medium: |
Gas, Steam, Liquid |
Product Description

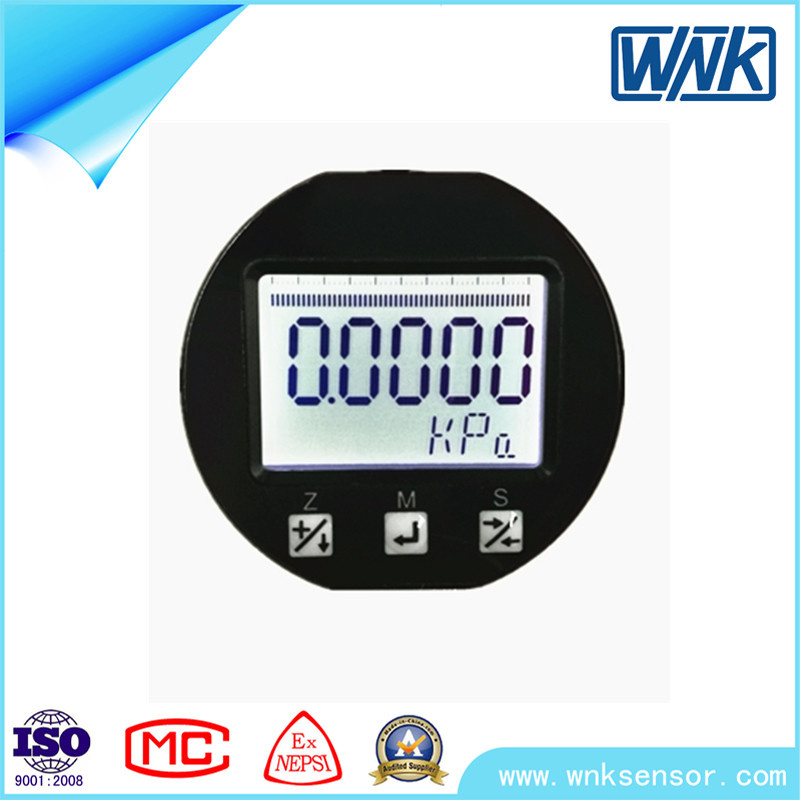

JT3051DH Capacitive HART Transmitter Circuit Board + LCD DisplayJT3051TH Diezoresistive HART Circuit Board replaced the original 4~20mA analog board. With the main body of Microcontrollers CPU, JT3051TH is capable to do logical operation and programming, combining analog and digital circuit in one machine, so it is able to output analog signal as well as carrry HART protocol signal on 4~20mA analog signal. Parameters configuration and compensation of transmitters can be done by buttons, HART communicator and HART configuration programs. JT3051TH provides constant current excitation way for sensors, supporting standard diffused silicon, piezoresistive ceramic, single crystal silicon and level sensors. It is suited for standard 3051 housing.
Features - Diezoresistive HART Circuit Board: 1.Easy adjusting by buttons: on-site span changing by LCD module buttons free from standard pressure source
2.High accuracy: for intelligent board, AD accuracy > 20 bits, DA accuracy > 16 bits;
3.Electrical isolation: > 1500VDC
4.Good stability: Linearity better than 0.05% (with sensors), temperature compensation accuracy better than 0.5%
5.Data backup and restore
6. Strong capability for anti-disturbance: Leading military-grade hardware and software anti-disturbance technology.
7.Excellent price-performance ratio: good performance with heading circuit board provides economical solutions.
8.HART communication protocol
Technical Parameters - Diezoresistive HART Circuit Board:
| Supply power | DC12-32V (DC 24V is suggested) |
| Matching sensor | standard diffused silicon, piezoresistive ceramic, single crystal silicon and level sensors |
| Sampling rate | >20times/s |
| Displaying and bits | LCD with backlight, displaying 5 bits, and 4 decimal places |
| Displaying interface | English or Chinese,displaying pressure, temperature/current/ percentage(interactive display) and 0-100% analog displaying |
| Output resolution | 1uA |
| Temp. compensation accuracy | -30~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor) |
| Linearity accuracy | Complete machine linearity is better than 0.2% (Multi-point calibrating is available as required) |
| Stability | 0.2%/Year |
| Anti-disturbance | Power isolation, signal isolation (magnetic isolation), electrical isolation |
| Range ratio | 100:01 |
| Circuit protection Measurement | surge current protection, Reverse Power Protection |
| Circuit design | Intrinsic safety |
| Isolation range | >200M |
| Communication Protocol | HART |
| Adjusting method | by buttons on LCD head, program on pc or communicator, communicator |
| Dimensions | OD=61mm, Mounting hole pitch=55.14mm (suited for pressure and level transmitter in 3051 housing) |
| Motherboard buttons operation | reset, lower range calibration(zero drift under pressure source), upper range calibration (full scale calibration) |
| LCD head buttons operation | changing span units, decimal place, damping time, currant fixing, output features, current fixxing, write-protection,calibration (zero clearing, lower point and full scale calibration), language setting, media density (only unit M) and factory |
