Product Description

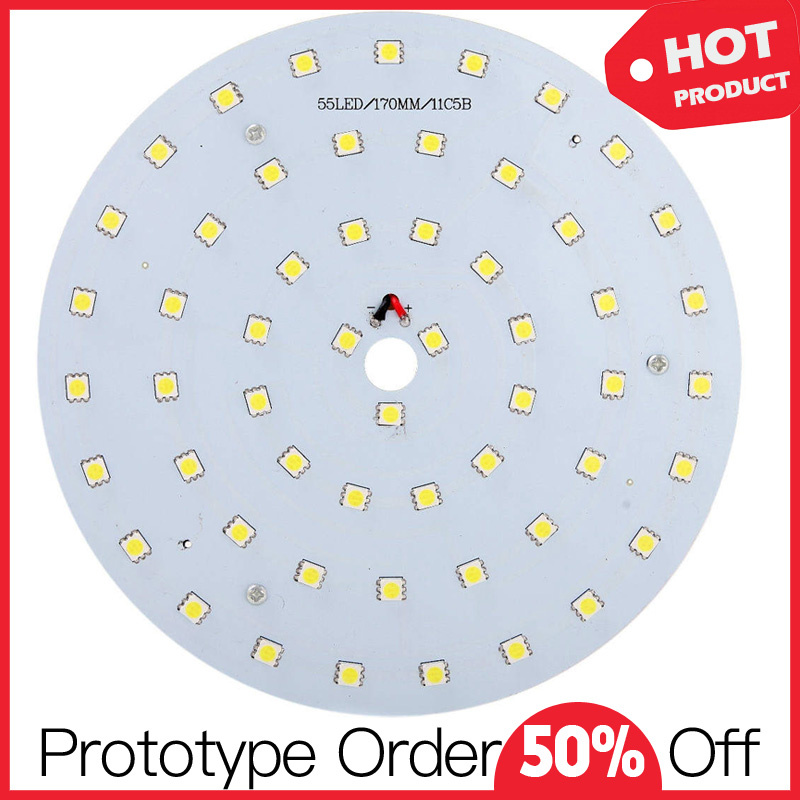

HASL 94V0 Aluminum PCB for LED Manufacturing
Why Choose Us 1. Your inquiry related to our products or prices will be replied in 24hrs.2. Well-trained and experienced staffs to answer all your inquires in fluent English3. OEM&ODM, we can help you to design and put into product.4. Distributorship are offered for your unique design and some our current models5. Protection of your sales area, ideas of design and all your private information
The Characteristics of the Aluminum PCB1.Using surface mount technology (SMT)
2.In the circuit design of thermal diffusion is extremely effective treatment
3.Lower operating temperature, improve the power density and reliability, prolong the service life of products;
4.Reduce the size of our products, reduce the hardware cost and assembly
5.Instead of brittle ceramic substrates, better mechanical enduranceThe Following Table Presents Some of Our Aluminum PCB Core Materials| Items | Performance Index (Measured value) |
| Peeling strength (n/mm) | 1.8 |
| Insulation resistance (ω) | >1*10 g |
| Breakdown voltage (vdc) | >2 k |
| Soakable soldering (°C/m) | 280°C / 260°C, 1 min, no bubble & delamination |
| Thermal conductivity (ω/m-k) | >0.8 |
| Thermal resistance (°C/ω) | < 1.2 |
| Combustibility | fv-o |
| Dielectric constant (1mhz) | 4 |
| Dielectric loss angle (tangent) | 0.03 |
Our Aluminum PCB Manufacturing Capabilities
Our aluminum PCB manufacturing capabilities can meet almost 95% demand of customer requirements and actually we concentrated on this field for decades, so plant facilities have been advanced to high level and your intelligent manufacturing could be well handled here| Features | Capability |
| Quality Grade | Standard IPC 2 |
| Number of Layers | 4 - 24layers |
| Order Quantity | 1pc - 10000+pcs |
| Build Time | 2days - 5weeks |
| Material | Aluminum core (Domestic 1060), Copper core, FR4 covering |
| Board Size | Min 6*6mm | Max 610*610mm |
| Board Thickness | 0.8mm - 5.0mm |
| Copper Weight (Finished) | 0.5oz - 10.0oz |
| Min Tracing/Spacing | 4mil/4mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finish | HASL - Hot Air Solder Leveling |
| Lead Free HASL - RoHS |
| ENIG - Electroless Nickle/Immersion Gold - RoHS |
| Min Annular Ring | 4mil |
| Min Drilling Hole Diameter | 6mil |
| Other Techniques | Countersink holes |
| Screw holes |

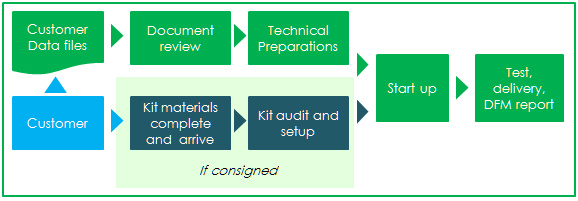

Our Aluminum PCB Manufacturing Process
About UsAs a service-leading Aluminum PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.We are offering Aluminum PCB manufacturing and assembly services to following big customers all over the world
Your Aluminum PCB demand will be perfectly handled by our professional production line and responsible work team.
Frequently Asked Questions (FAQs)How we ensure the quality of circuit board manufacturing and assembly?We choose top sheet suppliers to ensure stable performance (general FR-4). During the manufacturing process, automatic copper plating lines and high-speed drilling machines (brand:TMAX) to make accuracy and fast delivery guaranteed. All printed circuit board will be detected by advanced automatic flying probe machines (or test frame ) at subsequent stages to make sure each PCB is OK from inner circuits to outside shape. How long will you get our quotation of PCB manufacturing and assembly?In general, PCB sample is delivered in 24~72 hours (urgent order less than 24 hours). Volume production can be completed in 7 working days. If for subsequent PCB assembly and test requirements, the lead time could be less than 15 days. What kind of files you have to send us to get quotation?You have to send us PCB design files (gerbers or .pcb acceptable), Bill of Materials (BOM), Quantities to make quote and other technical requirements (.step/.txt/.xls files acceptable) What payment methods we can support?We accept T/T, L/C, West Union as payment methods. For prototype order, you have to make 100% payment in advance, but for mass production 70% payment in advance and 30% payment before delivery. What measures we take to avoid counterfeit components?Procurement only from manufacturer or big general agentOriginal quality certificate of component can be issued (if necessary)Inspections of shape, silkscreen and conductivity attributes in incoming quality controlStrong responsibilities and perspectives of long-term relationship What measures we take to protect clients IP and confidentiality?Sign NDA (Non-disclosure Agreement)Using number code in stead of client name during manufacturing processSeparate assembly workshop and taking photo is NOT allowedDocuments of engineering process are archived and reservedIf you have any questions, feel free contact us any time.
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.
So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
