Hbm Rocker Pin Load Cell C16A

Name: Hbm Rocker Pin Load Cell C16A
Brand: all-electronics-online.com
SKU: 682732191
Availability: InStock
Rating: 4.9 (41 reviews)

Price:	US $ 130/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QD-S2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP Grade:	IP68
Overload:	150%Fs
Seal Way:	Tight Sealing
Capacity:	10t~60t
Material:	Alloy Steel

Product Description

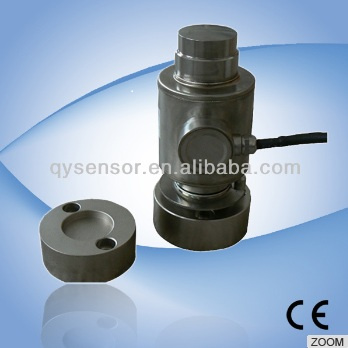

Hbm Rocker Pin Load Cell C16A

Product Discription:

1. Alloy steel material, stable and reliable performance.
2. Easy to install and adjust high interchangeability.
3. Measuring range: 10t~60t.
4. Force transmission component is indenter and steel-ball structure, it can reset automatically.
5. Good performance of side force resistance and impact resistance, tight sealing, long-time stability.
6. Application in the weighing system like truck scale, track scale and hopper scale.

Futures:

Capacity :10t of 40t
Defend grade: IP67 & IP68
High accuracy.
Alloy steel & stainless steel single shear beam.

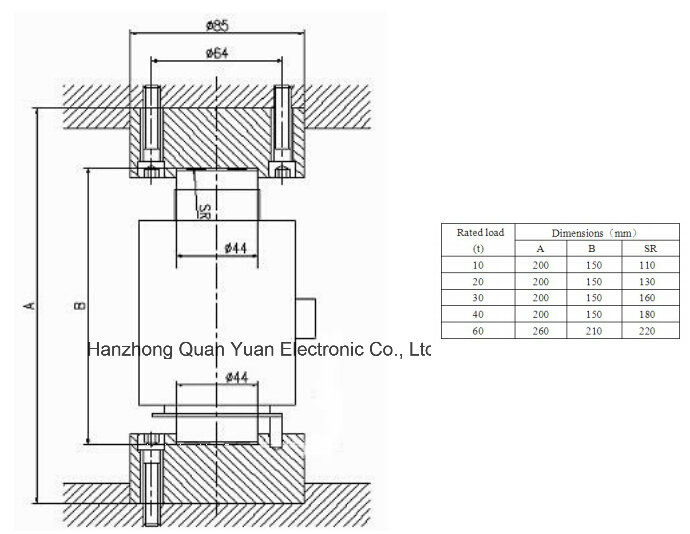

Electrical connection and Dimensions:

Technical Specifications:

Rated Load	t	10,20,30,40,50,60
Digital Module Resolution	code	100000
Accuracy Rate	%FS	±0.02
Linearity Error	%FS	±0.02
Hysteresis Error	%FS	±0.02
Repeatability Error	%FS	±0.01
Creep Error	%FS/30min	±0.02
Temp. Effect on ZERO	%FS/10ºC	±0.02
Temp. Effect on SPAN	%FS/10ºC	±0.02
Transmission Range	m	RS232≤30m;RS485≤1000m
Baud Rate	BPS	600/1200/2400/4800/9600
Zero Output	%FS	±0.1
Safe Overload	%FS	150
Excitation Voltage	V	9~12(DC)
Compensated Temp.	ºC	-10~+60
Operating Temp.	ºC	-20~+60
Defend Grade	IP	IP67,IP68

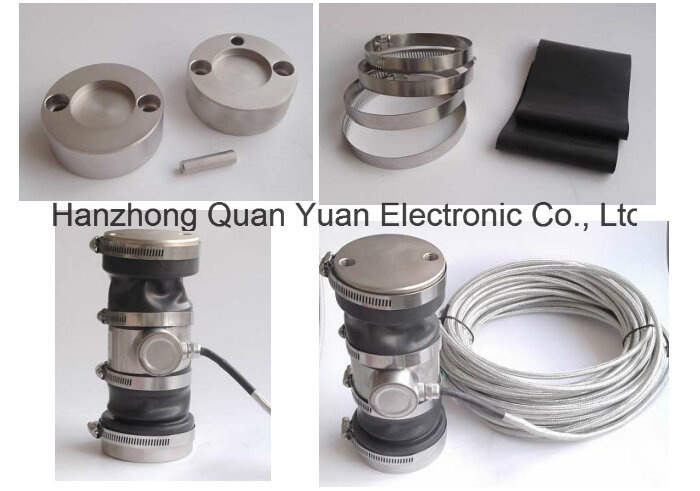

Accessories:

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
