Hc-Sr04 Open Type Ultrasonic Sensor Module for Robort

Name: Hc-Sr04 Open Type Ultrasonic Sensor Module for Robort
Brand: all-electronics-online.com
SKU: 835377925
Availability: InStock
Rating: 4.5 (126 reviews)

Price:	US $ 0.7-1.2/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MK-AT1640H12R ultrasonic sensor module
Product Name:	Hc-Sr04 Open Type Ultrasonic Sensor Module
Name:	Open Type Ultrasonic Sensor Module
Material:	Aluminum
Function:	Transmitting or Receiving
Size:	16mm Module
Working Voltage:	DC 5V
Static State Current:	5mA
Electrical Level Output:	5V High
Measurement Range:	2cm~800cm
Accuracy:	0.5cm

Product Description

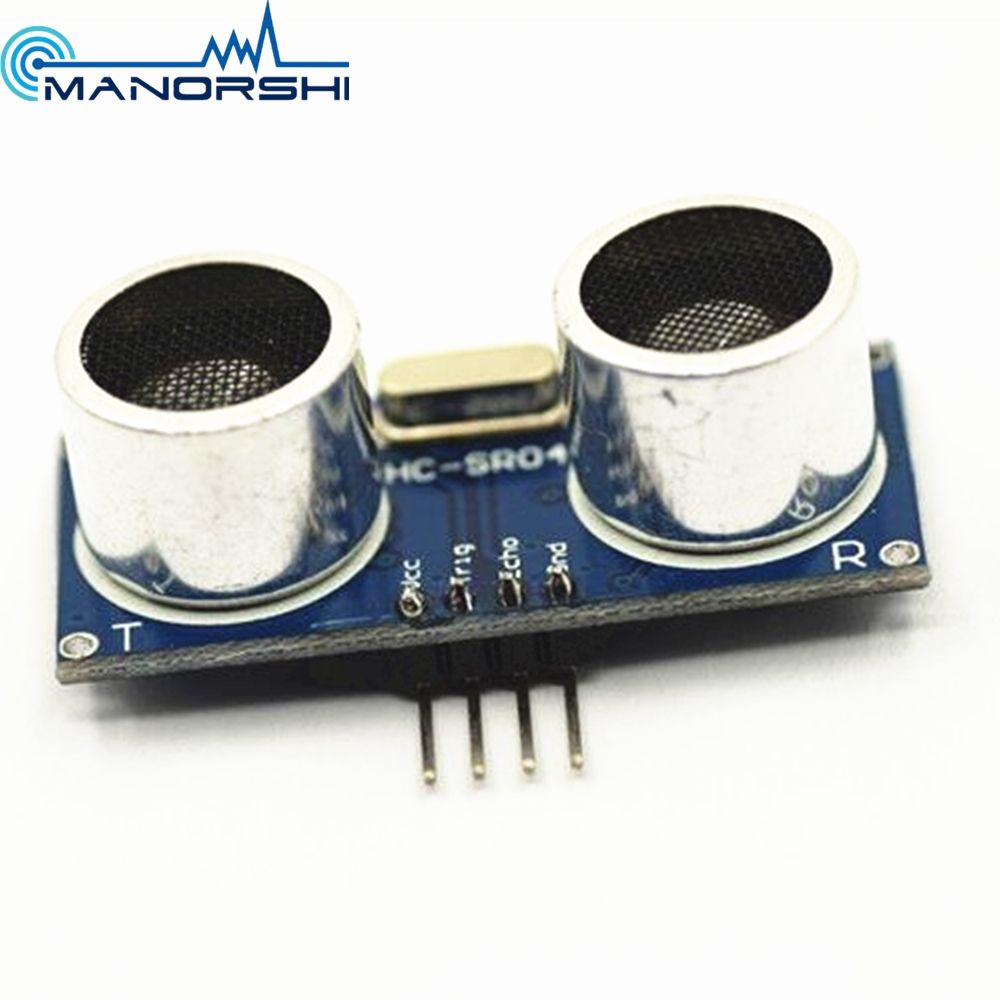

HC-SR04 Open Type Ultrasonic Sensor Module for Robort

Product Description

Control port sends a high of more than 10us then wait for the high output at the receiving port.Once there being output can open the timer timing,when the port goes low timer value can be read,this is for the distance of time,can calculate the distance.Uninterrupted period measurement, mobile measurement value can be obtained.

Module Working Principle

1.Adopt IO trigger through supplying at least 10us sequence of high level signal.

2.The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal.

3.If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving.

4.Test distance = (high level time * sound velocity (340M/S) / 2.
