| Prod Model: |
HCDPY324090 |
| Certificate: |
UL |
| Application: |
Refrigeration, Air Conditioning and Heating |
| Frequency: |
50/60Hz |
| Material: |
High Arc-Resistant Phenolic Resin |
| Insulation System: |
Class F |
| Color: |
Black |
| Electrical Life: |
250, 000 Times |
Product Description

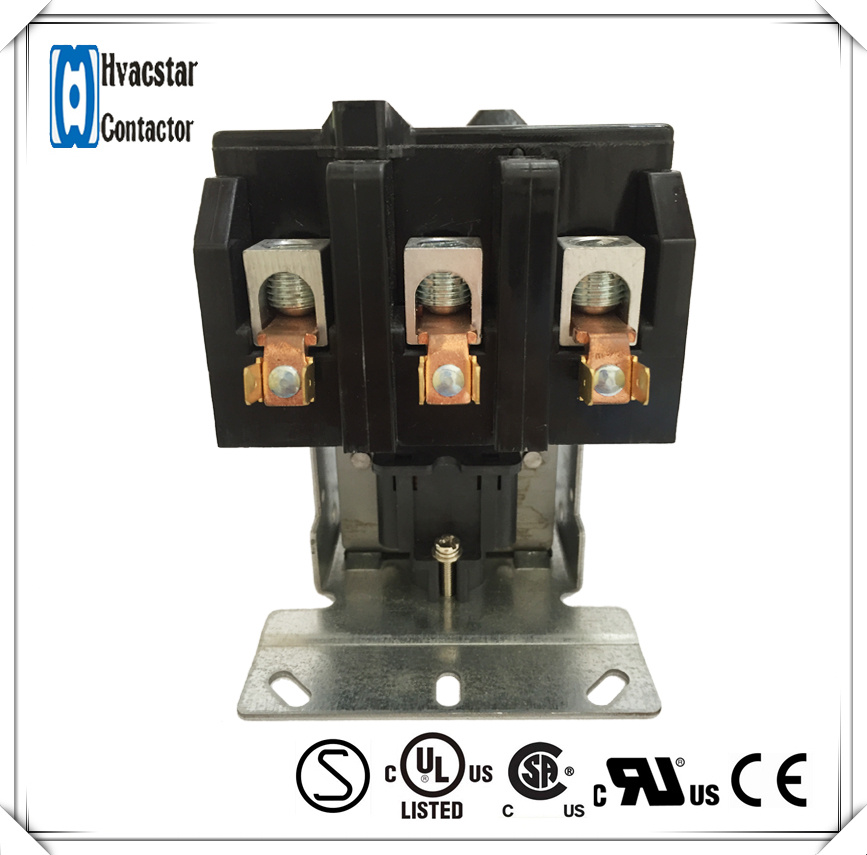

HCDP324090 HCDP 3P 90A 240V Magnetic Contactor UL Certified DP Contactor
About Us:
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors including DP Contactors, LC1 series contactors , Founded in Mingguang City,China, in 2005, stepped into the HVAC industry as a reliable source .
Our strongest domestic suppliers and our vast experience with global trading, allows us to bring the most innovative and highest quality products available to our customers.
Products Details
| FLA | 90 |
|
| Poles | 3 |
| Resistive Amps | 120 |
| Coil Voltage | 240 |
| Hertz | 50/60 |
| Locked Rotor Amps 240/480/600 | 540/450/360 |
| Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options. |
| Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits. |
| Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc. |
| Replaces: Siemens/42GE35AG106,Cutler-Hammer/C25GNF390B,Hartland Controls/HCCY3XU09CJ303. |
Products Application
HCDP series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.
Main Production Data
• Silver Cadmium Oxide Contacts
• Ranges: 20 - 90 FLA
• Poles: 1pole, 1.5pole , 2pole , 3pole, 4pole
• Coil Voltages: 24, 110/120, 208/ 240, 277 VAC
• Terminations: #10-32 screw - 20, 25 & 30 FLA Models,
Box Lug - 40, 50, 60, 75 & 90 FLA Models
• Temperature Range: - 40°F to + 150° F / - 40°C to + 65° C
• UL Listed, CSA, S MARK , CCC Approved

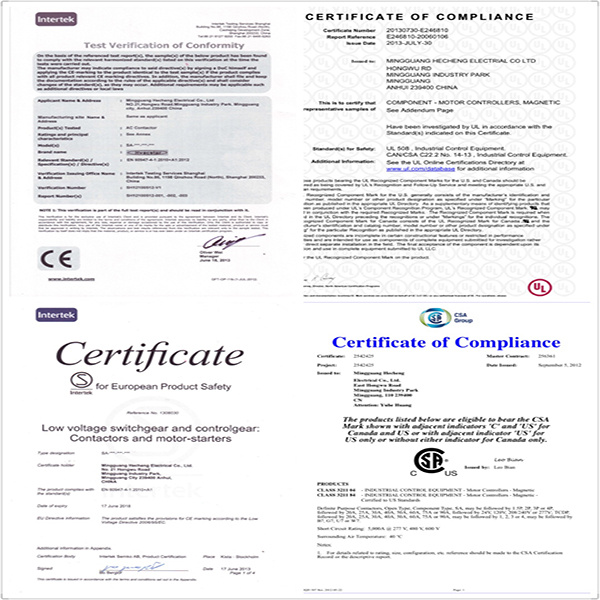

Certification

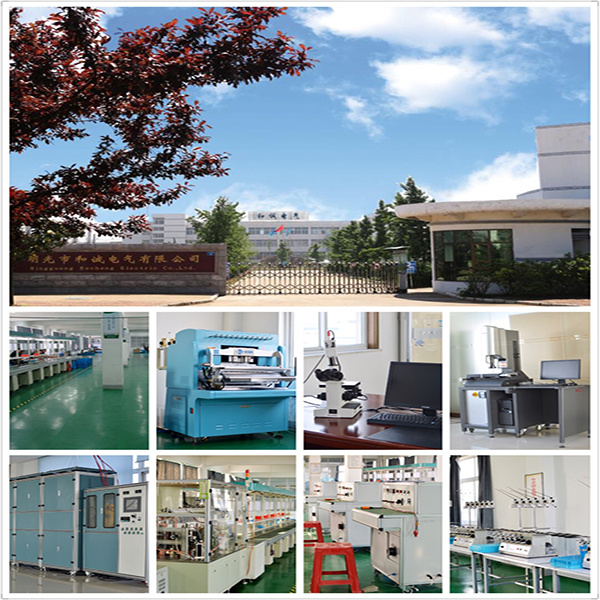

Our Factory:
Packing&Shipping
FAQ
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
Any inquiry Please feel free to let me know !!!!
Contact: Ivy Xia
WA:+86 13868392506
Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.
From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.
We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.
If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
