| Prod Model: |
HCDPY124020 |
| Color: |
Black |
| Certificate: |
UL, Ce, CCC, S |
| Material: |
High Arc-Resistant Phenolic Resin |
| Application: |
Refrigeration, Air Conditioning and Heating |
| Delivery Time: |
30 Days After Deposit |
Product Description

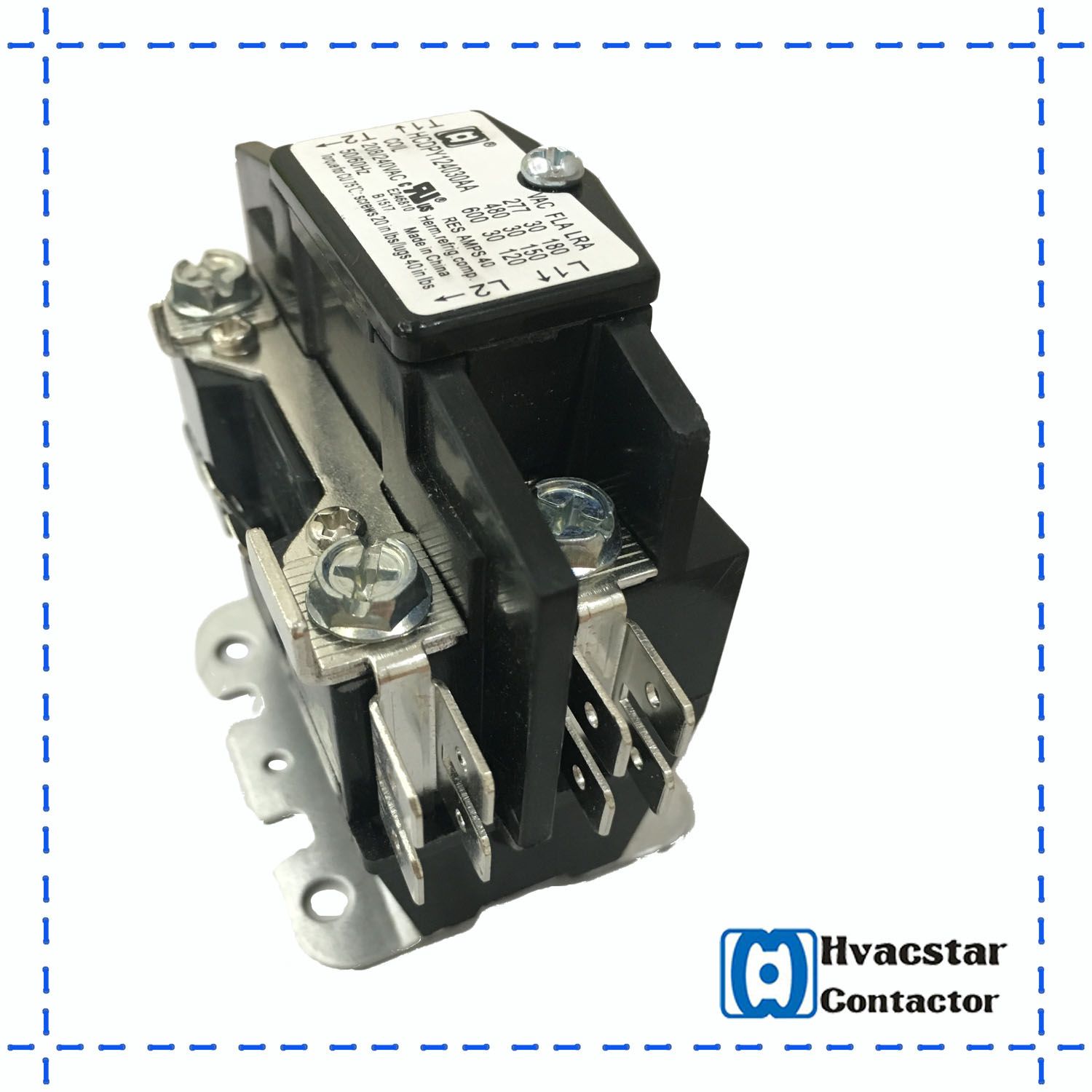

Definite Purpose AC Contactor 1 Pole 20A 240V Electrical Contactor
Product Details:
With life cycles exceeding 250,000 electrical and 1,000,000 mechanical, the HCDP series of definite purpose contactors and auxiliary switches are built to offer you maximum dependability.It's an ideal one-for-one replacement for the Furnas DP contactor, and no matter which way it's mounted, its performance remains strong.It also meets the ARI 780/790 standard .HECHENG® High arc-resistant phenolic resin material hold stationary terminals,positions actuator, and magnet/coil assembly.It has much stronger endurance and insulating ability than normal contactors .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Contact rating:
| Voltage | 240 V ac | 480 V ac |
| MODEL | FLA(A) | LRA(A) | LRA(A) |
| HCDP_1 | 20 | 120 | 100 |
| 25 | 150 | 125 |
| 30 | 180 | 150 |
| 35 | 210 | 175 |
| 40 | 240 | 200 |
| HCDP_2 | 20 | 120 | 100 |
| 25 | 150 | 125 |
| 30 | 180 | 150 |
| 35 | 210 | 175 |
| 40 | 240 | 200 |
| HCDP_3 | 20 | 120 | 100 |
| 25 | 150 | 125 |
| 30 | 180 | 150 |
| 35 | 210 | 175 |
| 40 | 240 | 200 |
| 50 | 300 | 250 |
| 60 | 360 | 250 |
| 75 | 450 | 375 |
| 90 | 540 | 375 |
| HCDP_4 | 20 | 120 | 100 |
| 25 | 150 | 125 |
| 30 | 180 | 150 |
| 35 | 210 | 175 |
| 40 | 240 | 200 |
Advantages:
High arc-resistant phenolic resin material hold stationary terminals,positions actuator, and magnet/coil assembly.It has much stronger endurance and insulating ability than normal contactors .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
Advantage:
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
Options:
1, 2, 3 and 4 Pole Configurations 24, 120, 240 and 480 VAC Coils Wide range of electrical ratings Screw, Box or Pressure Plate Connections NEMA mounting base.NO/NC End Switch Kits |
Technical Specifications:
Electrical Contact Ratings:20 to 90 AMPS Electrical Coil Ratings:24 to 600 VAC Life Rating:100,000 & 250,000 Cycle Options |
APPLICATIONS:
Designed ideally for the HVACR industry, the most common applications of our contactors
Are found in Refrigeration, Air Conditioning and Heating.
Other applications include:
• Food service equipment
• Vending machines
• Compressors
• Pumps
• Cranes
• Hoists
• Welding machines
• Power supplies
• Lighting
Features:
Meets The ARI 780/790 Standard
Universal metal mounting plate allows for complete ease of replacement
Long electrical life; tested to 250,000 cycles
Reliable mechanical life; tested to 1,000,000 cycles
EE magnet assembly assures optimal performance without sacrificing power consumption
Superior copper coil
Performance unaffected by mounting position
Flexible termination options suitable for various applications
Dust-free internal constructions
FAQ
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
