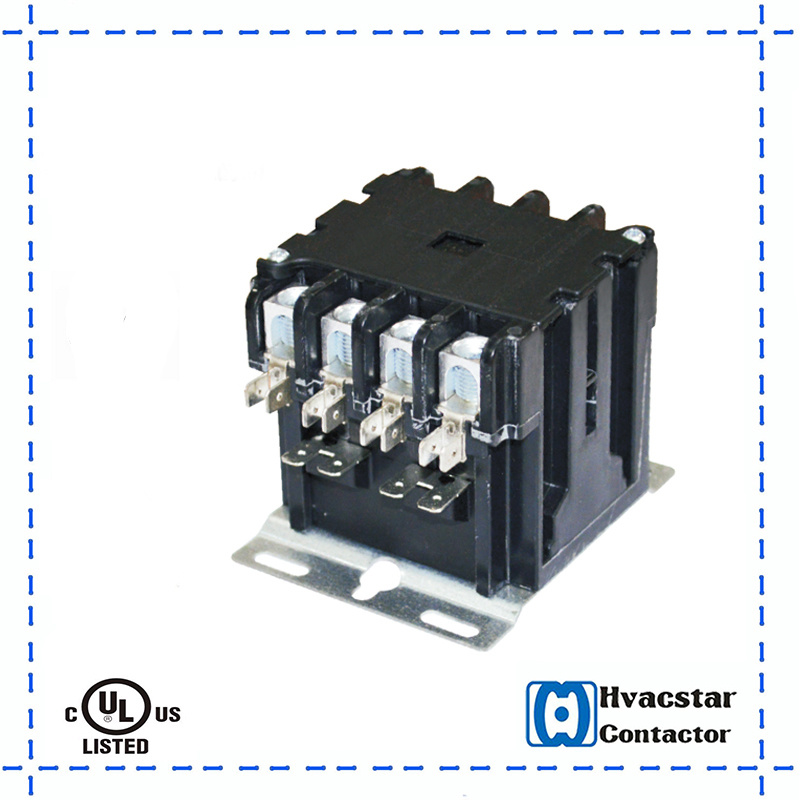

Hcdp Series Air Conditioner Contactor for 4 Poles 40A 240V

Name: Hcdp Series Air Conditioner Contactor for 4 Poles 40A 240V
Brand: all-electronics-online.com
SKU: 822311145
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	US $ 7.2-9.2/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HCDPY424040
Color:	Black
Certificate:	UL, CCC, Ce, S, CSA
Material:	High Arc-Resistant Phenolic Resin
Application:	Refrigeration, Air Conditioning and Heating

Product Description

Definite Purpose Contactors 4 Pole 40A with Competitive Price

Specifications:

FLA	120V	240V		480V		600V		Non Inductive Amps	Poles
FLA	Hp	LRA	Hp	LRA	Hp	LRA	Hp	Non Inductive Amps	Poles
25	-	150	5	125	75	100	7.5	35	4
30	-	180	7.5	150	10	120	10	40	4
40	-	240	10	200	15	160	15	55	4
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc.

Advantages:
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .

Features:
Meets The ARI 780/790 Standard
Universal metal mounting plate allows for complete ease of replacement
Long electrical life; tested to 250,000 cycles
Reliable mechanical life; tested to 1,000,000 cycles
EE magnet assembly assures optimal performance without sacrificing power consumption
Superior copper coil
Performance unaffected by mounting position
Flexible termination options suitable for various applications
Dust-free internal constructions
