Hcdp Series Dp Contactors Snap-on Side Mounted Modifications Auxiliary Switch

Name: Hcdp Series Dp Contactors Snap-on Side Mounted Modifications Auxiliary Switch
Brand: all-electronics-online.com
SKU: 819894875
Availability: InStock
Rating: 4.8 (68 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HCACR0
Color:	Black
Certificate:	Ce, UL, CCC, CSA, S
Application:	Refrigeration, Air Conditioning and Heating
Delievery Time:	30 Days After Deposit

Product Description

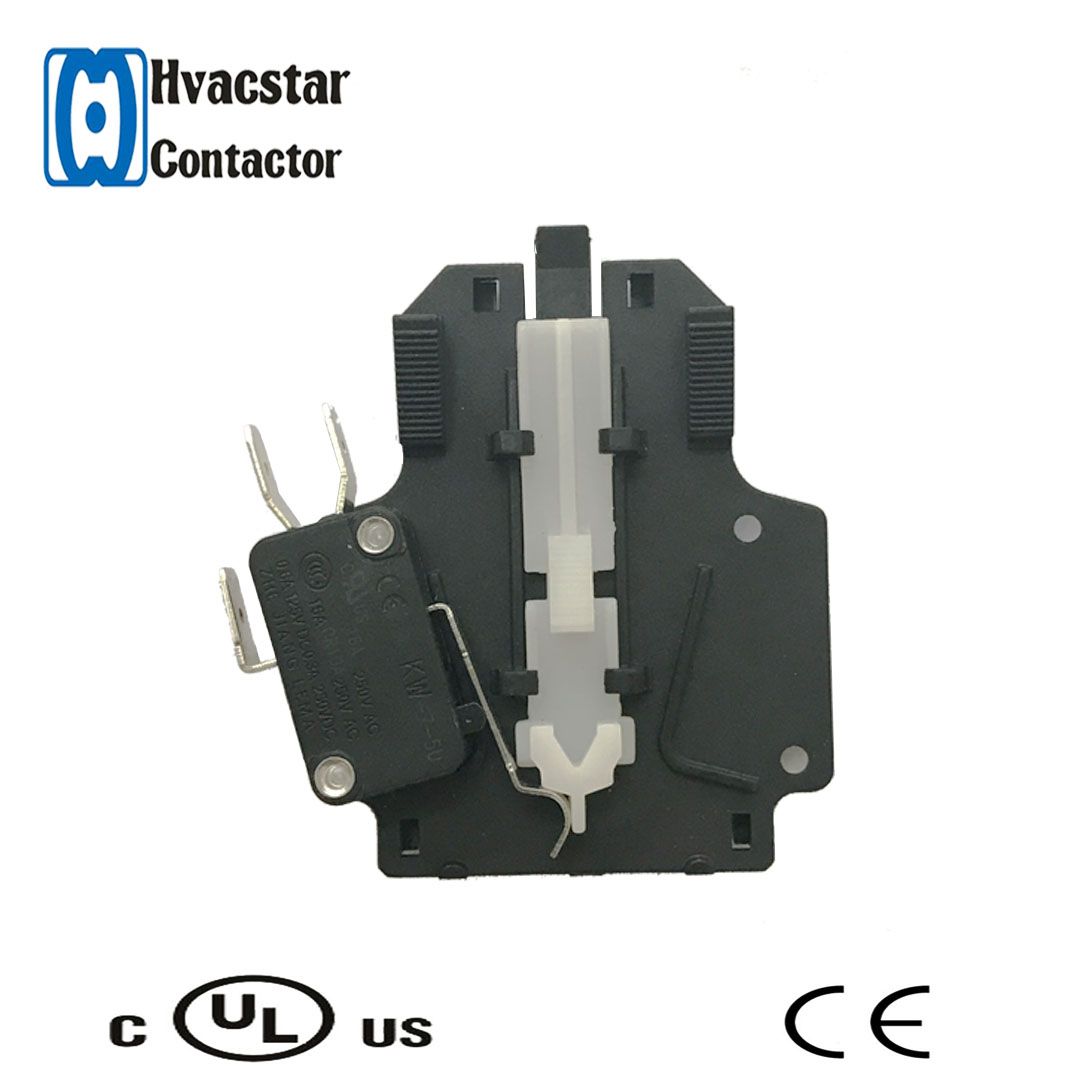

AUXILIARY SWITCH

Type:SPDT at position 2.

Specification:

Description	Poles	Contactor FLA	Auxiliary Contacts
Snap-on Side Mounted Auxiliary Switch	2P-3P	25-60	1 NO
			1 NC
			1 NC & 1 NO
			2 NO
			2 NC
			1 SPDT
			2 SPDT
	2P-3P	75-90	1 NO
			1 NC
			1 SPDT
Mechanical Interlock	2P-3P	25-60	-

Advantages:
High arc-resistant phenolic resin material hold stationary terminals,positions actuator, and magnet/coil assembly.It has much stronger endurance and insulating ability than normal contactors .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .

Features:
Meets The ARI 780/790 Standard
Universal metal mounting plate allows for complete ease of replacement
Long electrical life; tested to 250,000 cycles
Reliable mechanical life; tested to 1,000,000 cycles
EE magnet assembly assures optimal performance without sacrificing power consumption
Superior copper coil
Performance unaffected by mounting position
Flexible termination options suitable for various applications
Dust-free internal constructions
