HD-3020 HD-2020 20mm Non-Screen Shield Inductive Proximity Switch Sensor 50X50X50

Name: HD-3020 HD-2020 20mm Non-Screen Shield Inductive Proximity Switch Sensor 50X50X50
Brand: all-electronics-online.com
SKU: 840299925
Availability: InStock
Rating: 4.7 (94 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HD
Standard:	Standard
Certification:	CE
Type:	Proximity Sensor
Principle:	Inductive
Wires:	2-Wires, 3-Wires,4-Wires

Product Description

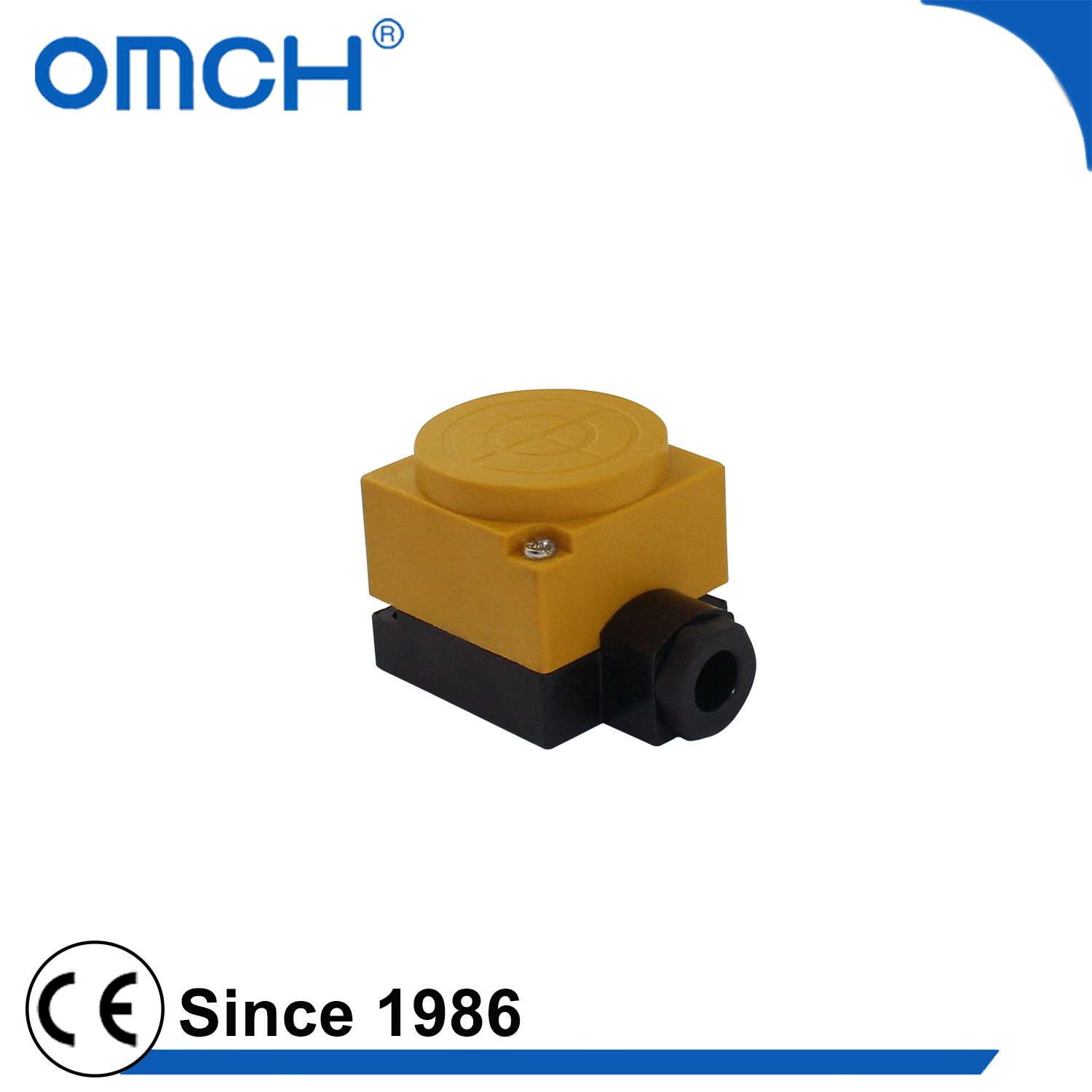

HD-3020 HD-2020 20mm Non-screen Shield Inductive Proximity Switch Sensor 50x50x50

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature
We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Ecnomic and simple operation

Long service life, high reliability and strong resistance property to environment

Red LED indicates that it's available to derect the sensor operating state

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

Dimension				50x50x50
Mounting way				Non-Screen shield type
T Y P E	DC type	N P N	NO	HD-3020A
			NC	HD-3020B
			NO+NC
		P N P	NO	HD-3020C
			NC	HD-3020D
			NO+NC
		Two wire	NO	HD-3020AL
			NC	HD-3020BL
	AC type	Two wire	NO	HD-2020A
			NC	HD-2020B
		Three wire	NO+NC	HD-2020AB
Detection distance				20 mm+/-10%
Set distance				0~17mm
Standard detection object				Iron50501
Response frequency				DC:0.5Khz AC:25Hz
Delay distance:				10% below of the detection distance
Detection object				Magnetic metal (the detection distance decreases when it is non-magnatic metal)
Supply voltage				DCtype:DC12-24V(6-36V)Impulse(p-p)10%below Actype:AC110-220V(36-250V)50/60Hz
Insulation resistance				50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage				AC1000V50/60Hz 1 min between charging and housing
Temperature influence				Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence				Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture				IP65 ICE specification
material				(Housing ABS), Detection surface:ABS)
