| Prod Model: |
LLT-AUDI-VER4.5.1 |
| Device Type: |
Video Interface |
| Main Frequency: |
1.6 GHz |
| Suitable Model: |
Audi |
| Android Version: |
4.4/5.1 |
| Video Support: |
HD 1080P |
| WiFi / Bluetooth: |
Yes |
| RAM: |
1/2 GB |
| Storage: |
8/16 GB |
| Type: |
GPS Navigator |
| Use: |
Automotive |
| Screen Size: |
Suit for Origin Car Screen |
| Model: |
Llt-Audi-Ver4.5.1 |
| Brand: |
Lsailt |
Product Description
Car Android Navigation System Video Interface box For 2010-2015AUDI A5 A4 A6 A1 A7 A8 Q3 Q5 Q7 (3G MMI SYSTEM) Upgrade Touch Navigation,WIFI,BT, MirrorLink,HD 1080P Google MAP Play Store Voice
Android's features:- Android 5.1 & 4.4 system, Quad core 1.6GHz A9 chip, faster running speed.
- Compatible all Android app include YouTube, Waze, Real-time & offline navigation etc.
- Car origin rear view & front view is compatible, DVR, 360 panorama, TV box, TPMS optional.
- Connection include Wi-Fi Bluetooth USB.
- Could be switch to origin system with just one click on dashboard and steering wheel.
- Simple plug & play installation.
Brand: Lsailt Model: LLT-AUDI-VER4.5.1
Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android Navigation Box;
Suitable car model: 2010-2015AUDI A5 A4 A6 A1 A7 A8 Q3 Q5 Q7 (3G MMI SYSTEM)
Upgrading Function:Touch Android Navigation System,Trajectory Reversing,Front View,DVD,TV,360 Panoramic,DVR,TMPS etc.
Universal Product Information
| Origin | Shenzhen | Trademark | Lsailt |

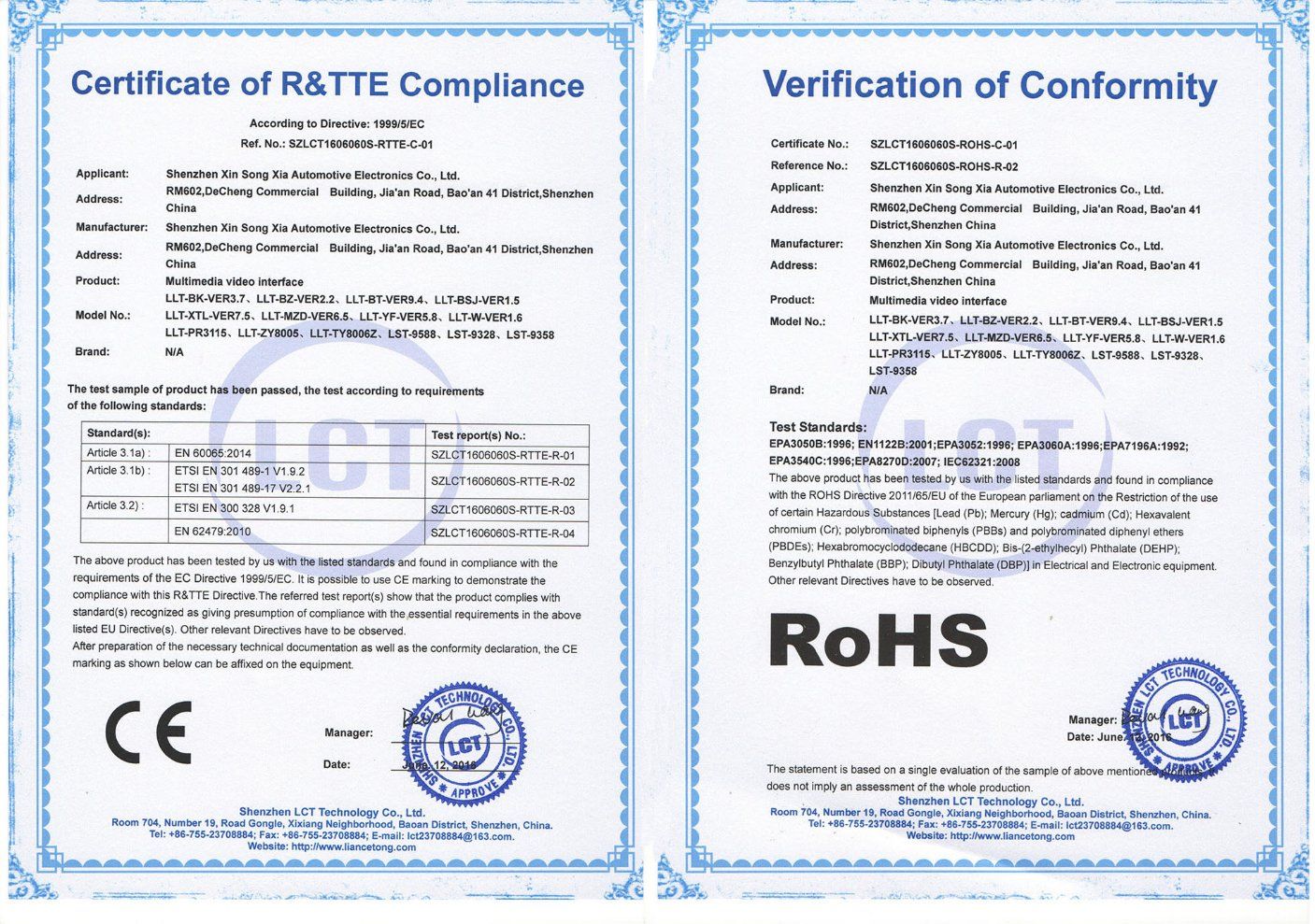

| Product Model | LLT-AUDI-VER4.5.1 | Standard | CCC,CE |
| Type | Android Video Interface | Use | Automotive |
Trade Terms
| Min. Order | 1Set | Unit Price | Negotiation |
| Trade Terms | FOB | Payment Terms | T/T or Western Union, PayPal |
| Supply Ability | 2,000pcs/month | Delivery Time | 7 working days after received your payment |
| Packaging Details | Standard Export Carton | HTTP | www.lsailt.com,www.carnavigationbox.com |
| SIZE | 155*90*20 (MM)x2 | GR. WT | 2KG/SET |
Custom Properties
| Way to Install | Original Car Screen Installation | Advantage | Retains All Features |
| RGB IN | Support | AV IN | AV1 or AV2 |
| DVR IN | Support | Rear View | Support |
| Front View | Support | 360 | Optional |
| CPU | 1.6GHZ | RAM | 1GB/2GB |
| Flash | 8GB and 16GB | HD Video | 720P/1080P |
| Working voltage | 9-12V | OS | Android4.2.2/4.4.4 |
| HVGA | 800X480 | MAP | GOOGLE MAP/IGO |
| Play Store | Support | Voice | Support |
| WIFI | Support | Specific Features | One-Key Reset |
| BT | Support | MirrorLink | Support |
Advantage for Upgrading
1.Nondestructive installation design, do not damage the original car lien, special interface wire, plug-up installation without wire cut;
2.Select installation function freely (handwritten navigation, BT, DVD, Reversing, 360 panoramic, automobile data recorder, TMPS, mobile Internet app etc).Make low-end surpass high-end, and make up the function defect of high-end car;
3.Technology is comparatively reliable; Do not involve in the original car agreement. Technology risks are fewer and safer comparatively;
4.Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function;
5.Convenient After-sale service; point-to-point reparation, do not involve in original car accessories, it is more simple, fewer risks, safer and more reliable than dedicated machine;
6.Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new "Three Parks of Policy" and 4S that do not support warranty;

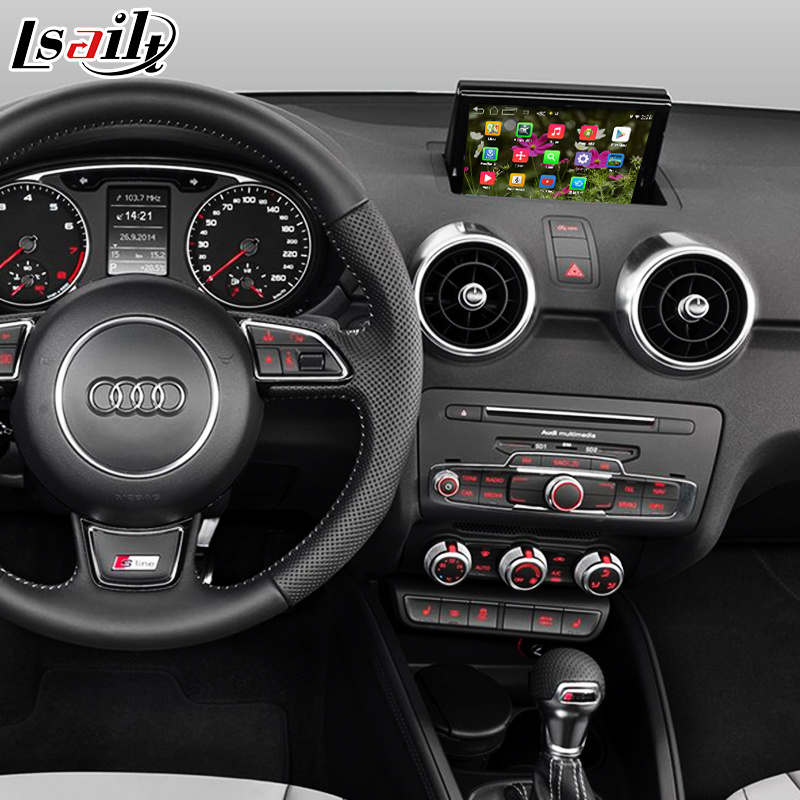

7.Original car UI design, perfect match. Long presses touch screen or original car button to switch navigation pattern.
Product Description
1.Apply to: 2010-2015AUDI A5,A4,A6,A1,A7,A8,Q3,Q5,Q7(3G MMI SYSTEM)
2.Supports external video input,full touch DVD,Android system;
3.Multiple Switching ways:long press screen,double sliding,party control,etc;
4.Full-digital circuit, LVDS signal processing, achieve high-definition images;
5.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;
6.Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;
7.It's convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;
8.Optional external RGB (800 x480) input,Andrews system connection,HD display;
9.UI of the original car UI,matching the original car style,integrated the original car system;
10.Full pull-in installation,realize nondestructive installation;
Please add me on whatsapp(+86-136 9976 5242 Cosmo) for directly contact!

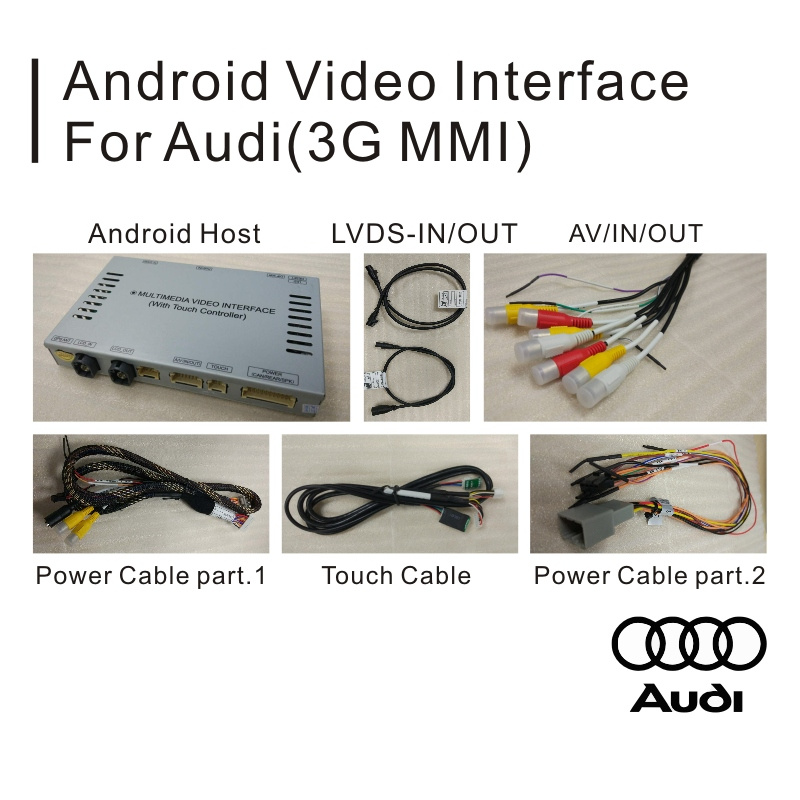

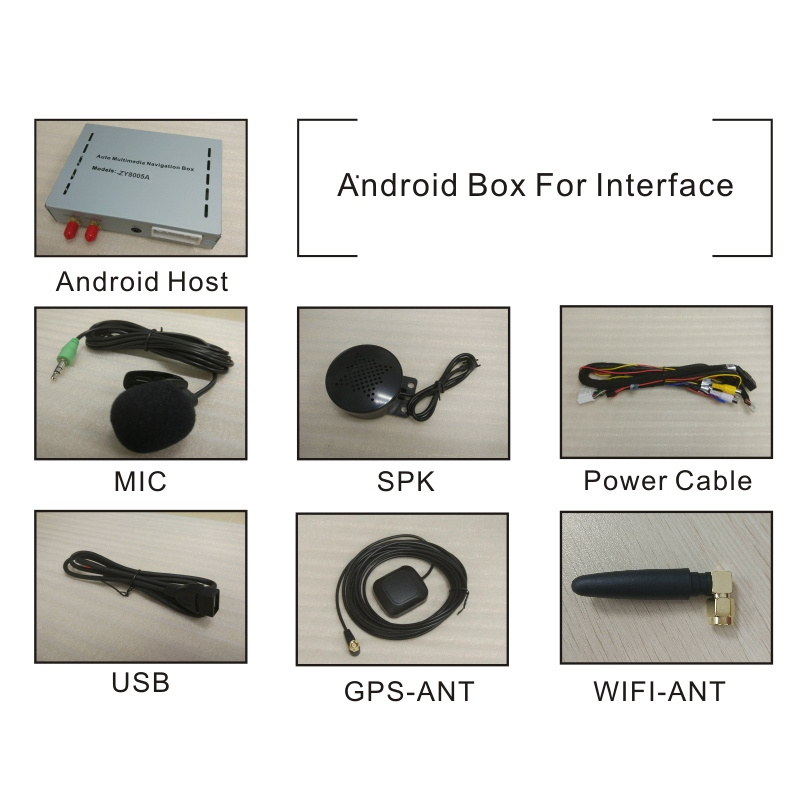

| Product Accessories |
| Interface box | 1(standard configuration) |
| Android box | 1(standard configuration) |
| LVDS IN | 1(standard configuration) |
| LVDS OUT | 1(standard configuration) |
| AV IN/OUT | 1(standard configuration) |
| POWER Line | 2(standard configuration) |
| GPS-ANT | 1(standard configuration) |
| Microphone | 1(standard configuration) |
| SPK | 1(standard configuration) |
| Map card | 1(standard configuration) |
| WIFI ANT | 1(standard configuration) |
| Specification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |
| Interface Parameter |
| Model | LLT-AUDI-VER4.5.1 |
| Brand | (Lsailt) |
| Car Screen Size | 7 and 8 " |
| Type | Silver interface box |
| Display | LVDS/GVIF Signal transmission(The Board) |
| RGB Input | One |
| AV Input | Two |
| DVR Input | One |
| Front View | One |
| Rear View | Track Reversing and Video |
| Customization | Negotiated |
| General Parameters Andrews |
| CPU | 1.6G Hz |
| Model | Cortex A9 Four dual-core processor,car rule PX3 |
| RAM | DDR3 1GB/2GB |
| Flash | Inand standard equipped,8GB or 16GB |
| Navigation Storage | TF card |
| OS | Android 4.2/4.4 |
| HVGA | 800X480 |
| WIFI | Support |
| BT | support BT4.0 |
| MirrorLink | Android and OS The android support touch |
| Operating Voltage | DC(9-15)V |
| Operating Current | Normal 400 mA@12V |
| Operating Temperature | -20ºC-+70ºC |
| Storage Temperature | -30ºC-+80ºC |
| Audio Output | Left and right channels,stereo,distribute the signal and analog output |
| Function Parameters Andrews |
| USB Function |
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. |
| Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) |
| Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 |
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don't support background) |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. |
| Internet |
| WIFI | After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet
Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual) |
| 3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard |
| Support surf the Internet through 3G USB dongle or 3G mobile share next work |
| MAP (GPS Navigation) |
| Supportable navigation software | Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC |
| Map Upgrading | Through TF card |
| Support 3D live navigation,(Need navigation software to support) |
| Support navigation sound mixing/sound sent back |
| Support real-time traffic(Need navigation software to support,internet) |
| Support multiple navigation software |
| File Manager |
| Functions | Support to copy, move files between different storage medium and different folders |
| Support to delete files |
| Task Manager |
| Functions | Support the task list of activities |
| Support to switch the activities task |
| Support to close the activities task |
| System with Google | The browser,calculator,calendar and send E-mail,Google store |
| Software Upgrading | TF or U flash disk |
| Voice Recognition | Support |
| System Language | Multi language |
| | | |
Specifications of System
| CPU | BCM4752 |
| Frequency | 1575.42± 1 .023 MHz |
| Number of channels | 66 channel |
| Tracking sensitivity | -1 61dBm |
| Positioning accuracy | 3.0m CEP |
| Rate | 0.1 m/s |
| Data update rate | 1HZ |
| Re-capture time | <1S |
| Hot start time | 1S |
| Warm start time | 32S |
| Cold start time | 35S |
| Maximum positioning height | 18000m |
| Maximum rate | 515m/s |
| GPS Antenna | Active ceramic antenna |
| Antenna gain | 27dB |
| Antenna noise factor | <2dB |
| VSWR | 1 .5 |
| Antenna voltage | 3V± 5% |
| Antenna current | 1 5mA |
The maximum rated operating parameters table
| Operating voltage | 9-12V |
| Operating current | 300mA |
| Maximum power consumption | 2.5W |
| Shutdown current | 1 mA |
| Off Power | 30mW |
| Operating ambient temperature | -10ºC -- +80ºC |
| Storage temperature | -50ºC -- +90 ºC |
3G Dongle
| NO. | Type | Network Format |
| 1 | HUAWEI E220 | WCDMA |
| 2 | HUAWEI E182E | WCDMA |
| 3 | HUAWEI E1550 | WCDMA |
| 4 | HUAWEI E1750 | WCDMA |
| 5 | HUAWEI E1756 | WCDMA |
| 6 | HUAWEI E1762 | WCDMA |
| 7 | HUAWEI E261 | WCDMA |
| 8 | ZTE MF110 | WCDMA |
| 9 | ZTE MF190 | WCDMA |
| 10 | ZTE MF180 | WCDMA |
| 11 | ZTE | WCDMA |
| 12 | ZTE | WCDMA |
| 13 | HUAWEI EC122 | CDMA |
| 14 | HUAWEI EC156 | CDMA |
| 15 | HUAWEI EC167 | CDMA |
| 16 | HUAWEI EC189 | CDMA |
| 17 | HUAWEI EC1261 | CDMA |
| 18 | HUAWEI EC1270 | CDMA |
| 19 | ZTE AC580 | CDMA |
| 20 | ZTE AC582 | CDMA |
| 21 | HUAWEI ET127 | TD-SCDMA |
| 22 | HUAWEI ET128 | TD-SCDMA |
| 23 | HUAWEI ET188 | TD-SCDMA |
| 24 | ZTE A355 | TD-SCDMA |
| 25 | ZTE A351+ | TD-SCDMA |
| 26 | ZTE | TD-SCDMA |
Quality warranty policy:3 month free replacement and 1 year free maintenance.Deliver 1 or 2 days after payment received.Customer service will contact with you by whatsapp, email, skype to do all necessary works.
