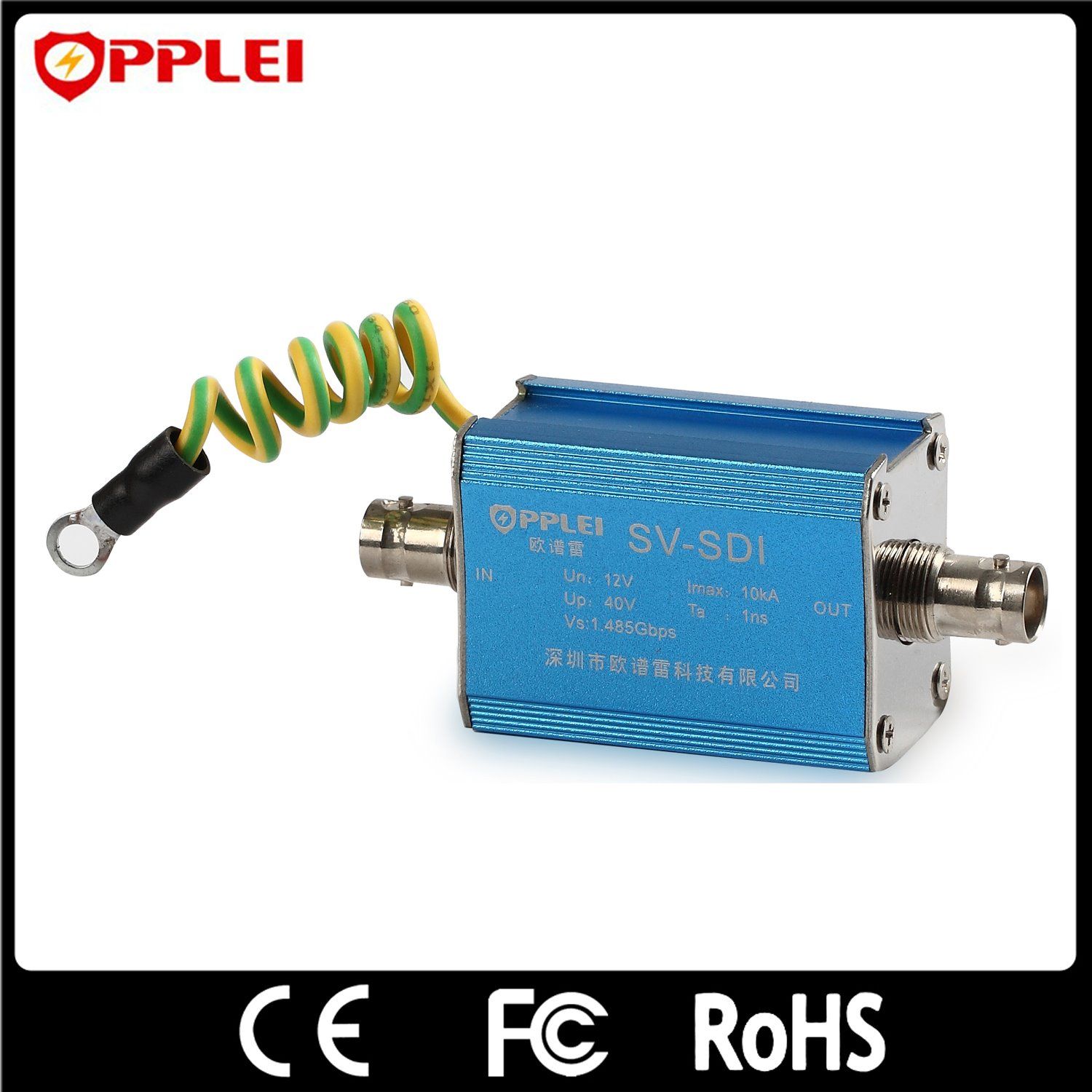

HD Coaxial Camera Surge Protector for Monitor System
| Price: |
US $ 6-25/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SV-SDI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Sv-BNC |
| Usage: |
Monitor System(Such as Video Matrix Switchers, Cam |
| Tpye: |
Wireless |
| Support Work: |
BNC |
| Qualify: |
Ce, ISO, RoHS, FCC, National Type Test Report |
| IP Rating: |
IP 20 |
| Interface: |
BNC |
| Imax: |
10ka |
| Our Staff: |
Experienced Staff |
| Warranty: |
5 Years |
| Type: |
Generally Coaxial Connector |
| Brand: |
Opplei |
| Interface Type: |
SDI |
Product Description
Coaxial signal surge lightning protective device for Monitor system 1. Description; a). coxidial surge protector , high trasmission rate, it about 30M
b). Pure copper BNC interface
c). Flame resistance material
d). High quality PCB board and oversea voltage dependent resistor
e). excellent quality many times testing before shipping out
f). OEM and ODM are accepted
g) Small order, or samples order are accepted 2. Feature:
Video BNC interface.
Core components are selected international brands,
Multistage protection, low residual voltage, fast response.
Low-volume design, excellent transmission performance,
Large intake capacity and long lifetime. |
3. Technical Paramter : | |
| Model | SV-SDI |
| Electrical Parameter |
| Max.Continuous operating voltage Uc | 12V |
| Nominal discharge current(8/20µs)In | 3kA |
| Max.Discharge current (8/20µs)Imax | 10kA |
| Adapt transmission rate | 30M |
| Insertion loss Ae | 0.5dB |
| Protection line | Core-cover, cover to PE |
| Response time Ta | 1ns |
| Interface form | BNC |
| Mechanical characteristics |
| Dimension | 65*37*28 |
| Weight per unit | 0.45KG |
| IP Code | IP20 |
| Working conditions | Temperature:-40 to 80ºC, Relative humidity:≤95% |
| Standards Compliance | CE, FCC, RoHS,ISO9001 SGS |
4. Application: Suger protecor SV-SDI used for Monitor system(such as video matrix switchers, cameras, video surveillance equipment, video distributor, etc),video line surge protection. Transmission rate can be 30M5. installation and Maintance a) The SPD should be connected in series between the protected device and the signal/power transmission channel.
b) The input terminal (IN) of the SPD should connect to the signal/power transmission channel, and the output terminal (OUT) of the SPD should connect to the protected device.
c) Connect earthing wire of the SPD to earthing bus-bar of the lightning protection system of the room or building.
No special duty needs to be carried out for maintenance.When problem arises and the SPD is suspected, check the system with SPD taken out of circuit.Should system recover, the SPD shall be regarded as a damaged unit and must be replaced immediately.6. Trade Terms:a. M.O.Q: 5PCS
b. Production lead time: 3-5 days for sample, 7-10 days for mass order.
c. Shipping Port: Shenzhen, China
d. Shipping way: by sea, by air, by express (DHL/UPS/TNT/FedEx/EMS etc.)
e. Shipping freight will be quoted as per your request.
f. Payment terms: T/T, 30% deposit; L/C; Western Union and so on 7. Our service:a. Your inquiry related to our products or prices will be replied in 24hrs.
b. Well-trained and experienced staffs to answer all your enquires in fluent English
c. OEM&ODM, any your customized lightings we can help you to design and put into product.
d. Distributorship are offered for your unique design and some our current models
e. Protection of your sales area, ideas of design and all your private information.
8. Our Promise:a. Provide solutions and high quality products
b. Streamline the buying and paying processes

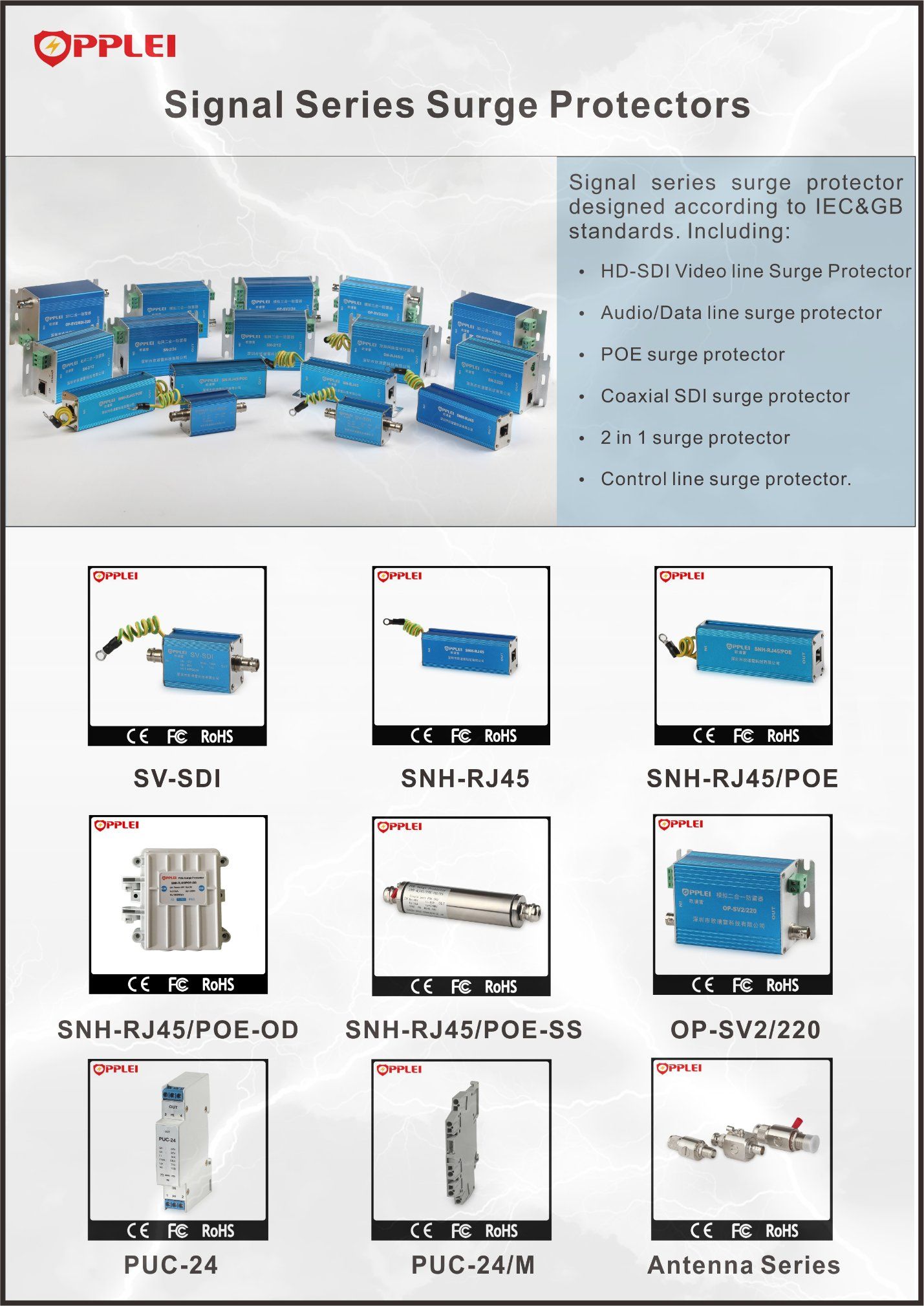

c. Deliver the goods to our customers all over the world with speed and precision 9. Quality warranty: one year replacement, five years warranty.10. Main Products: Lightning rod , Power surge protector, Signal surge protector, CCTV surge protector, Earth rod and so on.
Providing OEM For Different national standards ,Un:100V.110V.230V.240V
c
6. FQA:
Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, OEM Support. Customized logo and design on mass production are available.
Q:What is the delivery time?
A: 3 days for samples, 7-10 working days for mass production after payment.
Q: Can you give me a discount?
A: Yes. Big purchase. Large discount.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc
Q: Can I trust you?
A: Absolutely YES, We are "Made In China" verified supplier for over 5 years.
Q: How is the After-Sale Service?
A: We assure 5 years warranty, 3 years replacement, any question we have technical department to help you.
Q: May I visit your factory?
A:Sure, welcome any time. We can also pick you up at airport or station.7.Contact information:Lyric Ran International Regional Manager Mob: +86 17630058769
