Takfly Communications Co., Ltd. >> HD-LC Uniboot Patchcord

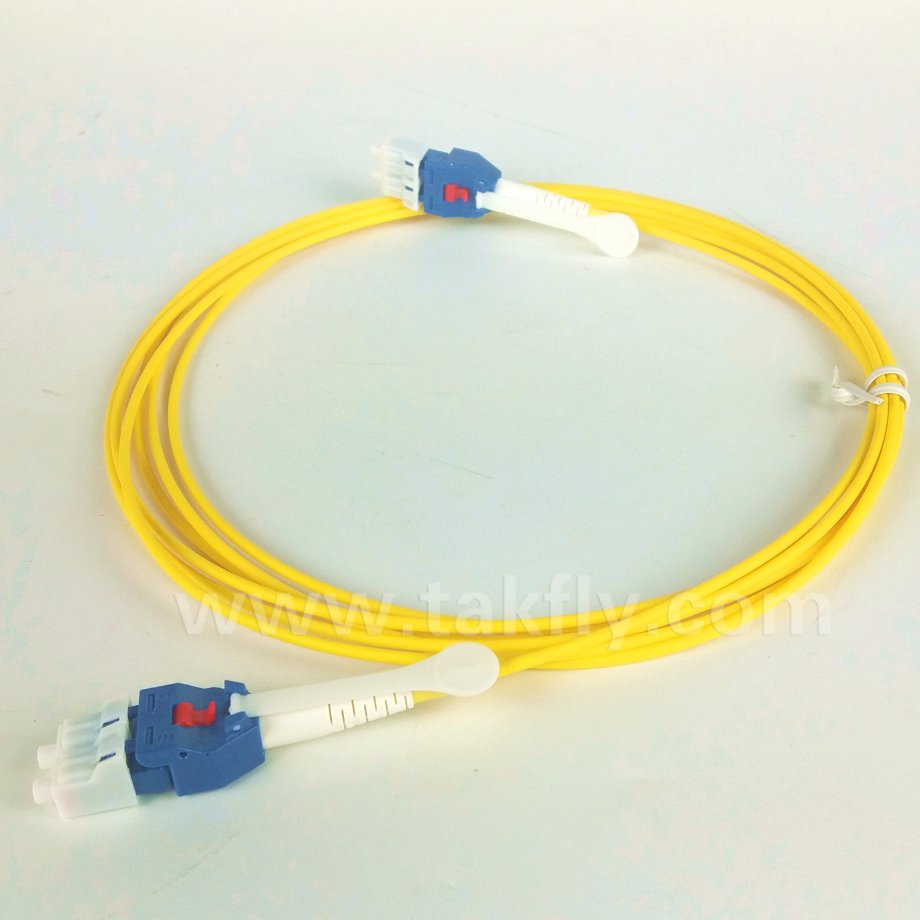

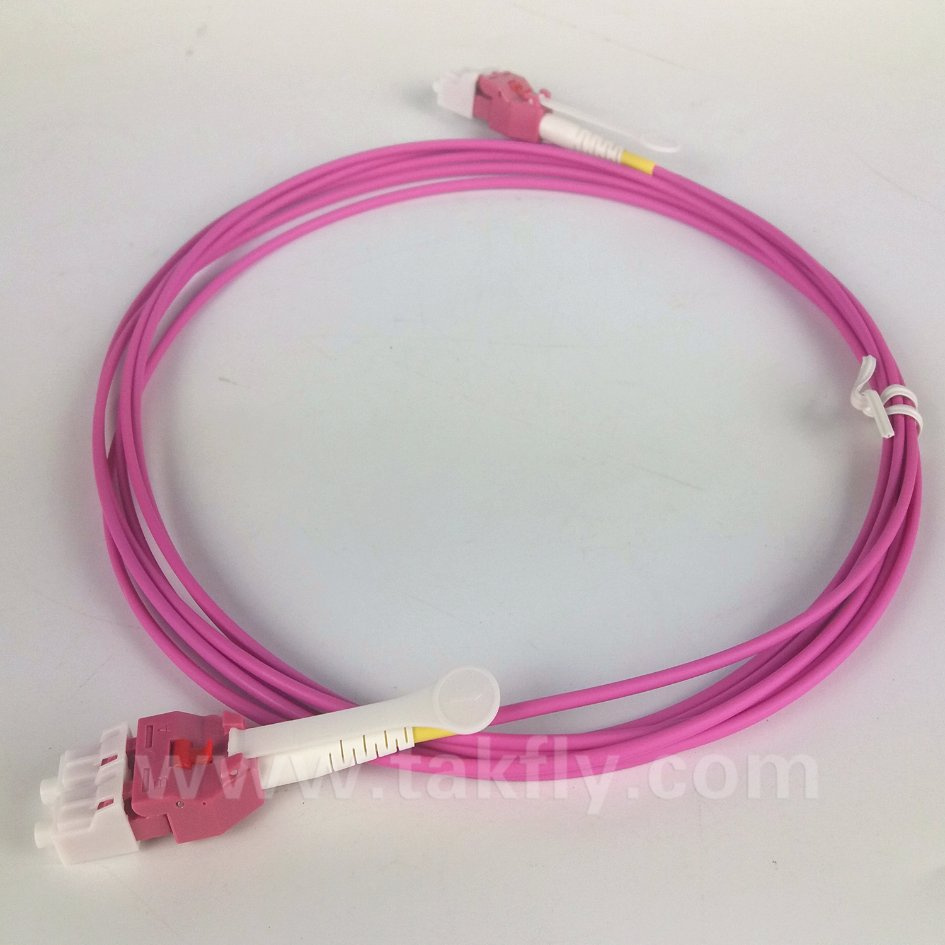

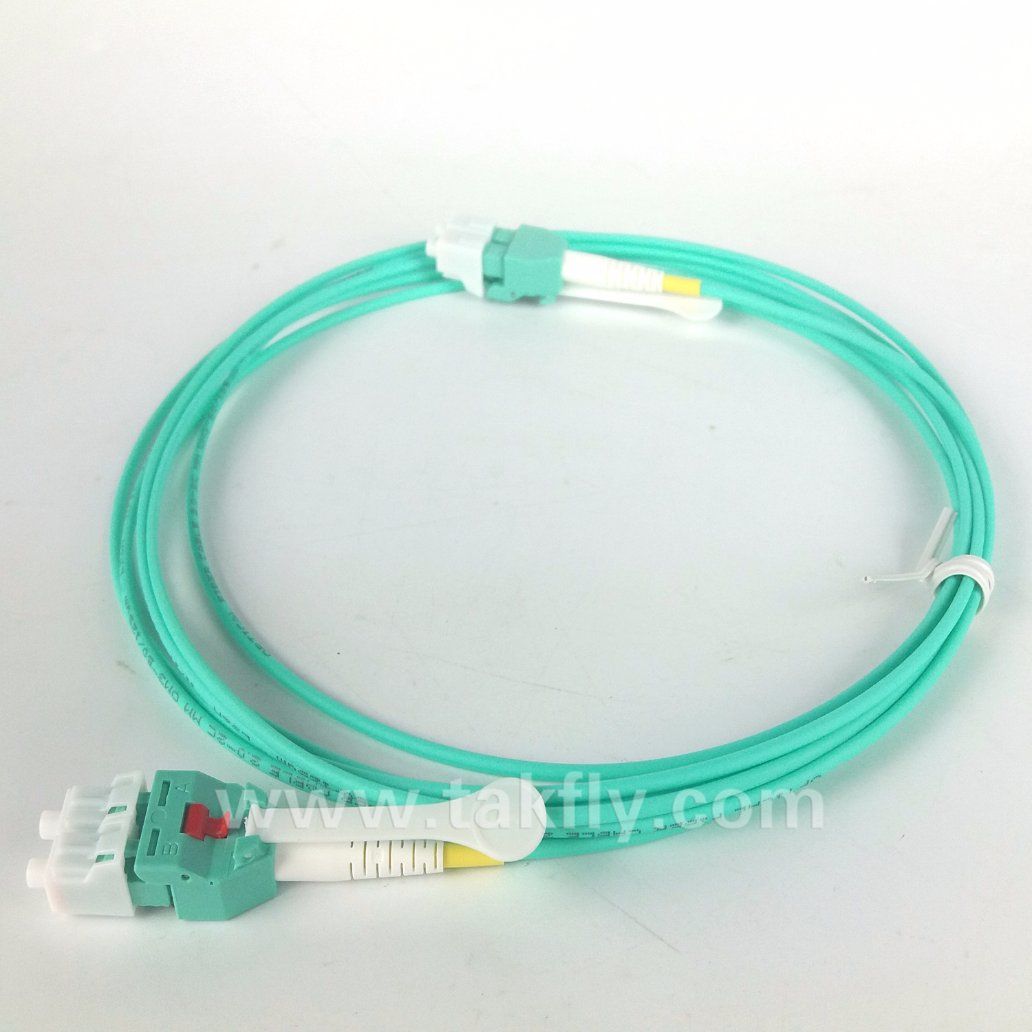

HD-LC Uniboot Patchcord

HD-LC Uniboot Patchcord
Price: US $ 3.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: HDLC
Name: HD-LC Patchcord
Catalogue: Om3 Patch Cord
Byname: HD-LC Patchcord
Cable Length: 1m.3m.5m or Customized
Operating Temperature: -40c~+80c
Fiber Mode: Single Mode or Multi-Mode
Cable Diameter: 0.9mm,2.0mm,3.0mm
Operation Wavelenghth(Nm): 1310/1550nm
Export Markets: Global
Application: FTTH, FTTB, LAN, CATV
Type: Single-mode Fiber
Connection Structure: LC
Certification: CCC
Brand: Takfly
Sheath Material: PVC, LSZH

Product Description

HD-LC Uniboot Patch cord





  1. Applications
  1. Features

  1. Specifications :
End face typeUPC and APC
Fiber typeSM(G652,G655,G657);MM(OM1-OM5)
Cable Diameter3.0 or customized
Insertion loss≤ 0.3 dB
Return lossUPC SM≥50dB ,APC SM≥ 60 dB,  MM  ≥  35 dB
Repeatability≤ 0.1
Durability≤ 0.2dB
Interchangeability≤ 0.2dB
Strength MemberKevlar
Tensile strength>60N
Ferrule 1.25mm(CCTC)
Operating Temperature-20ºC~60ºC
Storage Temperature-20ºC~60ºC
Outer Sheath MaterialPVC,LSZH
Bending radius(Static/Dynamic)10D/20D
LengthCustomized





Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

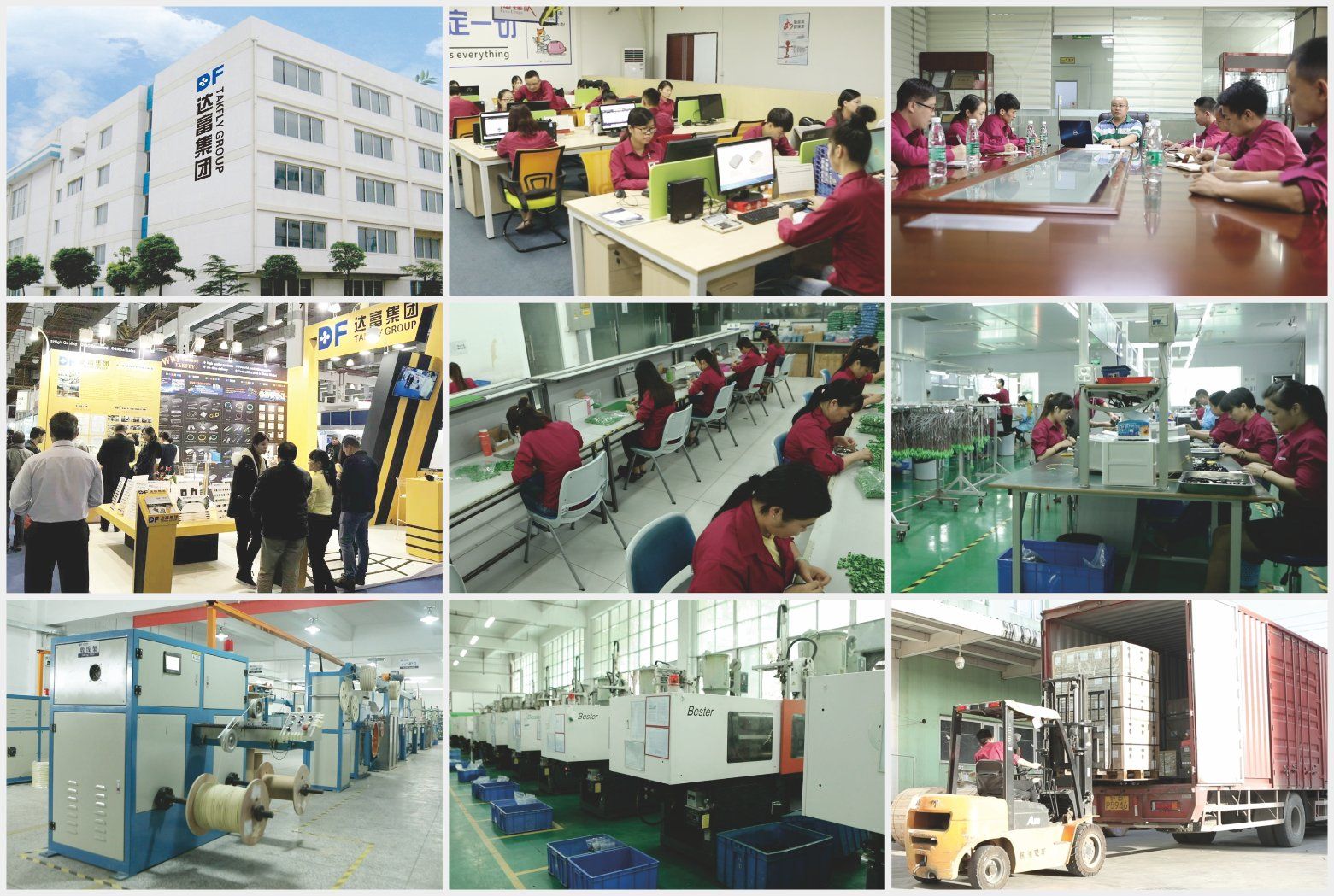

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
