| Prod Model: |
Rigao 6-layer pcb 35201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Rigid PCB |
| Layer Count: |
1-30 Layers |
| Board Thickness: |
0.2-5.0mm |
| Copper Thickness: |
0.5-6 Oz |
| Board Material: |
Teflon |
| Surface Treatment: |
Enig |
| Solder Mask: |
Green, Bule, Red, Black, Yellow, White |
| Silk Screen: |
White, Black |
| Structure: |
Multilayer Rigid PCB |
| Production Process: |
Subtractive Process |
| Material: |
Epoxy Paper Laminate |
Product Description

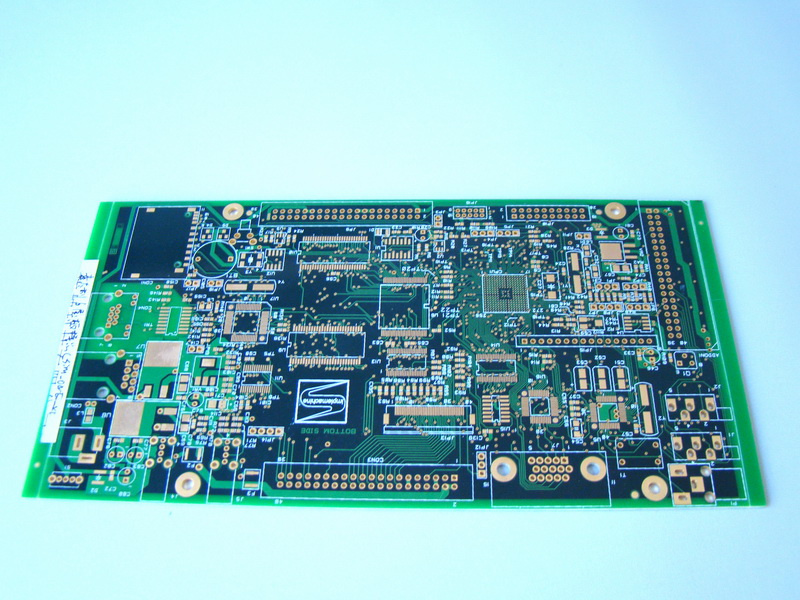

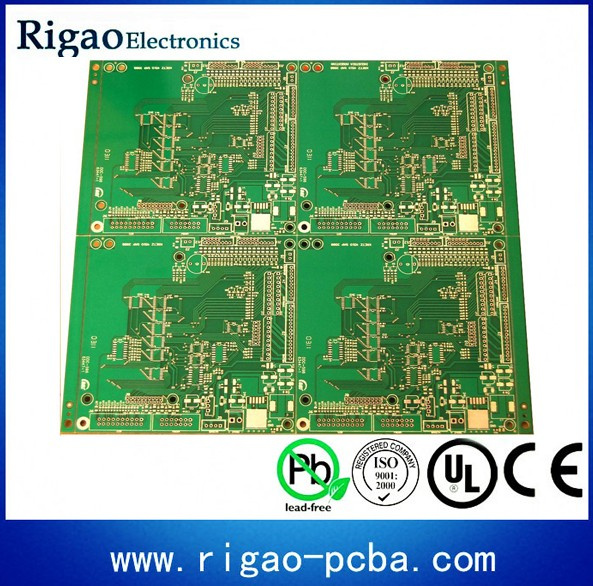

HDI Boards (1+4+1) /High-Density 6-Layer PCBCompany informationShenzhen Rigao Electronics Co, . Ltd. Is focus on manufacturing Printed Circuit Boards(PCB) and PCB Assembly(PCBA). OEM PCB, SMT, DIP and PCBA Assembly are our strengths.
Our aim: High quality, low cost & fast delivery for PCB and PCBA.
Service: One-stop-service for PCB and PCBA.
Verification: UL, ISO9001: 2000, RoHS
PCB & AssemblyPCB Prototype or Prototyping is often essential with the development of new products and application. Prototypes can eliminate issues early on before larger volumes of boards are produced, can allow for clarification and refinement of requirements, allow a more accurate finial design and reducing rework costs, can highlight both the seen and unforeseen technical issues allow these to be address up front.
At Rigao Electronics we understand the 'Need for Speed' when trying to get a new product to market. To this end we offer a comprehensive Printed Circuit Board Prototype PCB Service. No matter is prototype or mass production, our turn around on orders ranges from 24 hour prototyping services to 3~10 days' standard lead-times, on normal orders, including scheduled and regular monthly call off requirements.
We know that outsourcing your design for manufacture is a big decision, especially to China. But to do business with Rigao Electronics you don't have worry something, we work closely with our customers at every stage, you can expect good communication from here to guaranty your projects produce correctly with delivery on time.
Rigao Electronics, a partner you can trust!
Product Description:1. Single-sided PCB, double side & multi-layer PCB with competitive price, good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4.6-layer pcb are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test for 6-layer pcb
PCB Base Material: Rogers
PCB Copper Thickness: 1/1
PCB Board Thickness: 0.3-5.0mm
PCB Min. Hole Size: 0.2mm
PCB Min. Line Width: 0.1mm
PCB Min. Line Spacing: 0.1mm
PCB Surface Finishing: HASL, HASL pb free, immersion gold, immersion silver, immersion tin, O. S. P (Entek), S/G plating, ENEPIG, G/F plating, carbon
Advantage
1. PCB is no MOQ/MOV.
2. PCB which have the comprehensive quality control system.
3. PCB with good price.
4. PCB with quick turn delivery time from 48hours.
5. PCB with certification (ISO/UL/RoHS/SGS).
6. PCB with many years experience in exporting service.
7. PCB from factory directly.
8. PCB with high quality. strict test through AOI (Automated Optical Inspection),
QA/QC, Flying Proble Test, E-test fixture.
|
NO |
ITEM |
Techinical capabilities |
|
1 |
Materials |
CEM-1,CEM-3,FR-4, FR4 High TG, Teflon, Rogers,aluminium,ceramic, etc. |
|
2 |
layers |
1-22 layers |
|
3 |
Min.core material |
5mil(excluding copper) |
|
4 |
Prepreg type |
7628/2116/1080/3313 |
|
5 |
Max.board size |
520*720mm |
|
6 |
Copper thickness |
min.base copper 1/3 OZ |
|
max.finished copper6OZ |
|
7 |
Min.board thickness |
2 layer 10mil/0.25mm |
|
4 layer 16mil /0.4mm |
|
6 layer 24mil/0.6mm |
|
8 layer 32mil/0.8mm |
|
10 layer 40mil/1.0mm |
|
8 |
Max.board thickness |
236mil/6mm (finished board thickness) |
|
9 |
Min.line width/space |
3mil/3mil HOZ copper base(inner layer) |
|
10 |
Min.hole size |
8mil |
|
11 |
PTH wall thickness |
≥1mil |
|
12 |
Hole dia.tolerance(PTH) |
±3mil |
|
13 |
Hole dia.tolerance(NPTH) |
±2mil |
|
14 |
Countersink hole |
Min.depth(D)6mil;The Depth of tolerance± 6mil |
|
|
Drill bit grinding angles C≥90°~180° |
|
Hole Dia.B tolerance ±4mil |
|
Drill bit A ≥Φ40mil |
|
15 |
Drilling hole positional deviation(outer layer) |
1st-drill ±3mil(Normal) ±2mil(min.) |
|
2nd-drill ±4mil |
|
16 |
Min.solder mask bridge |
3.2mil(HOZ base copper, green) |
|
17 |
Outline tolerance |
±4mil |
|
18 |
Twist & Bow |
≤0.75% |
|
19 |
Peelable mask thickness |
≥8mil 1 printing |
|
20 |
Insulation Resistance |
>10MΩ Normal |
|
21 |
Through hole
resistance |
≤100Ω Normal |
|
22 |
Current breakdown |
10A |
|
23 |
Peel strength |
1.4N/mm |
|
24 |
S/M abrasion |
>6H |
|
25 |
Thermal stress |
288°C* 20Sec*3 times |
|
26 |
Test Voltage |
20-300V |
|
27 |
Min.blind/burried via |
8mil |
|
28 |
Surface finish |
HASL, ENIG, IMMERSION SILVER,IMMERSION TIN,OSP,HASL+GOLD FINGERS, ENIG+GOLD FINGERS, |
|
29 |
Impedance control |
Single ended impedance 50Ω/70Ω±10% Normal |
|
Differential impedance 90Ω/100Ω±10% Normal |
|
30 |
Max.aspect ratio |
12:1 |
|
31 |
Beveling of gold fingers
|
Anglesθ 20° 25° 30° 35° 60° |
|
Bevel size H:Min.12mil, Max.71mil |
|
the tolerance of bevel height: ±4mil |
|
Board thickness T:Min32mil,Max.79mil |
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)

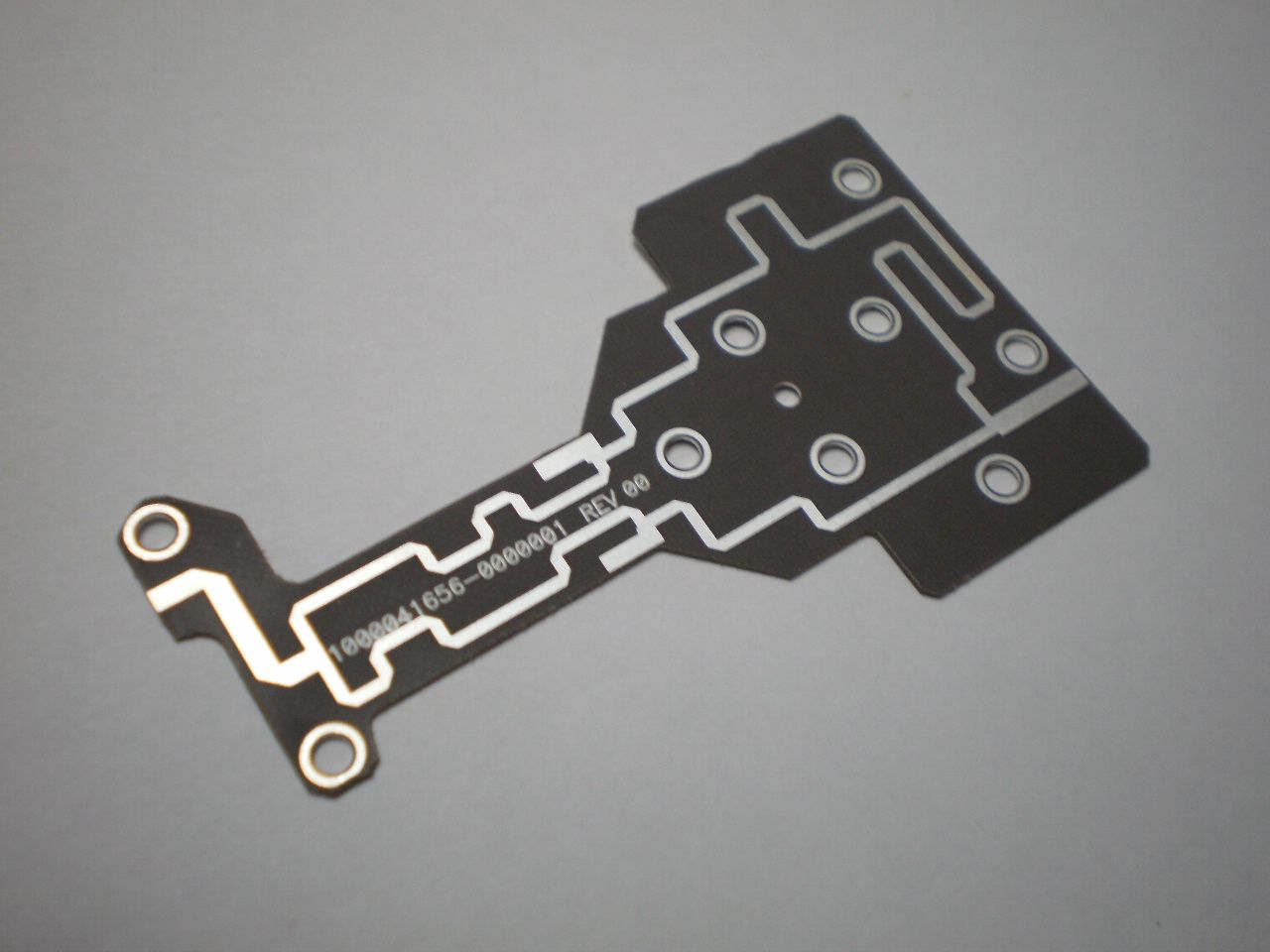

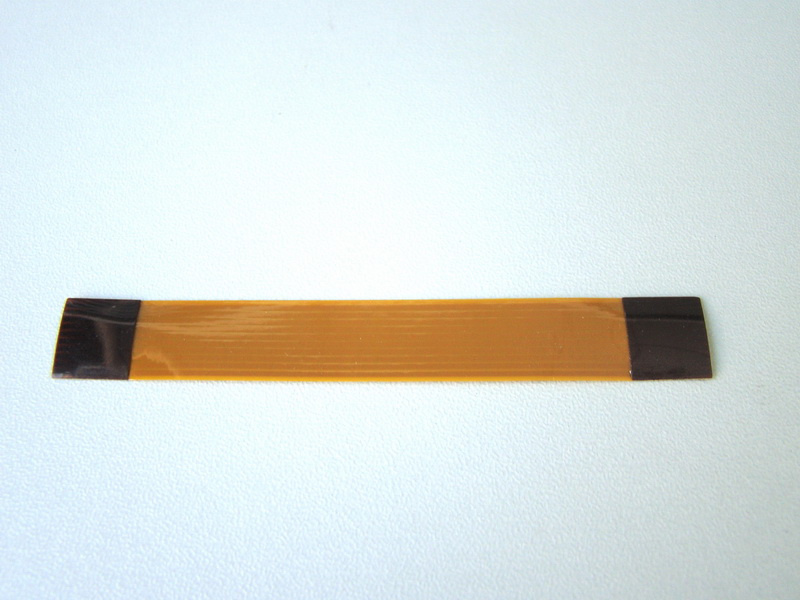

Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
