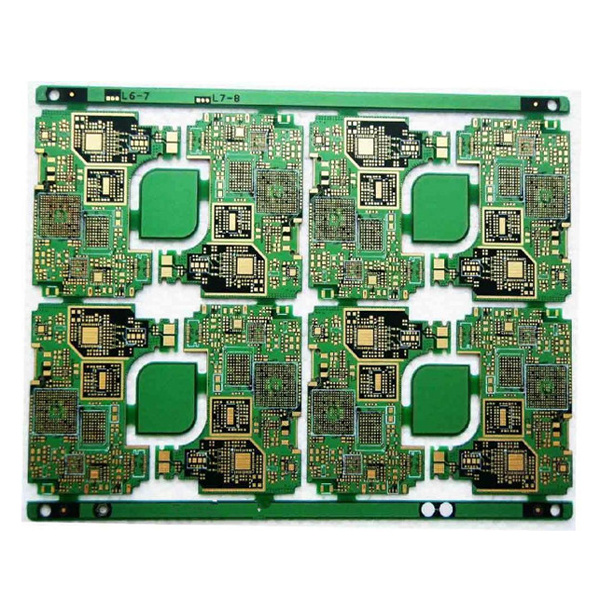

HDI PCB Board Electronic Cleaner Screen SLR PCB
| Price: |
US $ 0.12-0.21/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
FL-027 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
1.6mm |
| Copper Thickness: |
1oz |
| Material Type: |
Fr4 |
| Surface Treatment: |
Immersion Gold |
| Solder Mask: |
Green |
| Silk Screen Color: |
White |
| Board Layer: |
1 Layer |
| Shipping Type: |
DHL, UPS, TNT, EMS, FedEx etc |
| Packing Type: |
Carton + Vacuum |
| Lead Time: |
5-7 Days |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V2 |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Brand: |
Fastline |
| Base Material: |
Fr4 |
Product Description
Features-Our Products Advantage
1. Over 10 years experience manufacturer in PCB and PCBA service field.
2. Big scale of producing makes sure that your purchase cost is lower.
3. Advanced production line guarantees stable quality and long life span.
4. Design and produce almost any PCB as your requirement.
5. 100% test for all customized pcb products
6. One-stop Service ,we can help to purchase the compnentsCan we know your factory PCB manufacture capability?
PCB Manufacture Capability |
| Item | Manufacture Capability |
| Layers | 1-26 Layers |
| HDI | 2+N+2 |
| Material Types | Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free, |
| Isola, Taconic, Arlon, Teflon, Rogers, |
| Max. Panel Dimension | 39000mil * 47000mil (1000mm * 1200mm) |
| Outline Tolerance | ± 4mil (± 0.10mm) |
| Board Thickness | 8mil-236mil (0.2 - 6.0mm) |
| Board Thickness Tolerance | ± 10% |
| Dielectric Thickness | 3mil-8mil ( 0.075mm-0.20mm) |
| Min. Track Width | 3mil ( 0.075mm ) |
| Min. Track Space | 3mil ( 0.075mm ) |
| External Cu Thickness | 0.5 OZ - 10 OZ ( 17um - 350um) |
| Internal Cu Thickness | 0.5OZ - 6OZ ( 17um - 210um) |
| Drilling Bit Size ( CNC ) | 6mil-256mil ( 0.15mm - 6.50mm) |
| Finished Hole Dimension | 4mil-236mil(0.1mm - 6.0mm) |
| Hole Tolerance | ± 2mil (± 0.05mm) |
| Laser Drilling Hole Size | 4mil(0.1mm) |
| Aspect Ration | 16: 1 |
| Solder Mask | Green, Blue, White, Black, Red, Yellow, Purple, etc. |
| Min Solder mask Bridge | 2mil(0.050mm) |
| Plugged Hole Diameter | 8mil-20mil ( 0.20mm-0.50mm) |
| Beveling | 30o - 45o |
| V-scoring | +/-0.1mm, 15o 30o 45o 60o |
| Impedance Control | Min. 5% General ± 10% |
| Surface Finishing | HASL, HASL(lead Free), Immersion Gold |
| Immersion Silver, OSP, Hard Gold ( up to 100u" ) |
| Certification | UL RoHS ISO9001: 2000 ISO14000: 2004 SGS |
| Testing | Flying probe, E-TEST, X-RAY Inspection , AOI |
| Files | Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc
|

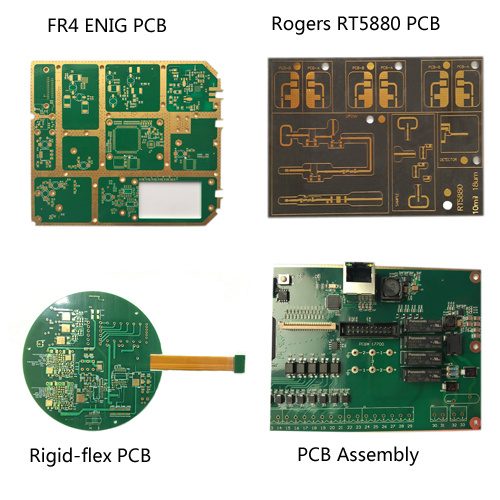

Can you show other PCBS?
Can we know what the PCB products are applied for ?

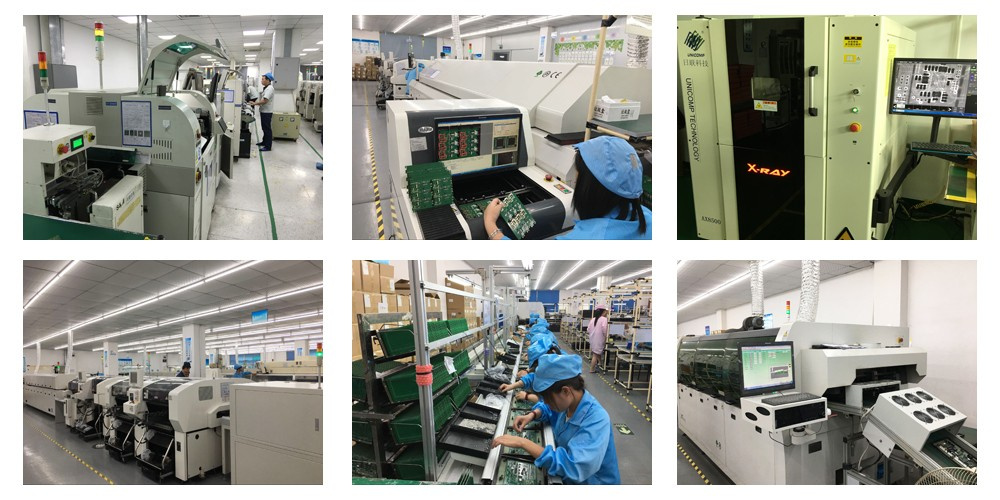

Can You Show some Pictures of the PCB factory?
Fastline Circuits Co.,Limited has the most diversified printed circuit board technologies available, including Single-sided PCB, Multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, Flexible PCB, Heavy Copper PCB, Ceramic PCB, and PCB assembly and other special PCB boards.
We believe that the quality is the soul of an enterprise and provides time-critical, technologically advanced engineering and manufacturing services for the electronics industry.
Sound quality gains a good reputation for Fastline. Loyal customers has cooperated with us again and again and new customers come to Fastline to establish cooperation relationship when they hear of the great reputation. We look forward to offering high-quality service to you!How to pay and how to ship?
FAQQ1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.
Q4: What is the lead time?
A4:Sample needs 7-10 days, mass production needs 10- 15 days,
according to the order volume.Also we can provide quick time service 1-2days.
Q5: What payment terms do you have?
A5: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
