| Prod Model: |
pcb |
| Layer: |
1-22 L |
| Type Of Assembly: |
SMT and Thru-Hole |
| Type Of Service: |
Urn-Key, Partial Turn-Key or Consignment |
| File Formats: |
Bom, Gerber, Pick-N-Place File (Xyrs) |
| Components: |
Leadlesschip Carriers/Csp;BGA Repair... |
| Component Packaging: |
Cut Tape, Tube, Reels, Loose Parts |
| Quantity: |
No MOQ |
| Testing: |
X-ray Inspection & Aoi Test |
| Copper Thickness: |
Outer Layer:1oz~6oz Inner Layer:Hoz~5oz |
| Min. Line Width/Space: |
4/4mil(0.1/0.1mm) |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Rigao |
Product Description

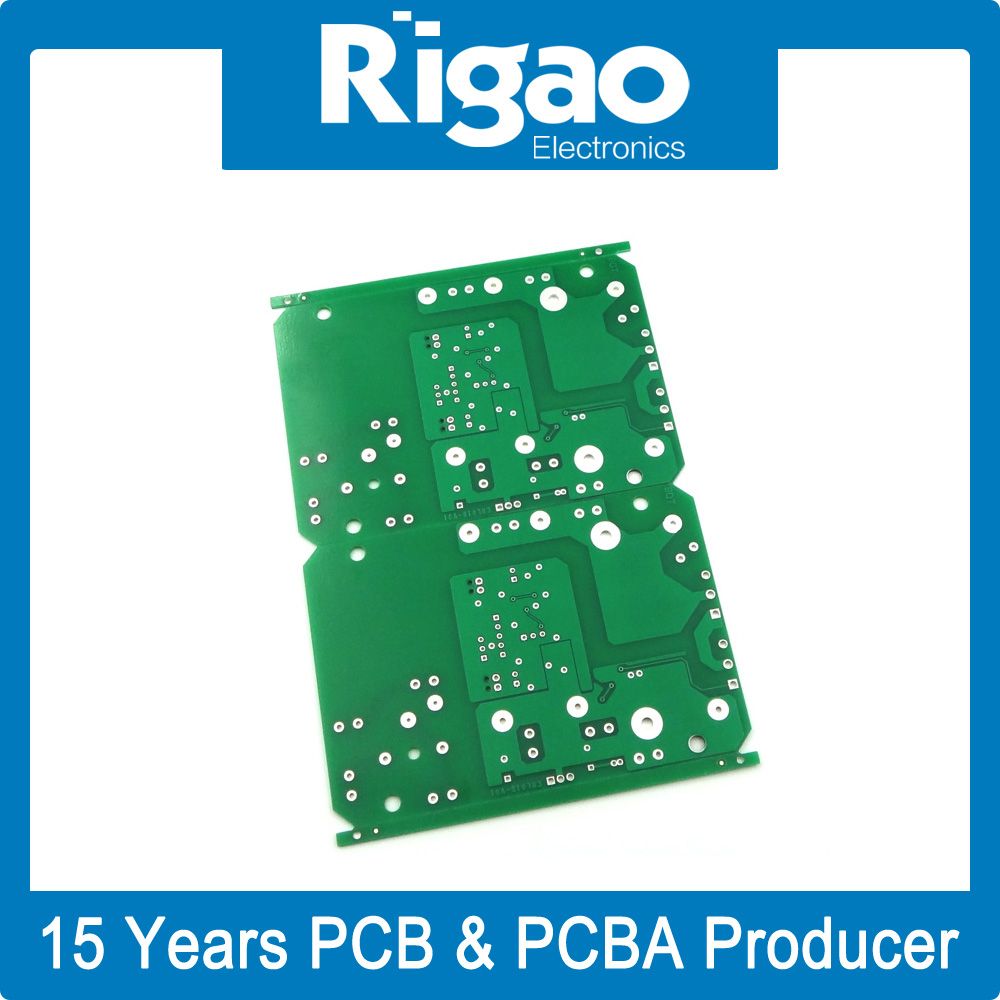

HDI TG180 pcb fabrication and pcb diagram
Introduce of Rigao:
Rigao Electronics Co.,Ltd. PCB assembly manufacturer in Shenzhen, China. We are focus on manufacturing Printed Circuit Boards(PCB) and PCB Assembly (PCBA). OEM PCB assembly, SMT, DIP and final Assembly is our strengths.
After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to gurantee a complete service with technical back up, offering a cost advantage and continuity of supply.
For making PCB Assembly(PCBA), customer just need to provide us with Gerber file and bill of material. Components procurement is one of the featured service we can provide. IC, battery, fuse, LCD, transformer, LED Diode, connector, sensor, we could purchase all these electronic parts to our customers.
Capability of HDI TG180 pcb fabrication and pcb diagram
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
Detailed Specification of HDI TG180 pcb fabrication and pcb diagram
1Layer1-22 layer
2MaterialFR4, CEM1, Aluminium Base, Cooper Base, High frequency material,
Thick copper foil, 94-V0 (HB), PI Material, Roger, High TG: SL S1000-2, ITEQ: IT180.
3Board thickness0.2mm-7mm
4Max. Finished board side610mm*1200mm
5Min. Drilled hole size0.25mm
6Min. Line width0.075mm(3mil)
7Min. Line spaceing0.075mm(3mil)
8Surface finish/treatmentHASL, HASL lead free, OSP, Immersion tin, Immersion Gold,
Immersion Silver/Gold Finger, Gold Plating, Selective OSP Immersion Gold
9Copper thickness0.5-4.0oz
10Solder mask colorgreen/black/white/red/blue/yellow
11Inner packingVacuum packing, Plastic bag
12Outer packingStandard carton packing
13Hole tolerancePTH: ± 0.076, NTPH: ± 0.05
14Profiling PunchingRouting, V-CUT, Beveling
15Assembly ServiceProviding OEM service to all sorts of printed circuit board
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
