Product Description

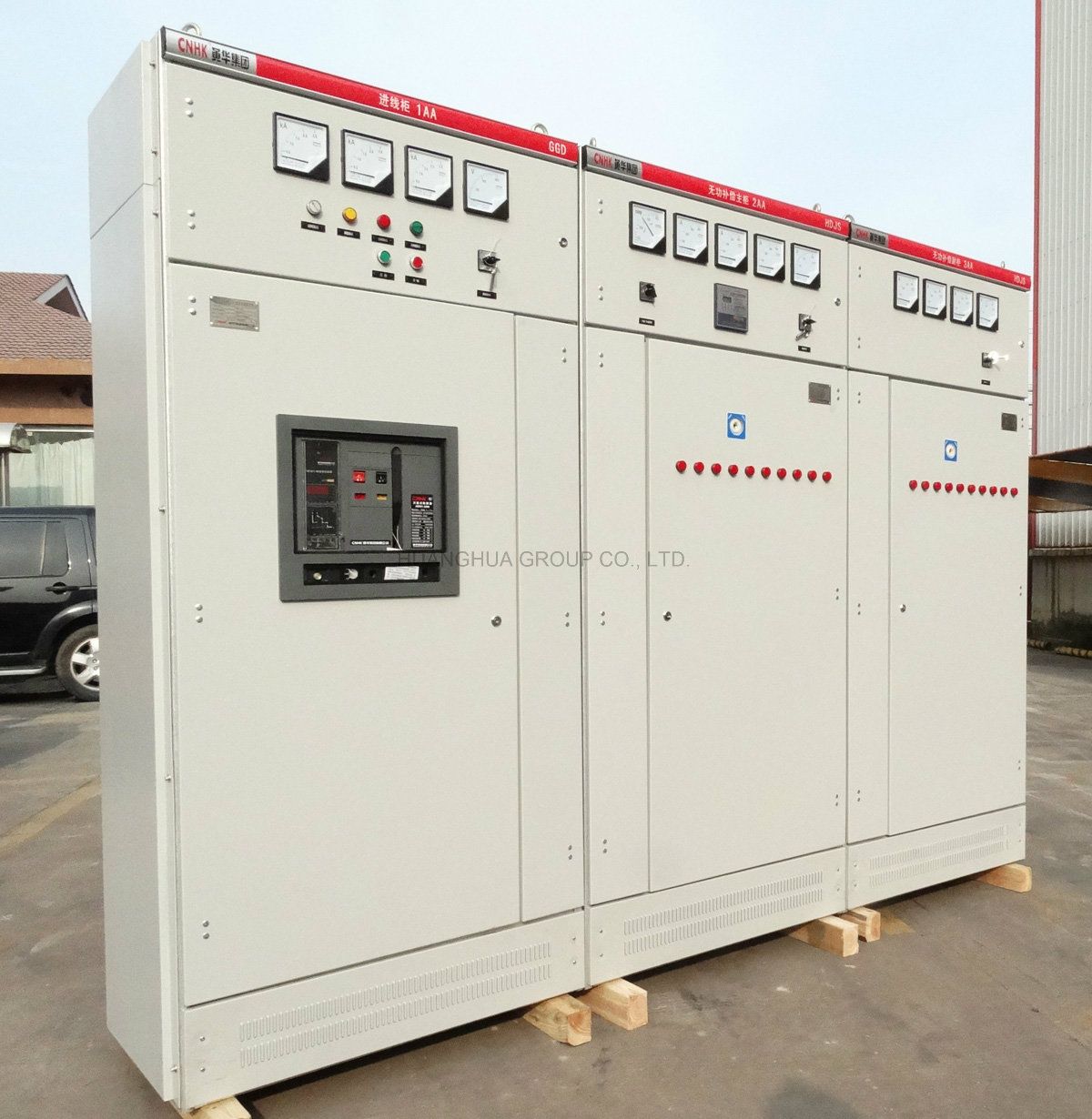

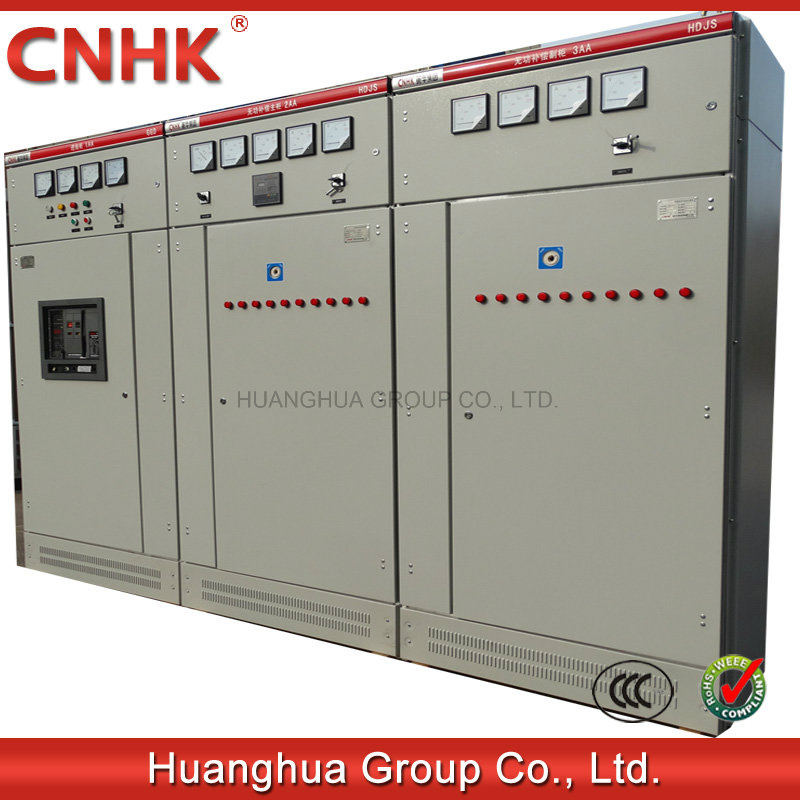

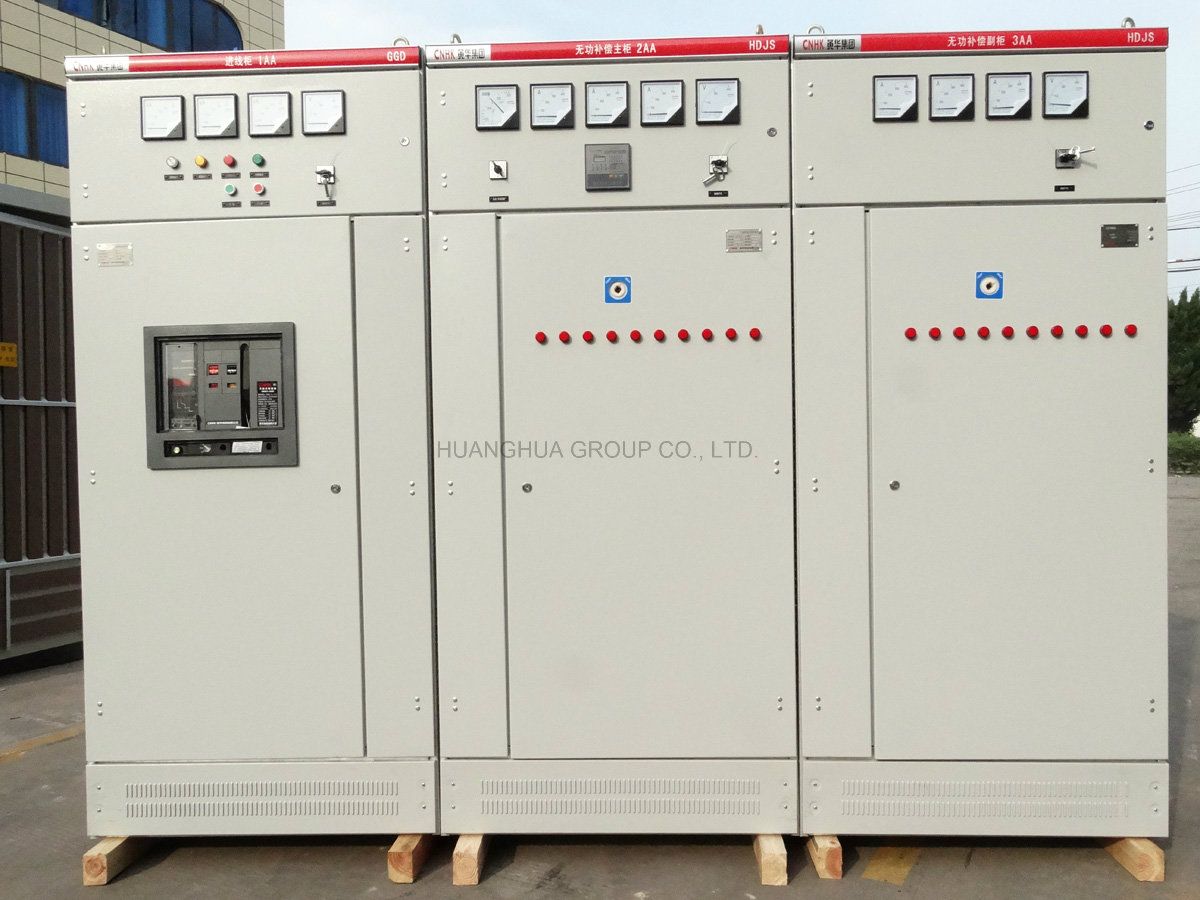

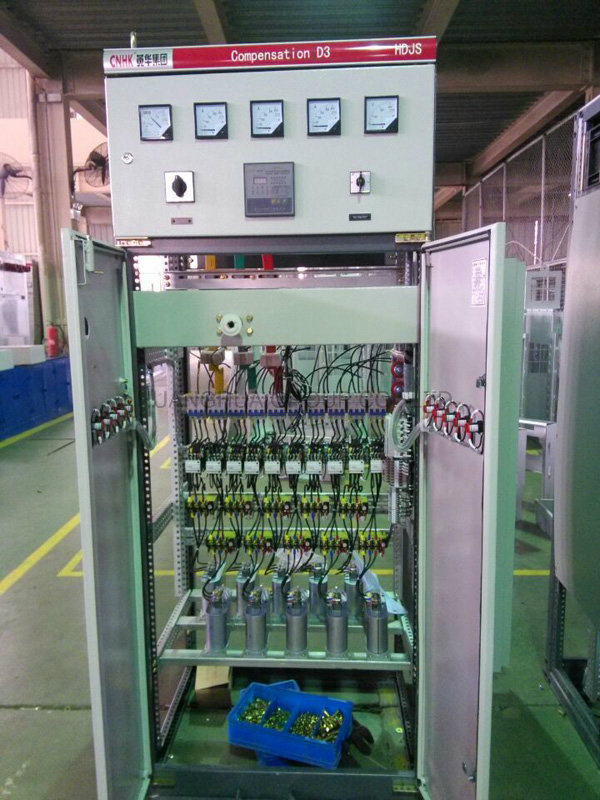

HDJS Capacitance Compensation Enclosed Cabinet
1.General Description
1.1 Application: In the system of 50Hz, 3.6~12kV and below, for making and breaking of load current and short-circuit current, controlling and protecting.
1.2 Standards: IEC 62271-200.
1.3 Parameters: Rated voltage: 3.6-12kV.
Rated current: 630A.
Maximum rated current of capacitor: 125A.
2.Features
2.1.Compact design
2.2.Easy operation and installation
2.3.Reliable interlock
2.4.Less Maintenance
3.Technical Data
No. | Item | Unit | Data |
3.1 | Rated voltage | kV | 12 |
3.2 | Rated current | load break switchgear | A | 630 |
Combined switchgear | A | 125 |
3.3 | Rated frequency | Hz | 50 |
3.4 | Rated short-circuit breaking current | kA | 31.5 |
Rated short-time withstand current | kA | 20 |
Rated active on-load breaking current | A | 630 |
3.5 | Rated peak withstand current | kA | 50 |
3.6 | Rated power frequency voltage withstands inter-phase, to earth and to the open contact | kV | 42/48 |
3.7 | Thundering withstands voltage inter-phase, to earth and to the open the contact | kV | 75/85 |
3.8 | Mechanical life | times | 10000 |
3.9 | Rated take-over current | A | 3150 |
3.10 | Protection level | | IP2X |
3.11 | Operating mode | | Manual or automatic |
