HDMI 19p a Type Male Without PCB Board Connector (RMT-160325-037)

Name: HDMI 19p a Type Male Without PCB Board Connector (RMT-160325-037)
Brand: all-electronics-online.com
SKU: 784775805
Availability: InStock
Rating: 5 (139 reviews)

Price:	Negotiable/Piece
Trade Terms:	CFR,EXW
Min Order:	5000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RMT-160325-037
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Communication
Installation Mode:	Automatic Pop-up
Production Process:	Injection
Customized:	Non-Customized
Working Frequency:	Low Frequency
Type:	HDMI
Interface Type:	HDMI

Product Description

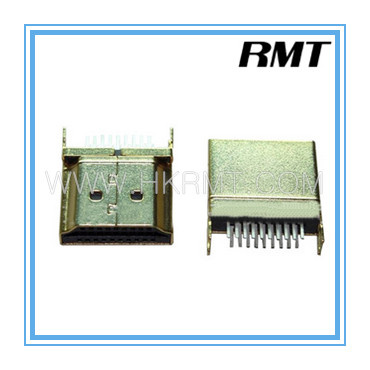

HDMI Connector ( RMT-160325-037)

1.MATERIAL:
1.1 Housing:thermoplastic plastics
1.2 terminals:Copper Alloy
Gold plated in contact area:
Tin plated in termination
Nickel Plated overall
1.3 Shell:Steel&Copper Alloy
Nickel/Au Plated overall

2.ELECTRICAL CHARACTERISTICS:
2.1 Rating Current :0.5 Ampere
2.2 Rating Voltage :40 V Max
2.3 Contact Resistance:30 Milli ohms
2.4 Insulation Resistance:100 Mega ohms Min.

3.MECHANICAL CHARACTERISTICS:
3.1 Connector Mating force:4.5Kg MAX
3.2 Connector Unmating force:0.7~2.5Kg min
3.3 Durability:5000Cycles.

4.ENVIRONMENT CHARACTERISTICS:
4.1 Operating temperature:-55ºC to +85ºC
4.2 Storage temperature:-20ºC to +85ºC

High quality with goods price.
For more details, pls contact us.

HongKong RMT Electronics Co., Ltd. is a professional manufacturer engaged in producing and developing switches, jacks and connectors. Our products can be widely used in the precision electronics industry like smartphone, projector, earphone, digital camera, auto electronics and portable DVD and other relative fields. We accept OEM and ODM order, welcome to visit our factory.

Quality is the core of enterprise development. RMT has been developing quickly and healthily these years based on strict quality management. We have strong technical force, advanced testing equipments, a group of specialized R&D engineers and skillful workers. We strictly carry out ISO9001 and formed our own quality system. We strictly carry out this standard in management, which enables us to earn a good reputation among our domestic and overseas customers.

We uphold the "high-quality products with the best price, win-win solution " of operating principles. RMT will provide you with best products and best service.
