HDMI a Type Female Right Angle DIP 2 Row Connectors From Antenk

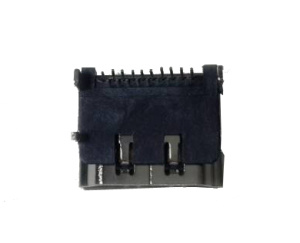

Name: HDMI a Type Female Right Angle DIP 2 Row Connectors From Antenk
Brand: all-electronics-online.com
SKU: 739601285
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDMI A Type Female Connector 002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Current Plating:	0.5A
Application:	Power Supply

Product Description

HDMI A Type Female Right Angle Dip 2 Row Connectors from Antenk

Material:

Housing: LCP UL94-0 Color: Black.
Contact: Copper alloy T=0.20mm
Shell: Brass T=0.50mm

Finish:

Contact: Gold flash plated in contact area 80U" min tin Plated in solder area 30U" min nickel underplated over all
Shell: 50U" min nickel plated overall

Specification:

Current rating: 0.5AMPS
Voltage rating: 40V AC
Contact resistance: Initial contact resistance excluding
Conductor resistance: 100mΩ Min
Dielectric withstanding voltage: 500V AC/60 sec

Insertion force: 4.5 kgf max
Withdrawal force: 1.0kgf~4.0kgf

Durabilith: 10000cycle

Tempertature Operating: -25° C~ +85° C

Resistance to soldering to sodering heat: 265° C for 5 seconds and only wave soldering process

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
