| Prod Model: |

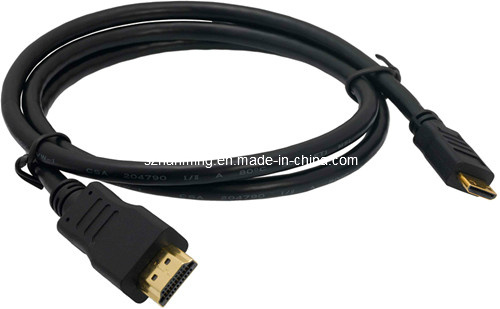

NM-HDMI-241 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Coaxial |
| Connector Color: |
Gold |
| Connector Type: |
HDMI |
| Shielding: |
Non-Shielded |
| Gender: |
Male-Male,Male to Male |
| Connector 1: |
HDMI Port |
| Connector 2: |
HDMI Port |
| Application: |
Projector,Blu-Ray DVD, Computer,Redmere HDMI Cable |
| Material: |
Copper |
| Interface Type: |
HDMI |
| Feature: |
Explosion-proof |
| Power Cable Type: |
Two-pin |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Pin: |
19pin |
| Color: |
Black,Black |
Product Description
China professional manufacturer offering hdmi cable with nylon mesh
Specifications
Displayport to hdmi cable
Displayport male to hdmi male, Support the video&audio Bandwidth up to 10.8Gpbs
AVA Cables is a leading manufacturer of displayport cable, displayport to hdmi cable, displayport to vga, displayport to dvi...
DP002 is the cable of displayport male to hdmi male, we do also supply displayport male to displayport femal and displayport female to displayport female and the adapter of displayport to dvi, displayport to hdmi and displayport to vga...
The Video Electronics Standards Association (VESA) declare the final standard edition of the DisplayPort connector at present: As the inheritor of the DVI, DisplayPort will intensify the high definition audio signal's transmission while transferring the video signal.
What's more it supports the higher resolution and the refresh rate.
DisplayPort supports the one lane, one direction, four-line connection, and it supports the data transmission rate up to 10.8Gbps which is enough to transmitter the uncompressed audio and video signal.
At the same time, it also supports 1Mbps' bidirectional auxiliary channel for equipment control, Additional, it supports 8-bit deep color and 10-bit deep color.
It applies the micro-packetised format when data transmission.
Specification:
1. Support DisplayPort connector
2. Support 8-bit &10-bit Deep Color
3. Support the video&audio Bandwidth up to 10.8Gpbs
4. Support the 1Mbps' bidirectional auxiliary channel
5. Support the one lane, one direction, four-line connection
We also produce displayport male to displayport femal, displayport to hdmi, displayport to dvi cable...
| Connector Type: | HDMI male to HDMI male |
| Connector Finish: | Nickel or Gold |
| Length: | Up to 30meters |
| Gauge: | 28AWG |
| # of conductors: | 19Pin |
| Conductor Plating: | Tin |
| Shielding level: | Triple |
| Shielding type: | EMI |
| Ferrite Cores: | Yes |
| HDMI connector Head Measures: | 20 x 11 x 37 |
| HMDI Connector Diameter: | 5.5mm, 7.3mm, 8mm |
| Net Jacket: | No |
| Built-in Equalizer: | No |
| Supported Resolutions: | 480i to 4k x 2k |
| Bandwidth: | up to 340 Mhz (10.2 Gbps) |
| Deep Color: | 10-bit, 12-bit, and 3*16-bit (48-bit RGB or YCbCr) color depths. "x.v.Color™" |
| HDMI Certified: | Yes |
| HDMI Spec: | High Speed HDMI |
| Category 2 Certified: | Yes |
| HDCP Compliant: | Yes |
| CEC Compliant: | Yes |
| ROHS Compliant: | Yes |
| Compatible with all Versions of HDMI: | Yes |
| Supports DVD Audio: | Yes |
| Supports SACD: | Yes |
| Supports TrueHD & DTS-HD: | Yes |
|
|
| UL Specs |
|
| UL File #: | E119932 |
| UL Style #: | 20276 |
| CL2 (In-Wall): | No |
| VW-1: | Yes |
| Voltage Rating: | 30V |
| Temperature Rating: | 80° C |
Shenzhen Nan Ming Electronic Co., Ltd was established in 2008, mainly focuses on the Development, Production and Sales if all kinds of connector cable, Our company adhereing to the service principle"Integrity innovation, Quality businesses, Leading technology, Customer first"
Always pregnant with a grateful heart, actively explore, drawing on the successful experience of modern enterprice, self-reliance in the wire rod market and will build a largerwire manufacturing any system integration suppliers.
In view of the diverse market demand, constantly innovation, has successfully developed a series of products to promote the international market. Our main products include: Nylon Braided cable, Type C USB cable, USB extention Cable, Data Cable, Printe Cable; VGA3+2/3+4/3+5/3+6cable; HDMI TypeA, C, DCable; DVI Cable; RCA; A/V Cable; OTG Cable; Car AUX Cable; iPhone and Computer peripheral cable which widely applied in all kinds of computer, printer, TV, multimedia, communications equipment, high-end electronic equipment, etc.
Our company has a high-precision wire drawing machine, braiding machine, molding machine, stranding machine, twisting machine, testing machine and other production and testing equipment. Strict quality management, professional technical service, RoHS production and perfect management system to make the company's products been widely popular with the market's favor and praise.
