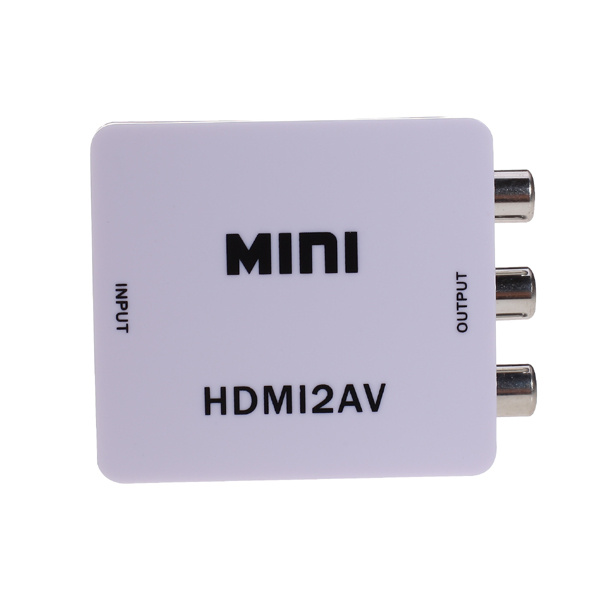

HDMI to AV Converter HD 1080P with Audio Input

Prod Model:	HDMI-AV
Input:	HDMI
Output:	AV/BNC
HDMI Input Format:	480p, 576p, 720p, 1080I, 1080P @ 60Hz
AV Output:	480I, 576I (Optional)
Transmission Distance:	20 Meter
Audio:	Support
Accessory:	USB Cable
Warranty:	1 Year
Delivery Time:	in Stock
Full Carton Quantity:	50PCS

Product Description

Product Features:
1. HDMI high-definition signal through the SCALE DOWN video processing conversion 576I, 480I (PAL / NTSC) video signal output;
2. Automatically identify HDCP, the front HDMI HDMI (HDCP) forced to lift;
3. HDMI digital audio, through the DAC digital chip processing into AUDIO analog stereo;
4. The use of the most advanced video processing technology, the image brightness, contrast and color enhancement;
5. After the conversion of the CVBS effect through the full brightness (unlike the previous generation of HDMI CVBS CVBS signal to a hazy sense)
Products using technical features introduced:
1. No power, MINI volume (small)
Using a new generation of low-power digital chip processing, 24 small uninterrupted work, little heat, stability, work
2. The use of 3D compensation technology; effectively eliminate the fast moving picture jitter and trailing now
4. Scaler video processing technology used: high-definition HDMI signal through Scaler Down into CVBS output
5 using DAC technology will enter the HDMI digital audio signal, through the DAC number of the chip, into analog audio
2, product specifications
1) hardware conversion, plug and play, without any software drivers
2) Compatible with HDMI1.3
3) support NTSC and PAL two standard output

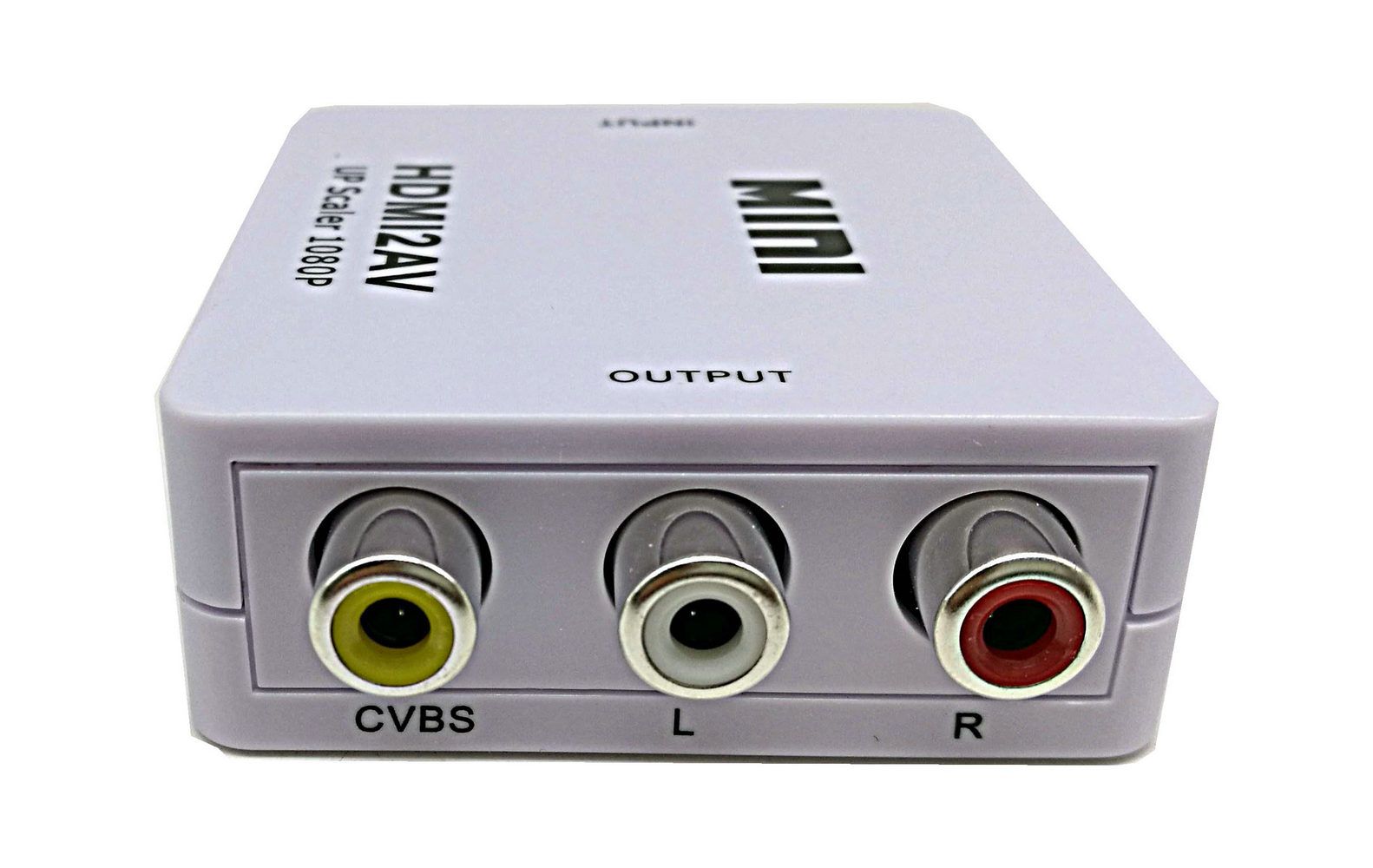

4) a group of HDMI inputs; a set of AV outputs; a set of stereo outputs;

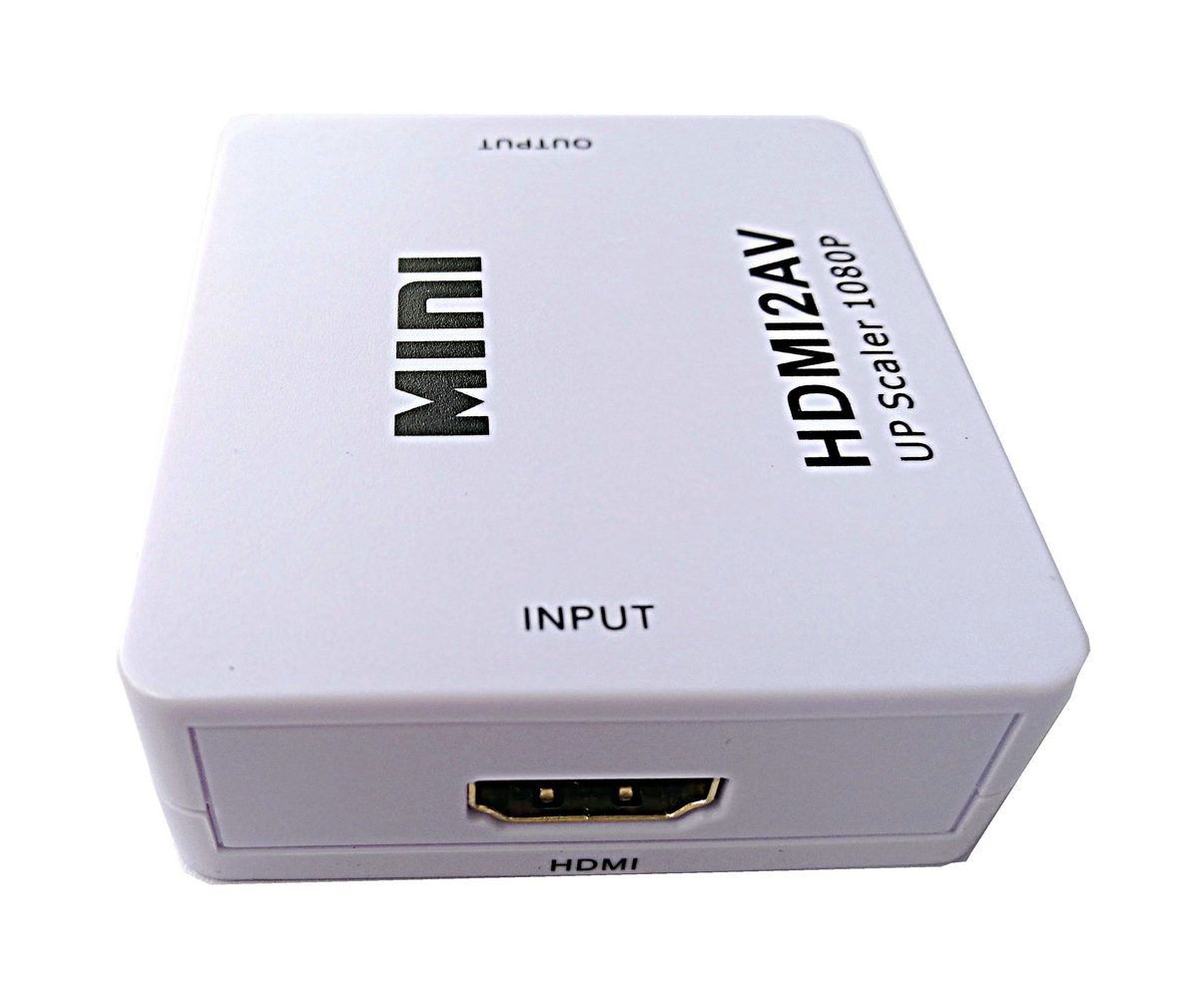

A. Input terminals: -------------- HDMI x 1 input;
B. Video output terminal: ------------ VIDEO x 1 output
C. analog audio output terminal --------- L / R x 1 output
5) HDMI input format: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
At the same time compatible with DVI mode: 800x600,1024x768,1280x720,1280x1024,1920x1080 / @ 60hz and several other models
AV Video output: 480I, 576I (optional)
Audio output: left and right channels (L / R)
Dimensions: 66 (D) x55 (W) x24 (H) mm
