HDMI to DVI+Optical+3.5mm Audio Converter

Name: HDMI to DVI+Optical+3.5mm Audio Converter
Brand: all-electronics-online.com
SKU: 819323845
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

OEM:	Avaliable
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

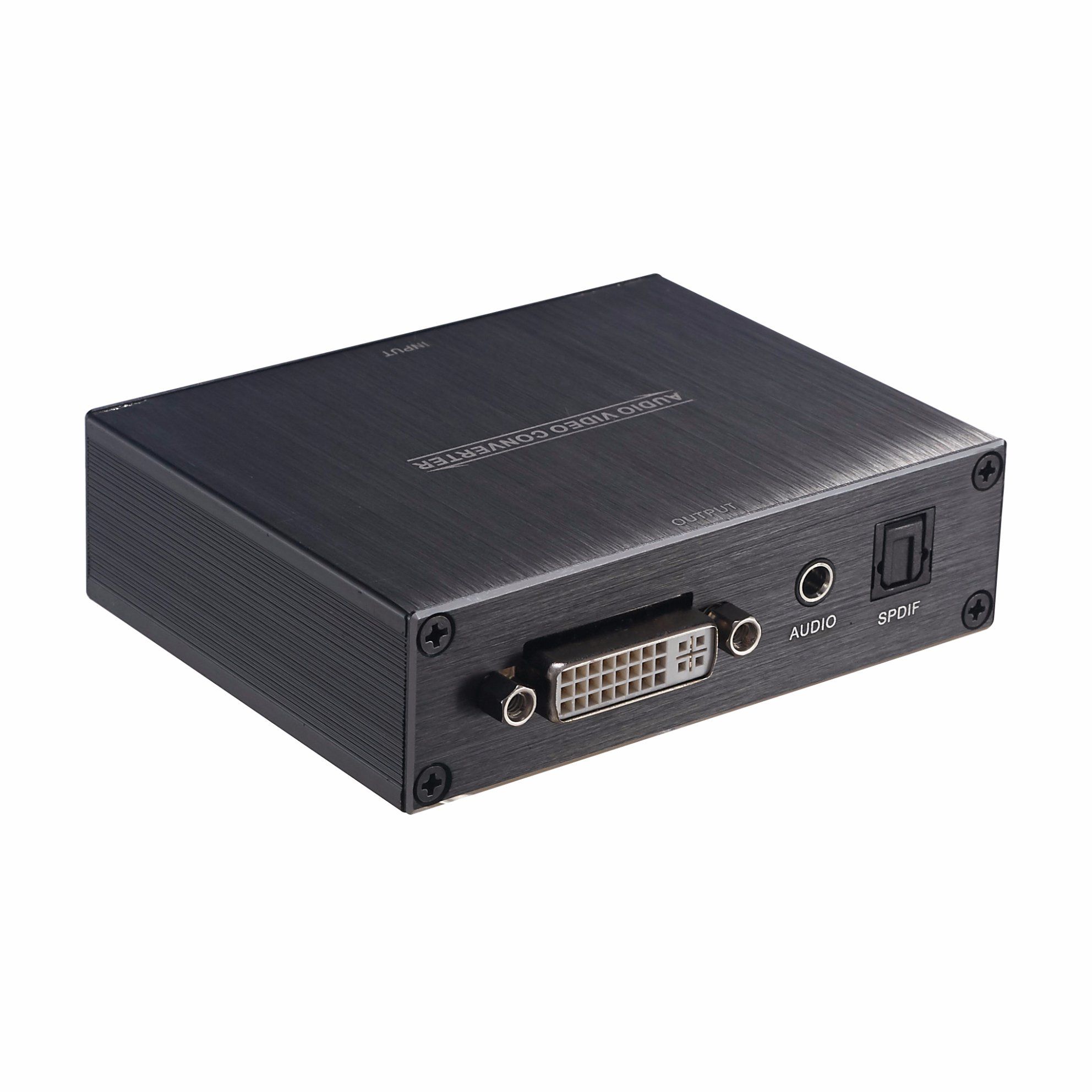

HDMI to DVI+Optical+3.5mm Audio Converter
The HDMI to DVIis a high-definition video converter which convert HDMI digital signal to DVI-D digital signal and (analog or digital) audio signal. When HDMI signals from PS3, XBOX360, Blu-ray DVD, HD set-top boxes, CRT / LED Display ect, you can easily watch HD Video on the normal TV which has no HDMI Interface.

Features:
1. No need to install drivers, portable, flexible, plug and play.
2. The HDMI is compliant with HDMI1.3.
3. High bandwidth capability support 1920x1080@60Hz.

SPECIFICATIONS:
1. Input ports: 1xHDMI.
2. Output ports: 1xDVI-D, 1xOptical, 1x3.5mm Jack.
3. Dimensions(mm):   88(D)x68(W)x26(H)
4.Wight (g):          200
5. Input/Output Resolution:
640x480@60/72/75/85Hz,
800x600@60/72/75/85Hz,1024x768@60/70/75/85Hz,
1152x864@75Hz,1280x720@60Hz,
1280x768@60Hz,1280x800@60Hz,
1280x960@60Hz,1280x1024@60Hz,
1360x768@60Hz,1440x1050@60Hz,
1440x900@60Hz,1680x1050@60Hz,
1600x1200@60Hz,1920x1080@60Hz,

PACKAGE CONTENTS:
1) Main unit (HDMI to DVI Converter) ------------1PCS
2) 5V/1APower Adapter ------------------------------1PCS
3) Product specifications -------------------------1PCS
4) Protection to Fix card -------------------------1PCS

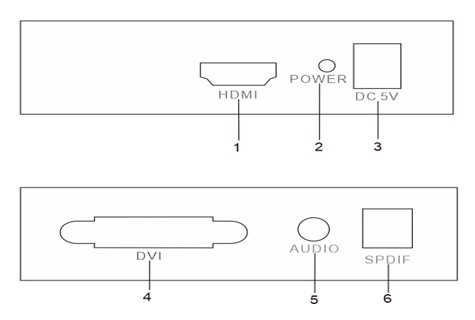

Operation Controls and Functions:

HDMI INPUT Connector: Thisslot is where you connect the HDMI Port source output from DVD, PS3,Set-top Box and Note Book.
Power LED: This red LED illuminate when the device is connected with power supply
DC/5V INPUT Connector: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.
DVI-D OUTPUT Connector: This slot is where you connect the monitor with DVI cable for input source display.
3.5mm phone Connector:Analog audio output port, which can be connected to the headphone or analog audio amplifier.
Optical Connector:Digital audio output port, which can be connected to the digital audio amplifier.
5.1CH/2.0CH audio Switcher: digital 5.1 output and stereo output switcher.

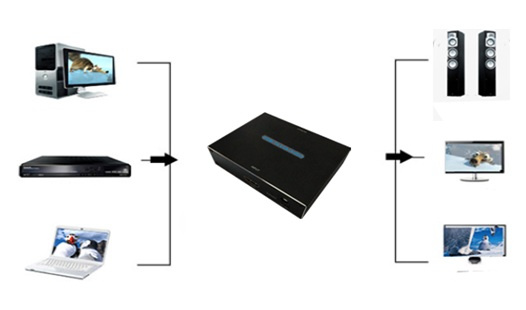

Product schematic diagram:
