HDMI Transmitter and Interface Device IC Integrated Circuit Texas

Name: HDMI Transmitter and Interface Device IC Integrated Circuit Texas
Brand: all-electronics-online.com
SKU: 796865795
Availability: InStock
Rating: 5 (85 reviews)

Price:	US $ 0.41/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPD12S521DBTR

Product Description

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Specialized Interfaces

DESCRIPTION
HDMI Transmitter Port Protection and Interface Device 38-Pin TSSOP T/R

Specifications
EU RoHS Compliant
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Product Category HDMI Transmitter Port Protection and Interface Device
Packaging Tape and Reel
Temperature Grade Industrial
Mounting Surface Mount
Package Height (mm) 1.05(Max)
Package Length (mm) 9.8(Max)
Package Width (mm) 4.5(Max)
PCB changed 38
Standard Package Name SOP
Supplier Package TSSOP
Pin Count 38
Lead Shape Gull-wing

Features
• Single-Chip ESD Solution for High-Definition
Multimedia Interface (HDMI) Driver
• 0.9 pF Capacitance for High-Speed Transition
Minimized Differential Signaling (TMDS) Lines
• 0.05-pF Matching Capacitance Between the
Differential Signal Pair
• Integrated Level Shifting for the Control Lines
• ±8-kV Contact ESD Protection on
External Lines

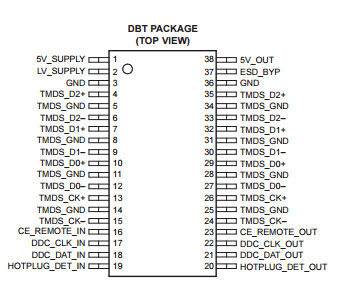

• 38-Pin Thin Shrink Small-Outline Package
(TSSOP) Provides Seamless Layout Option
With HDMI Connector
• Backdrive Protection
• Lead-Free Package
• On-Chip Current Regulator With 55-mA
Current Output

APPLICATIONS
• PCs
• Consumer Electronics
• Set-Top Boxes
• DVDRW Players
